A quick learner from Raleigh, NC says:
December 30, 2021
Hello,
I need to replace the coil balance assembly, pivot bar and pivot shoe for Simonton window top and bottom.
I have attached pictures of the parts and window numbers.
I have no idea what the number is on the coils but it appears to be double coils.
Anne
Thumbnail of the uploaded file named window frame and sash left side.jpg
Thumbnail of the uploaded file named window frame right side.jpg
Thumbnail of the uploaded file named #3 back badroom - top.jpg

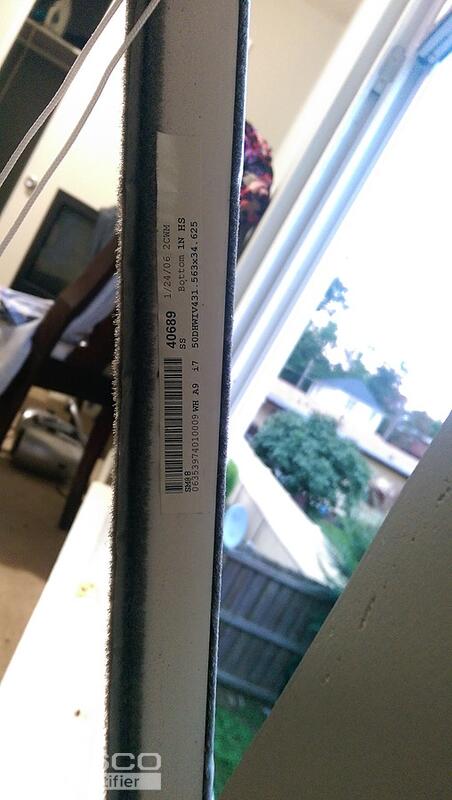

Thumbnail of the uploaded file named bed bottom.jpg
Thumbnail of the uploaded file named springs.jpg
Profile picture of Casey
Casey from SWISCO responded:
December 31, 2021

Hello,

Take a look at the video below that shows the parts we recommend and the replacement process for your Simonton coil balance. If you're not sure what strength option you need for the replacement coils, you'll need to weigh your window sash and divide the weight by the number of coils in the window. Thank you!
A quick learner from Raleigh, NC says:
January 2, 2022
Thank you, I could not find screw parts for pivot bar, screw coil onto pivot shoe and spring cover that screws to the window frame.
Profile picture of Casey
Casey from SWISCO responded:
January 4, 2022

Hello,

The coil of the new balance system anchors to the pivot shoe without the use of a screw, as shown in the installation video. You can reuse your original screw to install the new coil housing and you may be able to reuse the original screws for your pivot bar as well. If not, see the 33-074 related on the 26-083 product page. Thank you!
