Need to replace the cam for my pivot shoes

Start a new Discussion

Home Owner from altoona pa

Nov 22, 2013 6:13 pm

I have a grandview double hung window and I am looking for replacement cams inside the pivot shoe. Can you help

5 Replies

Tom from SWISCO

Nov 25, 2013 10:23 am

Thank you for posting. Unfortunately, many cams are not available separately. There is a good chance you will have to replace the pivot shoe.

I'd be happy to help you find a good match, but I am not sure what you have. Can you remove an undamaged pivot shoe from the window and take a few pictures of it by itself? I will also need to know its thickness and width. Check out the video below to see how you can remove your pivot shoe.

Home Owner from Altoona PA

Nov 27, 2013 2:56 pm

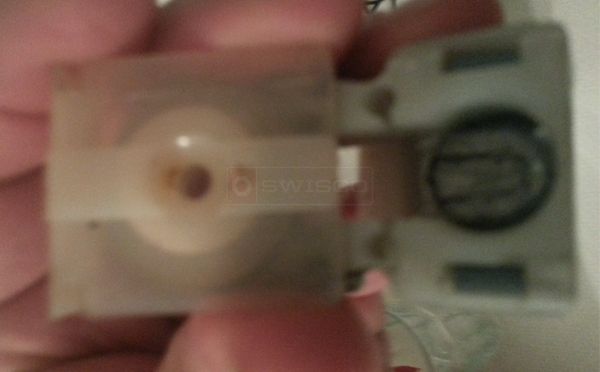

I have pictures and sizing for shoes I need to replace. The top part mounts at half way point and the bottom part mounts at bottom. Held together by looks like a retractable spring. What is bad is where the window sets in the shoe. That part is broken. See pictures.

Home Owner from Altoona PA

Nov 27, 2013 3:04 pm

Sorry I think I messed this up.
Top to bottom 2-7/16"
Wide 1-1/4"
Thick 5/8"

Tom from SWISCO

Dec 2, 2013 2:14 pm

Thank you for the picture, that's a huge help. I would start by looking at our 15-175 shoe. Is this a match?
