pivot shoes for tilt windows

A home owner from South Carolina says:
November 19, 2019
I am looking to order part number 15-134 0r 15-212 to replaced the pivot shoes for my tilt windows but I'm not sure the size of the bushing. Please email me which one of this part number can I use. Thanks

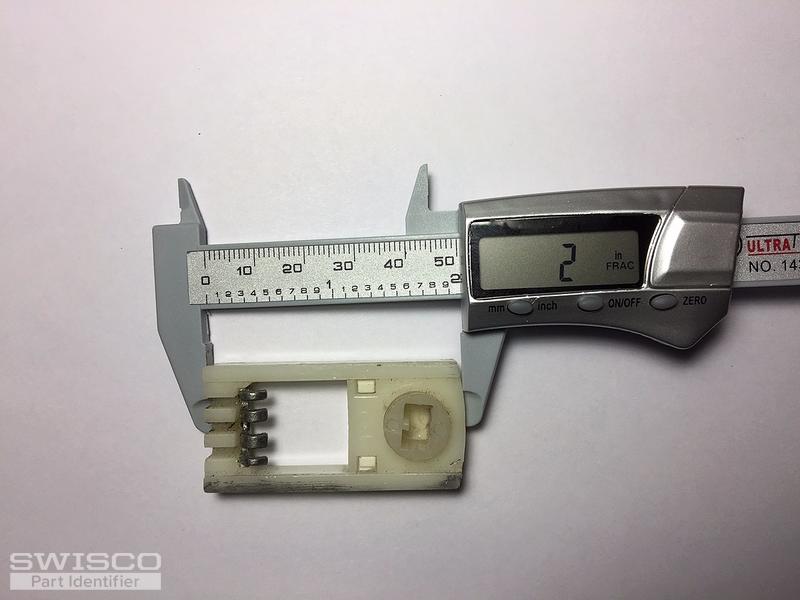

Thumbnail of the uploaded file named IMG_8119.JPG

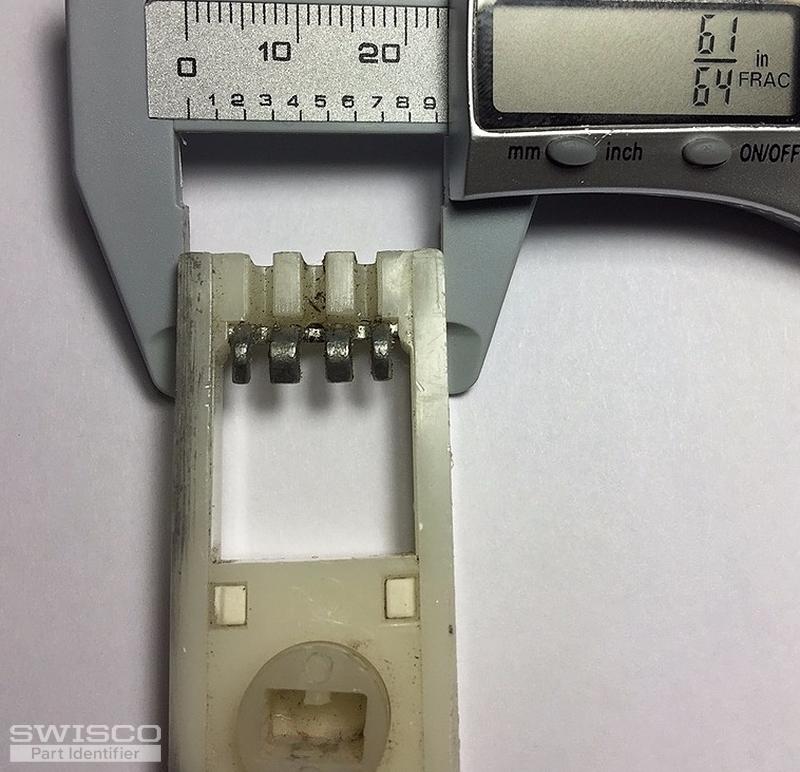

Thumbnail of the uploaded file named IMG_8120.JPG

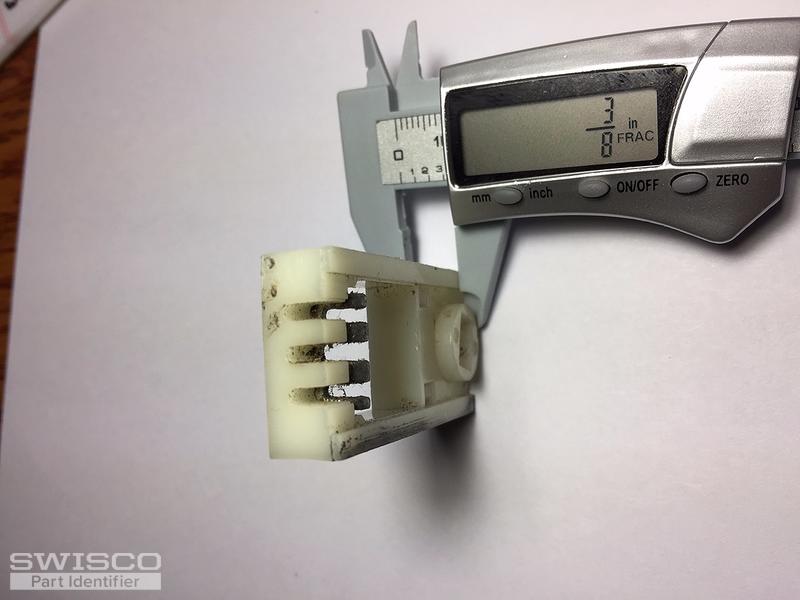

Thumbnail of the uploaded file named IMG_8121.JPG

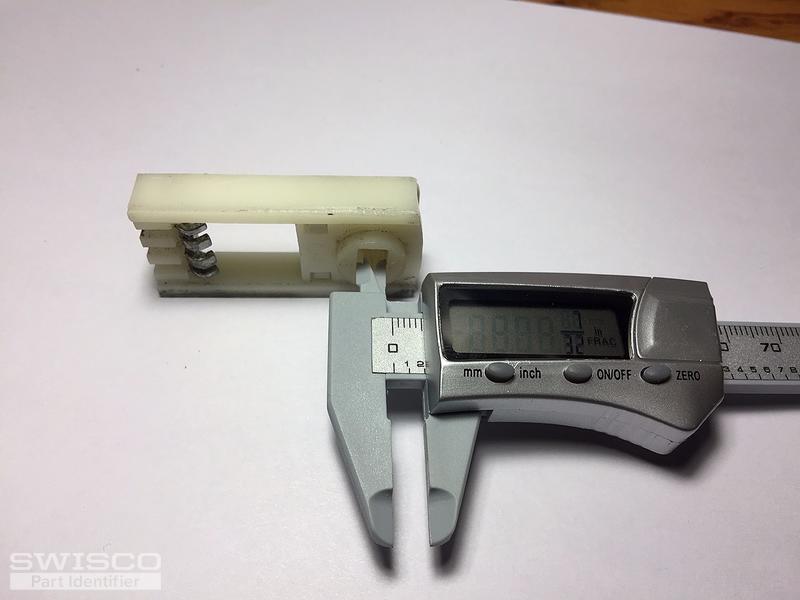

Thumbnail of the uploaded file named IMG_8122.JPG

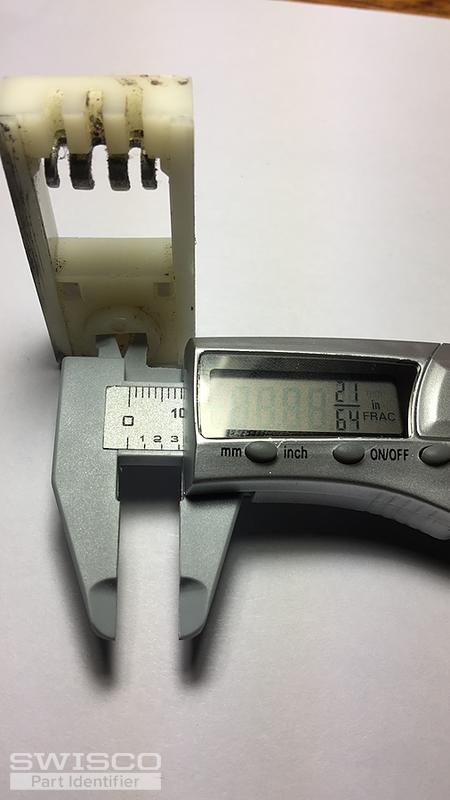

Thumbnail of the uploaded file named IMG_8124.PNG
Profile picture of Tom
Tom from SWISCO responded:
November 20, 2019

Hello,

We have recommended the 15-212 pivot shoe to customers with your shoe in the past. The 15-134 is similar but the cam supports a 3/16" by 1/4" pivot bar, which is less common than the standard 3/16" by 5/16" supported by the 15-212 shoe's cam. Thank you!
Pivot Lock Shoe, 3/8" Thick
Pivot Lock Shoe, 3/8" Thick
15-134
$2.79
Pivot Shoe, 3/8" Thick
Pivot Shoe, 3/8" Thick
15-212
$2.93
