pivot shoes and internal latches for tilt window

Question

An old tilt window needs a lot of the little parts replaced. We know the spiral balance we need (red tip 26"), but aren't sure about the pivot shoes and internal latches.

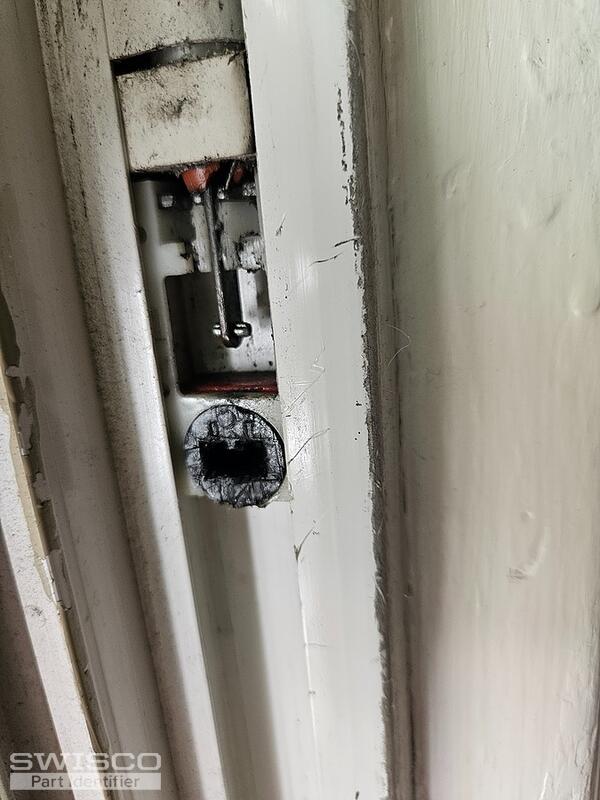

The Pivot Shoes we have (see photo) have a gray/black plug/disk thing but seems to be 1/2". Are we best off ordering the black 5/8" or the green 1/2"?

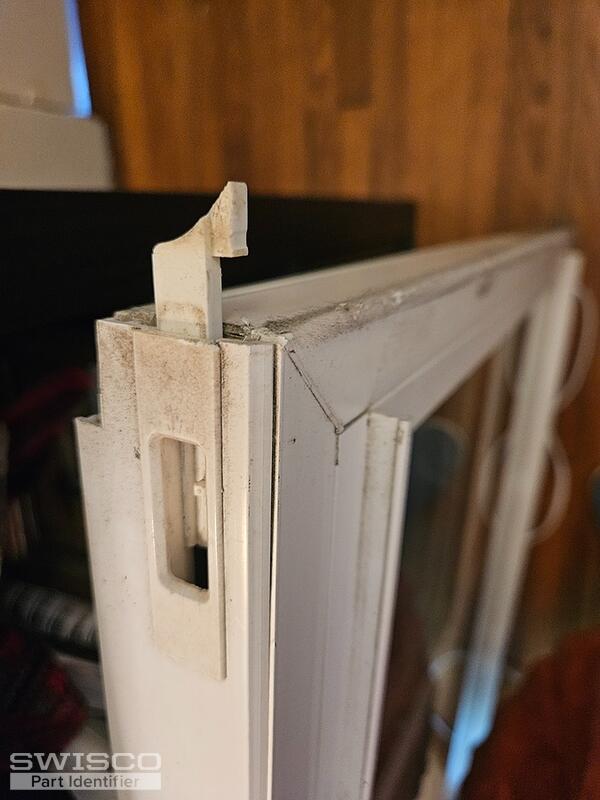

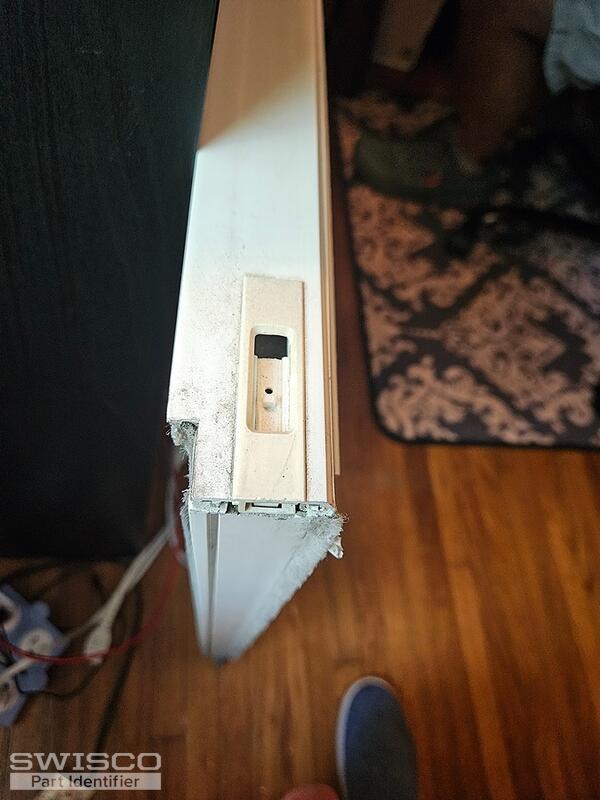

We are totally stuck for the Internal Latches. Please see the pictures attached. They are 2 5/8" long, 11/16" wide and 7/16" deep. The Right one has a "14" and a "60" on the back; the Left has "11" and "59." There is a clip/tab thing on the back too, which begins 7/16" from the edge and ends 1"16" from it. The actual tab is 1/4" wide.

Emily · Accepted Answer

Thank you for reaching out to us! Our 26-243 and 26-244 come to mind. These don't have the same curved tooth so we can't promise the functionality but they are our best options.

As for the pivot shoe, the 15-121 resembles what you have here. This is 9/16" thick and 1-1/4" wide so we recommend you remove yours from the window track to confirm the specifications align.
