pivot and balance

A handy person from marland says:

March 3, 2023

which is the best replacement for what I have?

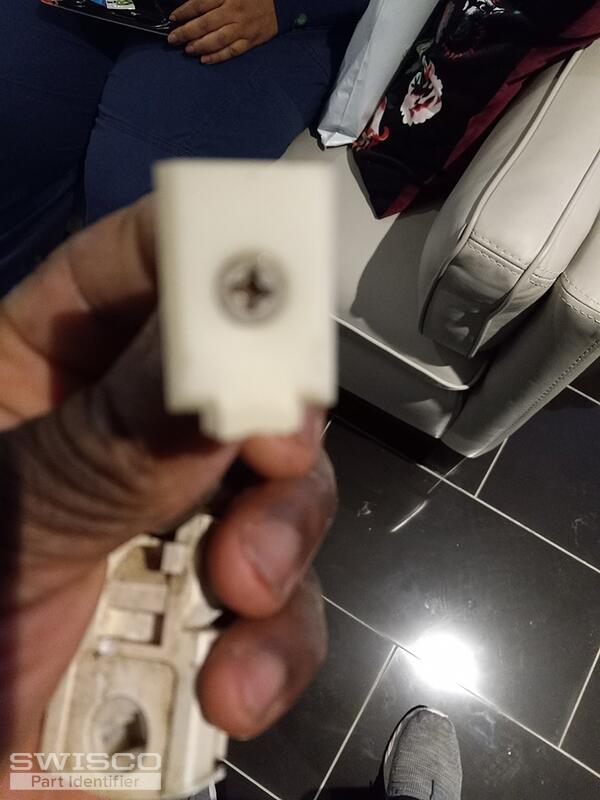

Thumbnail of the uploaded file named 20230302_191807.jpg

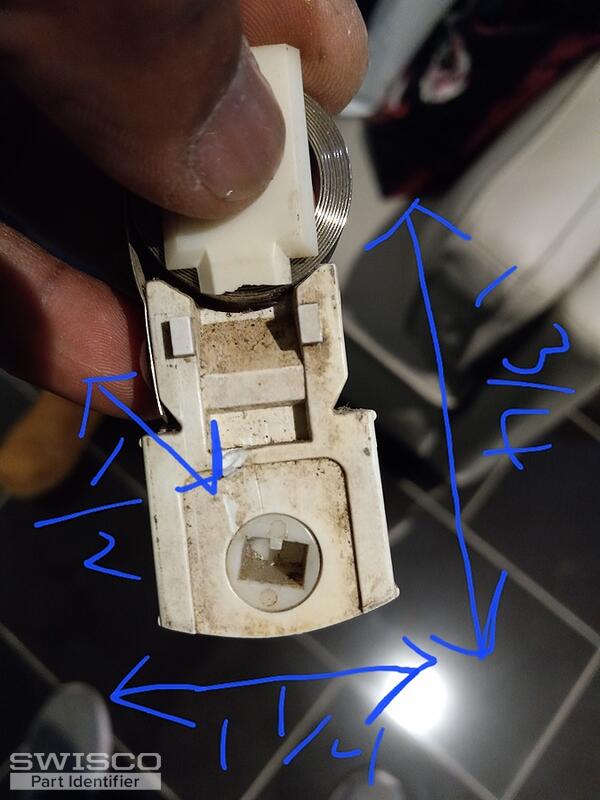

Thumbnail of the uploaded file named 20230302_192033.jpg

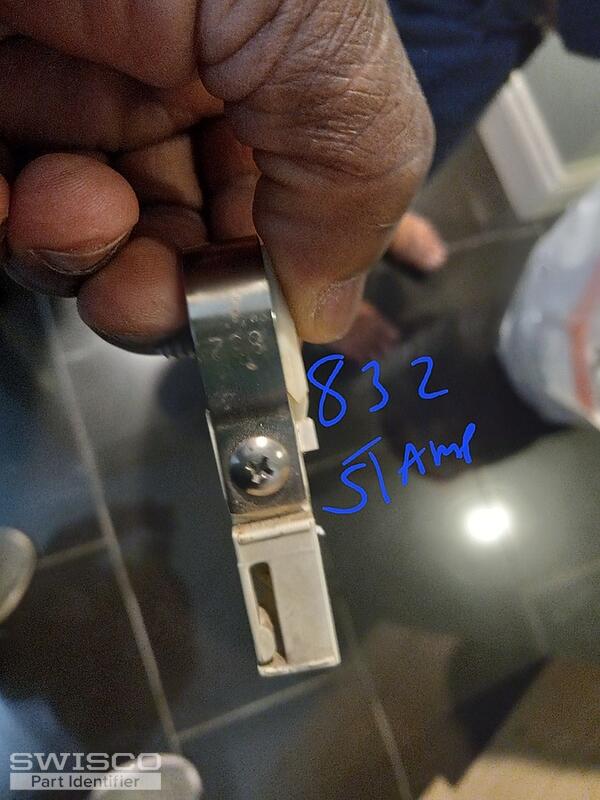

Thumbnail of the uploaded file named 20230302_193309.jpg

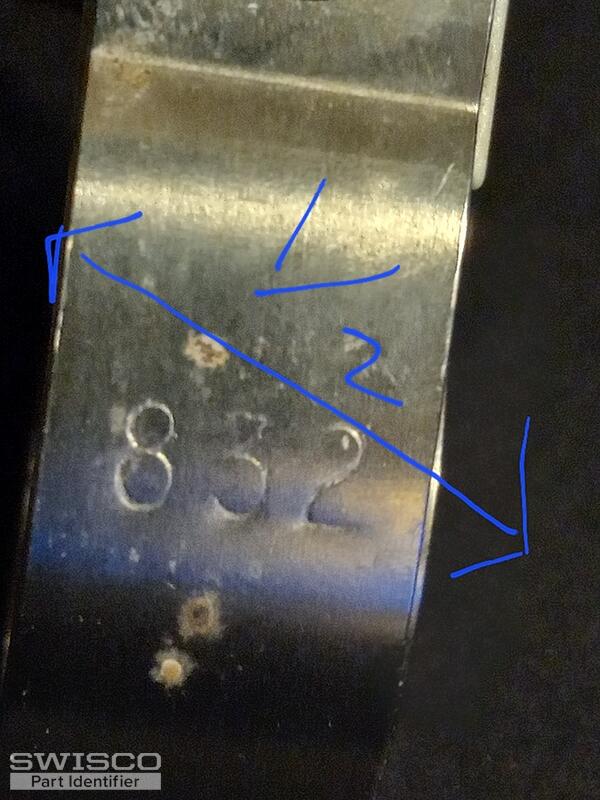

Thumbnail of the uploaded file named 20230303_172822.jpg

Casey from SWISCO responded:

March 6, 2023

Hello,

It looks like you have an old-style Metal Industries coil balance assembly. The pivot shoe would be our 15-180. If you need new coil springs as well, you can use the S190-840 based on the 8 stamped on your original coil. See the related parts shown on this page and let us know if you need anything else. Thanks for posting.

A handy person from Maryland says:

March 6, 2023

thanks alot!

A handy person from maryland says:

March 6, 2023

thanks, a lot I placed an order!
