please help in choosing the weather strip for patio sliding door

A quick learner says:
looking for above part to fix my sliding door
Thumbnail of the uploaded file named 9D0A1AAF-8EC0-4C1D-A0C9-C7B9B0D8C5F1.jpeg
Thumbnail of the uploaded file named FBCB8D4F-1C45-4B71-AB17-A3C183C5ABC2.jpeg
Thumbnail of the uploaded file named 4F01D879-F076-4790-904A-35B0ACB097C0.jpeg
Profile picture of Tom
Tom from SWISCO responded:

We may be able to supply something like this, but I can't quite make out what you have from these photos. Can you show me a clear shot of its end profile? The video below will explain what I mean.

A quick learner says:
returning your email response

thanks for your support.

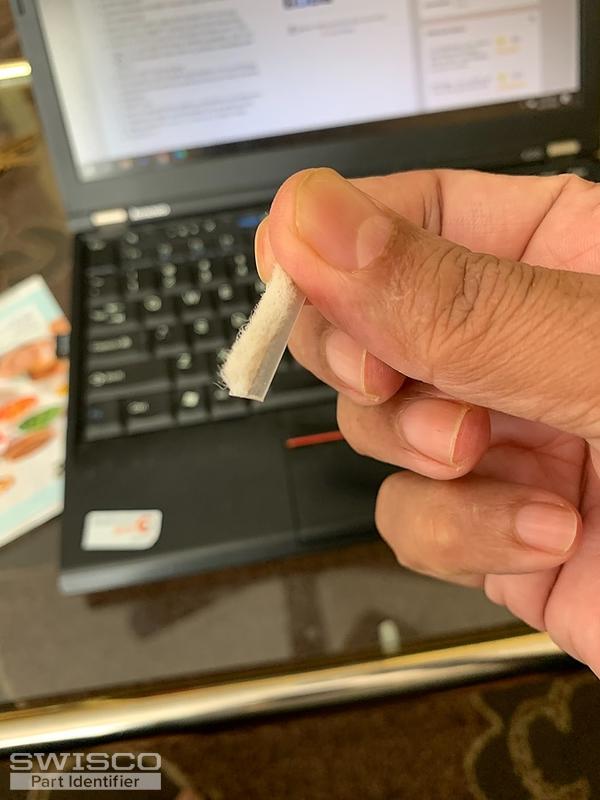

Thumbnail of the uploaded file named 66F931C9-919E-453D-AC36-F93393E45FD0.jpeg

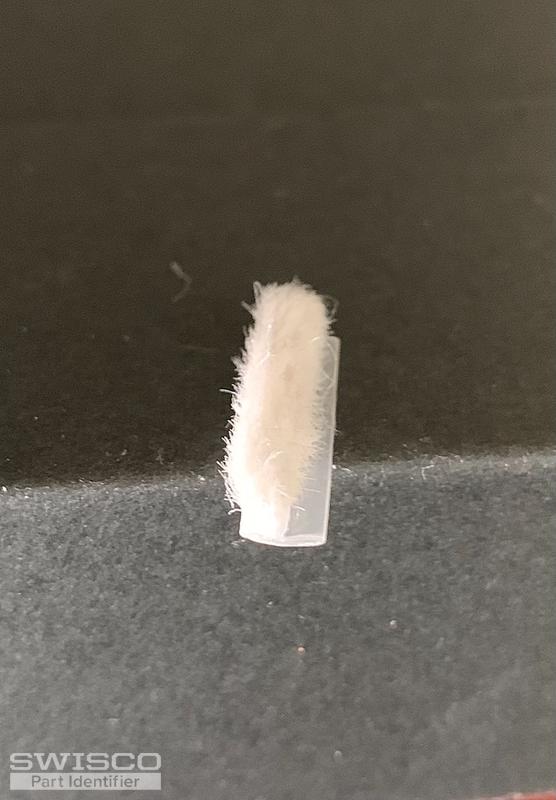

Thumbnail of the uploaded file named 51A847FB-E617-4EF0-B9E6-97EA1845FE6D.jpeg

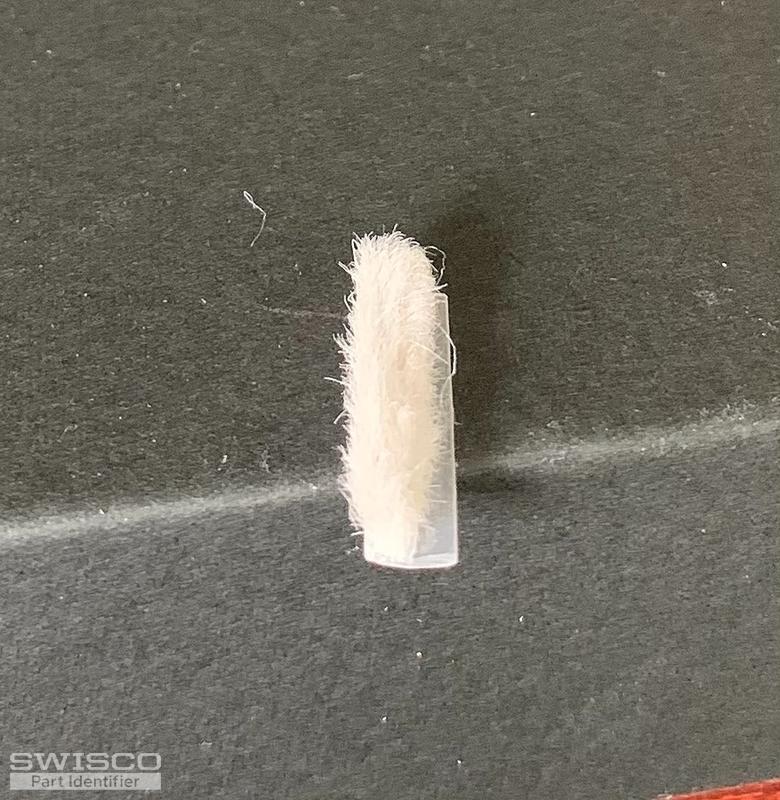

Thumbnail of the uploaded file named F4A73BA8-AE7D-4849-8DC0-C6B18E1DD320.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Thanks for getting back to us. This looks like some kind of wool pile, but without knowing the end profile dimensions I can't say if one of ours will work. You'll need to measure the size of the base and the height of the pile. Note that wool pile dimensions are often very discrete, going into the X/32" range, so be thorough as possible. You can view our selection of wool pile here.

A quick learner says:
Hi

It looks to me as 9/32" profile width.
I tried best angle to capture.

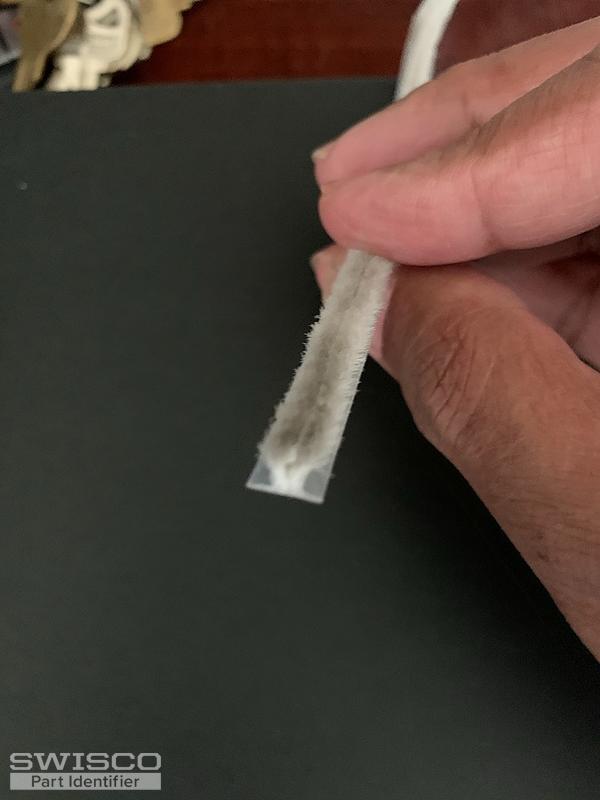

Thumbnail of the uploaded file named 536DF615-2BF2-4068-B807-791129D08FE1.jpeg
Profile picture of Bob
Bob from SWISCO responded:

If the base is indeed 9/32" wide, then this might be either our 58-022 or 58-126. Take a look at both and see what you think.
