please identify parts

Start a new Discussion

Contractor from new jersey

Apr 28, 2014 6:53 am

part numbers on these WEATHER SHIELD casement window operators and related parts

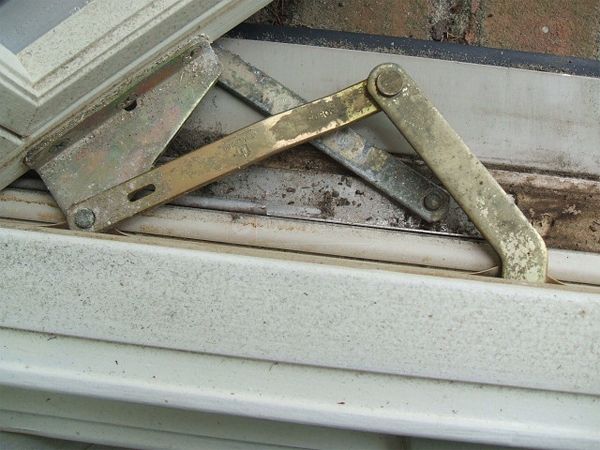

User submitted a photo of a window operator.

4 Replies

Tom from SWISCO

Apr 28, 2014 11:43 am

Can I see a few pictures of the operator base? That is, the part inside the house which connects to the handle? That will give us a better idea of what you have. It would be even better if we could see the operator fully removed from the window. Thanks!

Contractor from new jersey

Apr 28, 2014 2:07 pm

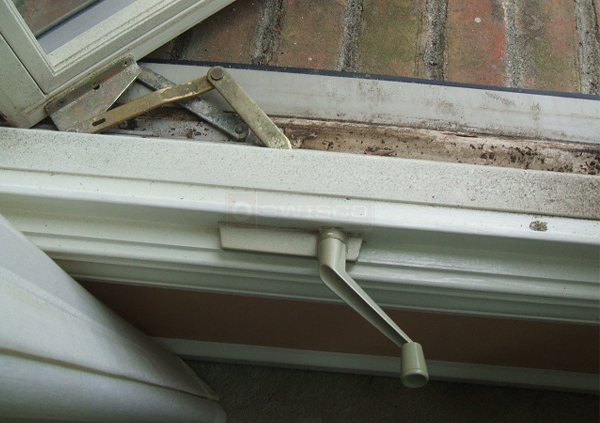

hope this helps

thanks,
jim

Dave Sr. from SWISCO

Apr 30, 2014 10:38 am

Thank you. Take a look at our 39-172 operator. It looks similar to your own hardware with the end clip removed, though I can't be certain. Your best bet is to remove your operator from the window and match it up to the 39-172. See the video below to determine how. Also, you have the older casing on your operator, while the newer casings are more rounded. You might have to retro fit your wood sill stop cover.
