pocket door roller

Start a new Discussion

Quick Learner from San Bernardino, CA

Jul 28, 2013 12:03 pm

need replacement hardware

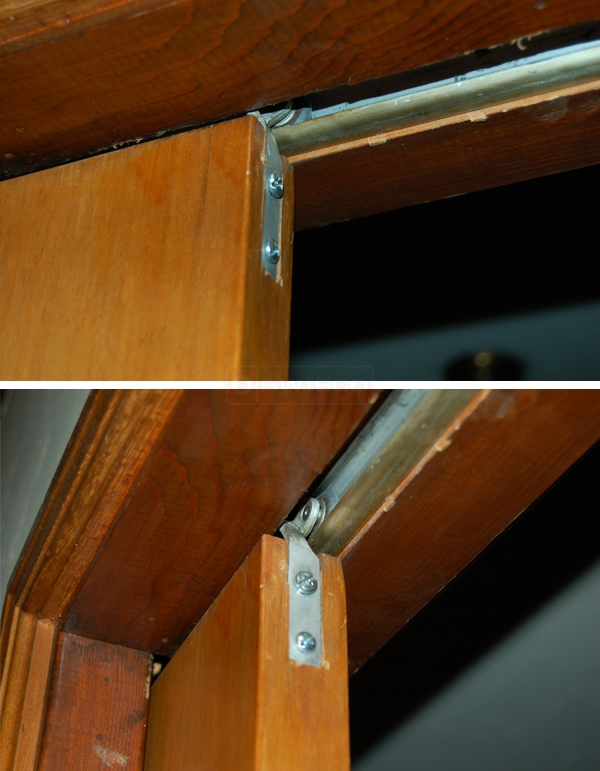

User submitted photos of pocket door hardware.

12 Replies

Tom from SWISCO

Jul 31, 2013 3:11 pm

Thanks for posting! We may have found something similar. However, before we do anything, can you tell me what the diameter of your wheels are? We might have something in 3/4" or 7/8" available.

Quick Learner

Aug 2, 2013 7:05 pm

I actually removed the roller from the door so I could get a better picture. Although it mat appear to be fine, the bearings are wiped out. The wheel measures 7/8" across. I just found some writing on the part. It reads Nordahl Burbank, CA Don't know iof this is helpful or not.

User submitted photos of a pocket door roller.

Tom from SWISCO

Aug 6, 2013 12:54 pm

Thank you for the additional information and images. We are currently working on a possible replacement and will let you know as soon as it is online and available to view.

Casey from SWISCO

Aug 23, 2013 2:42 pm

Please see new SWISCO product code 23-175, pocket door roller pair, and compare it to your original rollers.

Quick Learner from San Bernardino, CA

Aug 23, 2013 3:09 pm

Thanks, Donna. Looks like they may work. I ordered them and will give them a try. Thanks to all of you who helped on this.

George

Home Owner from Florida

Jan 28, 2014 9:11 pm

I live in a house built in 1958 that has a pocket door. My front roller on the "face" of the door went out (plastic wheel broke apart and ball bearings went everywhere)! After looking at your site, I took the bad roller off and it was stamped with "NORDAHL BURBANK CALIF" like the post above from San Bernadino, CA. I ordered the pocket door roller pair 7/8" (23-175) and it fits like a glove. My pocket door works again.

Your site was very helpful. Thank you very much.

Quick Learner from California

Apr 22, 2016 8:10 pm

Thanks folks! I have the same issue. So glad I found this page and can now order the SWISCO part.

Quick Learner from Fort Lauderdale

Oct 18, 2023 1:12 pm

Will you be making any more of this pocket door roller? Like everybody else, the current replacement parts for older model pocket doors is getting hard to find.

Please let me know if you will be doing another production of this product.

Thank you!

Edward

Tom from SWISCO

Oct 18, 2023 2:12 pm

Hello, Edward. We unfortunately do not manufacture or produce parts of any kind. We're just a third party supplier of replacement hardware. If a product is not available on the market, we can't provide it. That includes pocket door parts.

I am sorry for the inconveenice.

Quick Learner from Bartlesville ok

Apr 22, 2024 12:52 am

I also am working on a house built in 1958. One of the pocket doors is gone along with the hardware. I had one of the others out to take 3/8" off the bottom. There roller system is made uo of a double roller 7/8" that rides in a J channel and is mounted to a bracket on top of the door via a bolt that is pressed in the roller assembly and a nut on the door mounted assembly. I tried some cheap made 3/4" roller that mounted the same way that I found but they won't stay in the track. The door is a lightweight 30x80 Luan hollow core. Do you think those 23-175's will work

Tom from SWISCO

Apr 22, 2024 9:09 am

I'm afraid I don't know if our 23-175 would work. It would depend entirely on how the old rollers mounted to the door and fit in the track. Based on your description, it doesn't sound like your doors were meant to use a part like our 23-175. It wouldn't be possible for me to predict any potential complications you might run into, assuming the door is able to install with the new rollers to begin with.

I'm sorry that I can't give you a clearer answer on these. I'd be happy to give you a better analysis, but I would need photos of the old setup to start.

Ultimately, pocket doors just aren't made anymore, and so the supply of available parts is dwindling quite rapidly. The 23-175 is one of the few pocket door rollers still in development, but that doesn't mean it works on every door. Just something to keep in mind as you move forward with this project.
