Product Code 95-266 would appear to be a good match for the corner in the attached photo. The measurements provided online are similar to the measurements I obtained from the pictured corner. Could you please confirm this or another product that would work. Thank you for your time
product code 95-266 inquiry
Quick Learner
Jul 29, 2025 11:52 am

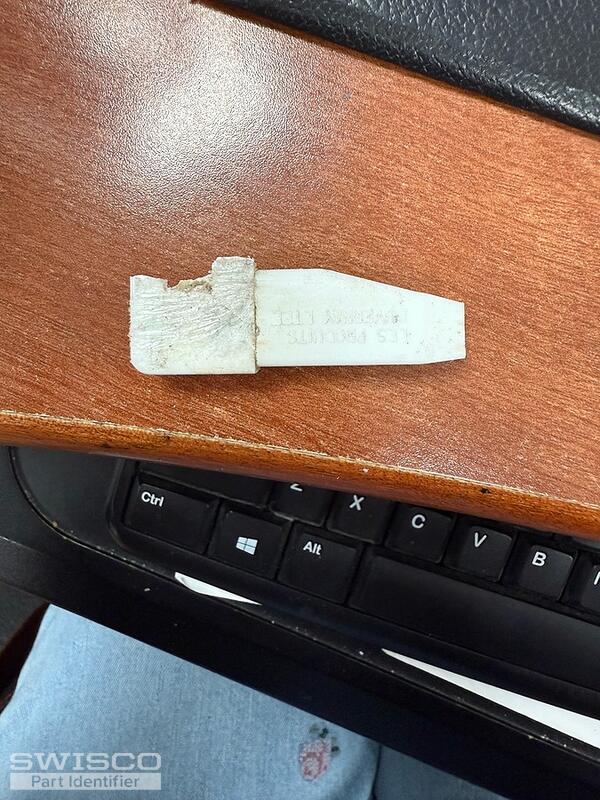

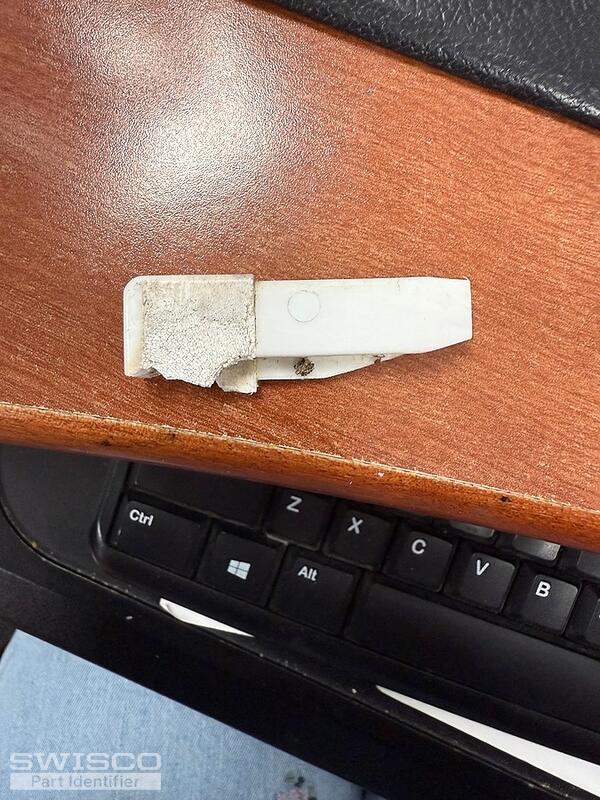

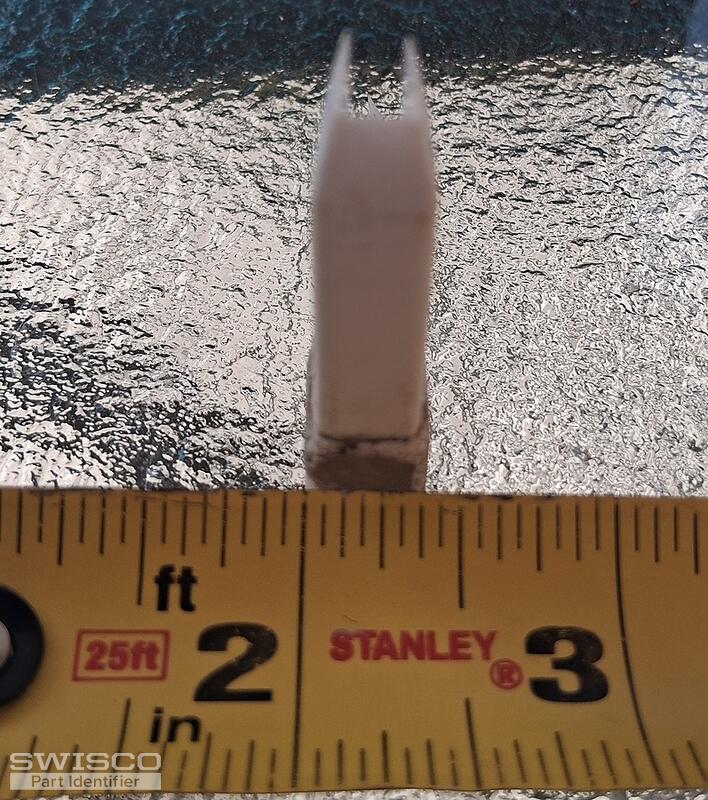

4 user uploaded images
6 Replies
Casey from SWISCO
Aug 1, 2025 3:42 pm
Hello,
Unforutnately, we can't make out exact dimensions from photos, but as long as the frame that your corner installs in measures 3/8" thick, I agree that the 95-266 would be a good replacement option. Thanks for posting!
Dimensions for 95-266
Purchasing Agent from Concord NH
Sep 30, 2025 8:25 am
I bought this corner except the one I need is just a bit larger and wider. I am still trying to find one.
Casey from SWISCO
Sep 30, 2025 8:51 am
In that case, we'll need you to write out your exact dimensions compared to our corner and the thickness of the frame opening where it installs to confirm if a closer match is available.
Purchasing Agent from Concord NH
Oct 1, 2025 2:12 pm
The broken corner is 3" long the square is 11/16" x 11/16" with 7/16" thickness. The "legs" of the corner are 3/8"

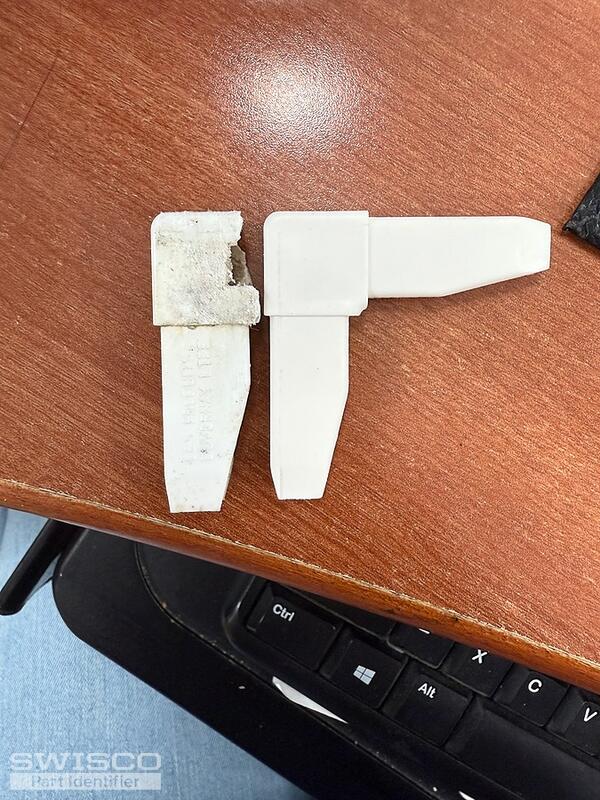

3 user uploaded images
Paul from SWISCO
Oct 2, 2025 9:04 am
We offer the 95-052 white corner key for 7/16" thick metal. The square is 11/16" X 11/16" with a 7/16" thickness. The leg is 3/8" thick. The short leg height is 7/16", and the taller side is 1/2". The taller side slides into the lip of the screen frame that has the roll end for the screen spline. Take a look and see if this might be a better fit.
Alternate image for 95-052
