project to replace the tracks and pins - Sunset Towers Vancouver

Question

Hi friends,

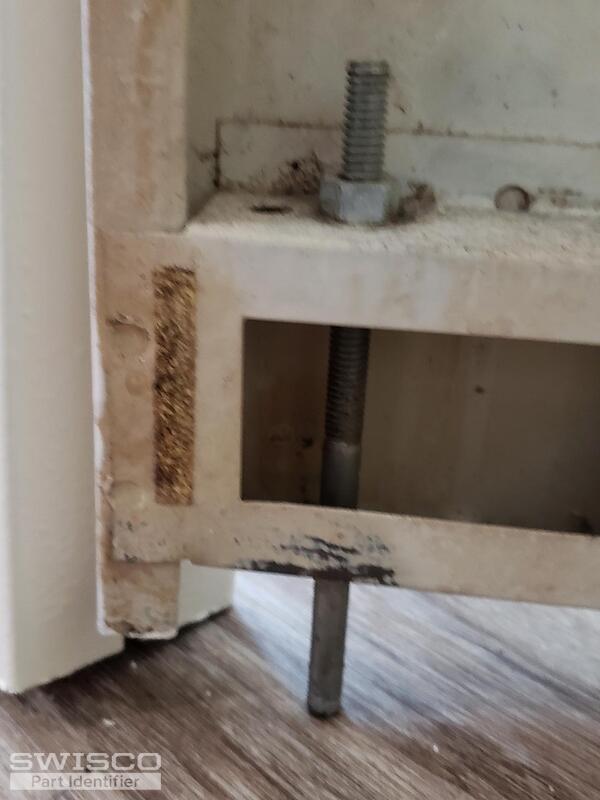

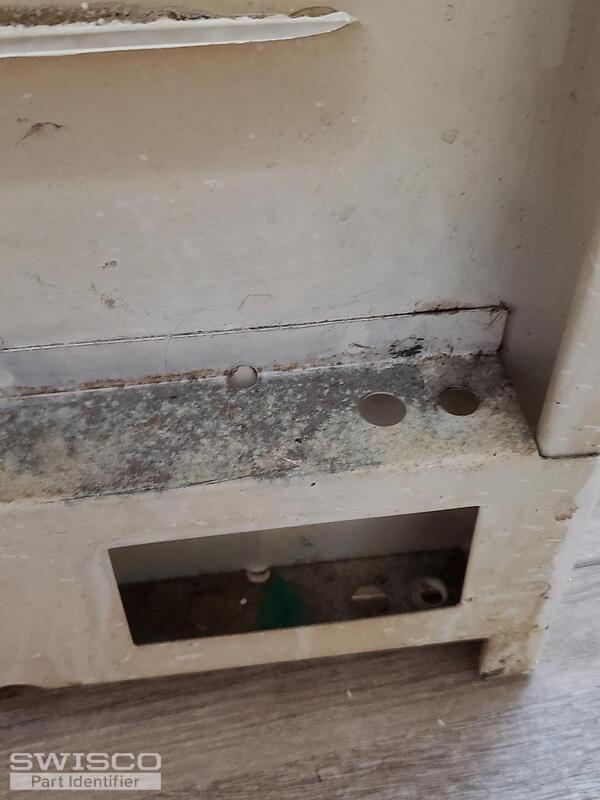

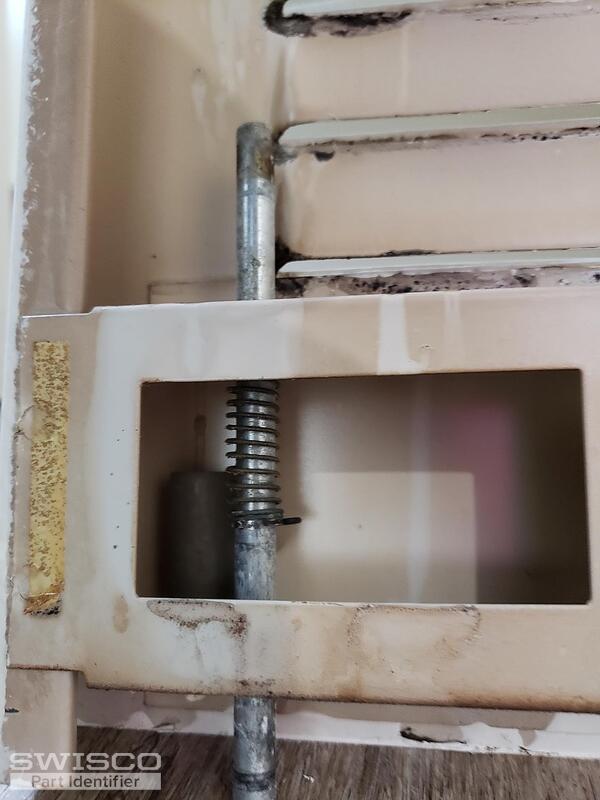

We are facing difficult times with our metal doors in two of our buildings. We are a non profit housing organization called MTR - More Than a Roof Housing Society and we wanna replace our tracks and pins (not the metal doors) by new ones, probably different ones... Today we use parts like 21-058, 21-049, and related track, but I'm wondering if is possible replace the tracks for new ones like 21-007 and related tracks.

Please let me know what do you think about it.

Regards

Renato

Paul · Accepted Answer

I've known customers who have used our 21-401, 21-402, 21-403, or 21-404 tracks, along with our 21-002 threaded bottom pivot pin and 21-007 spring loaded pins. You'd use one 21-002 and three 21-007's.

You might need some 21-150 and 21-151 nylinders on the door holes for the pins to fit snugly. You will also need 21-277 rubber bumpers to help keep the doors closed.

Look these parts over and let me know what you think.
