pull out track draws from cabinets Home crest installed new in 2005 length 23 inches

Home Owner from Paramus, New Jersey

Jan 11, 2017 2:35 pm

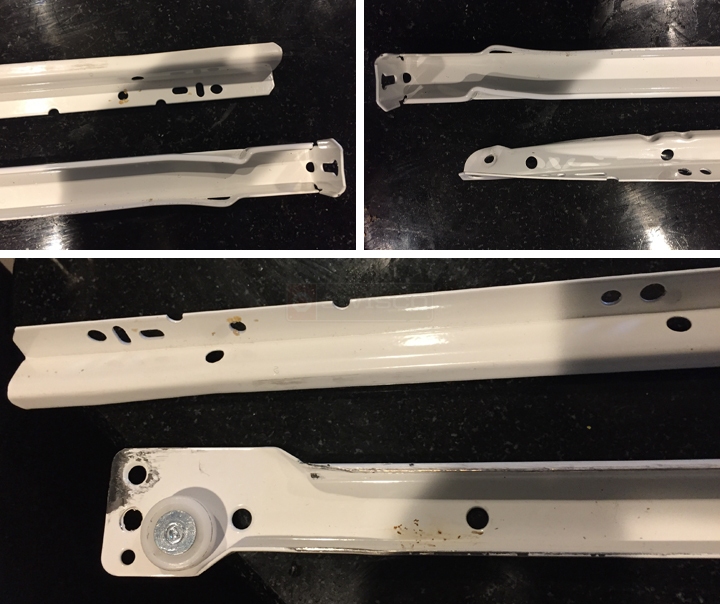

please HELP I need 6 sets of tracks.all my tacks are old and need to be replaced the measurements are 23 inches in length. thank you

4 Replies

Dave Sr. from SWISCO

Jan 18, 2017 11:25 am

I'm inclined to suggest the 22" 32-061 drawer track, along with either the 32-018 or 32-140 rear sockets. Looking at your tracks it appears the the back of your screwed directly into the back of the cabinet. What do you think?

Home Owner from Paramus, NJ

Jan 21, 2017 12:18 pm

It does not appear that way, it looks as though there is some sort of adhesive because of the panel that is exposed on the opposite side.

I will attach 2 pictures of the back of the cabinet to show you the two adhesive pieces.

Thank you

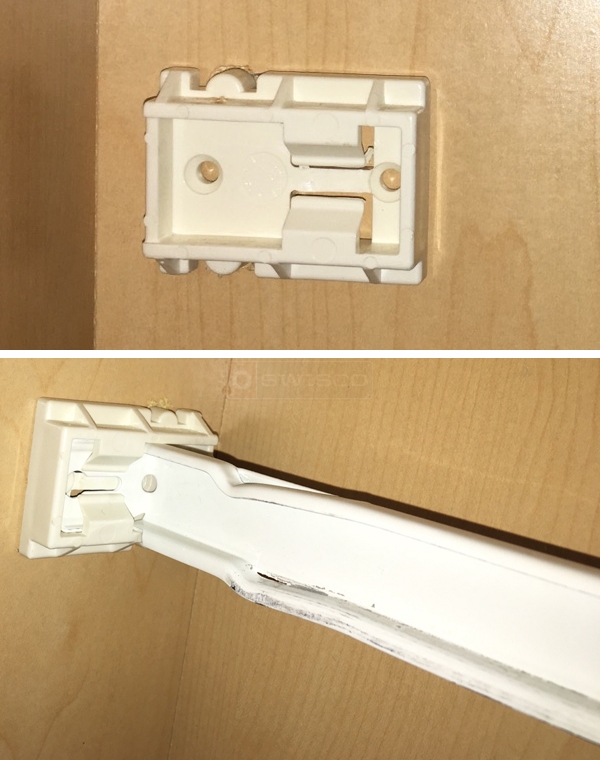

User submitted photos of drawer hardware.

Paul from SWISCO

Jan 25, 2017 9:00 am

Ah, I see. Our 32-061 track won't fit in your glued on rear drawer guides. You would need to replace them with something like the 32-012, which would also need to be glued to the back of your cabinets. Our track is only 22" and you need to make up an inch.
