Quick Learner from Maryland

Aug 18, 2015 8:41 pm

can you tell me if this is the same as the one on your site 32-012? Measurements are 2 3/32 x 1 3/4" which is different than your product. Thank you.

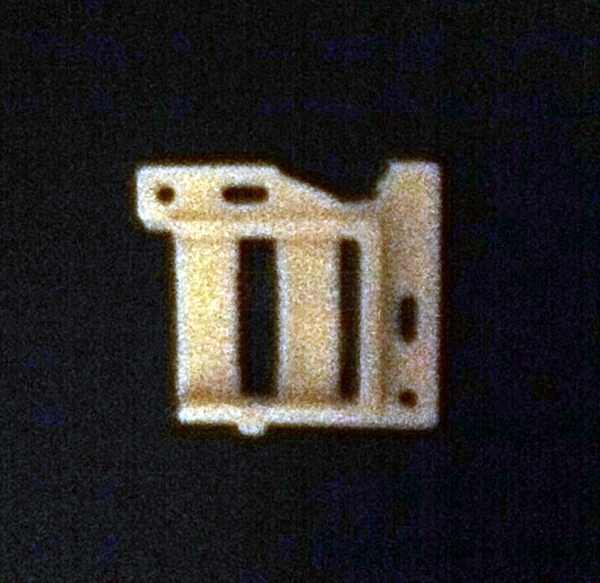

User submitted a photo of drawer hardware.

6 Replies

Tom from SWISCO

Aug 19, 2015 11:38 am

This certainly looks like our 32-012, yes, but it's hard to make out. What are you measuring, exactly? The base or the socket itself? The most important measurements are the opening in the socket, since this is what accommodates the track. Could we also see some clearer pictures from a few different angles?

Quick Learner from California, Md

Aug 19, 2015 5:58 pm

I'm measuring total width and length.
Mary

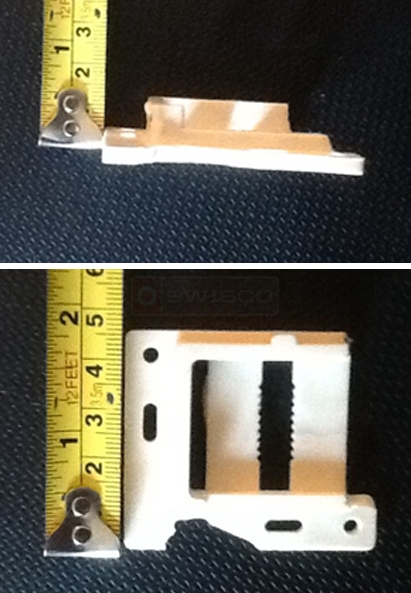

User submitted photo of their drawer socket.

Tom from SWISCO

Aug 20, 2015 10:40 am

Thanks for the clearer pictures, Mary. Unfortunately, it seems like you're just measuring the base. I cannot identify what socket you have by only seeing the base. You need to compare the dimensions of the socket to our hardware in order to confirm what you have. See my last post for exactly what you need to measure.

Quick Learner from California md

Aug 20, 2015 1:25 pm

Here is a pic of the opposite side in need of repair.

User submitted photo of their drawer track.

Tom from SWISCO

Aug 20, 2015 2:02 pm

I'm sorry, I cannot make out anything in that picture.

You still have not mentioned if the size of the socket for the 32-012 is the same as your own socket. This is the most important detail. Ignore the size of the base and concentrate only on the socket itself. If you are having trouble seeing our dimensions on the 32-012 store page, I will post them here for your convenience.

Profile diagram of 32-012
