October 21, 2019
I have no photos of bead removed. relevant measurements are:
Inside glass (to edge of frame):
top panel: 33 1/4 w x 27 h
bottom panel: 32 w x 27 h
inside frame to frame - 34 1/4 wide
outside glazing strips"
top panel: 28 h x 34 1/4 w
bottom panel: 27 1/2 h x 33 w
visible lip on glaring strip: 1/2
Window is on second story of home built in 1992.
October 21, 2019

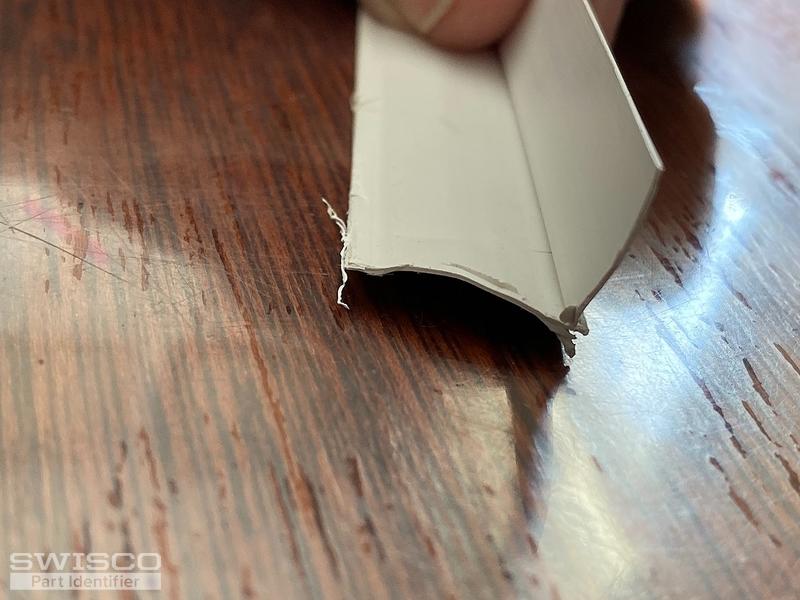

I was able to get a piece of the broken glazing bead out from the side of the bottom panel, and have attached photos of that section. The side over the window glass is 1/2 inch and the side the goes between the glass the frame is 3/4 inch.
