replace the window crank operator for an old steel window

A landlord from Phoenix AZ says:
November 24, 2014
Hi

I need to replace the window crank operator for an old steel window.

The problem that I am having with the parts found in the hardware store
is that at the end of the arm where the circle slides through the slide in the part of the window that opens-
on the opposite side of the arm - where the circle is attached to the arm-
is not flush with the arm on the new parts that I am finding.

I need a new or refurbished window crank operator part that is
flat on the underside of the arm.
(as shown in picture called "window crank 1"

The new parts are convex on the underside of the arm and are hitting the window frame and will not allow it to close.

Attached are photos and measurements

Thanks for your help
Lauren

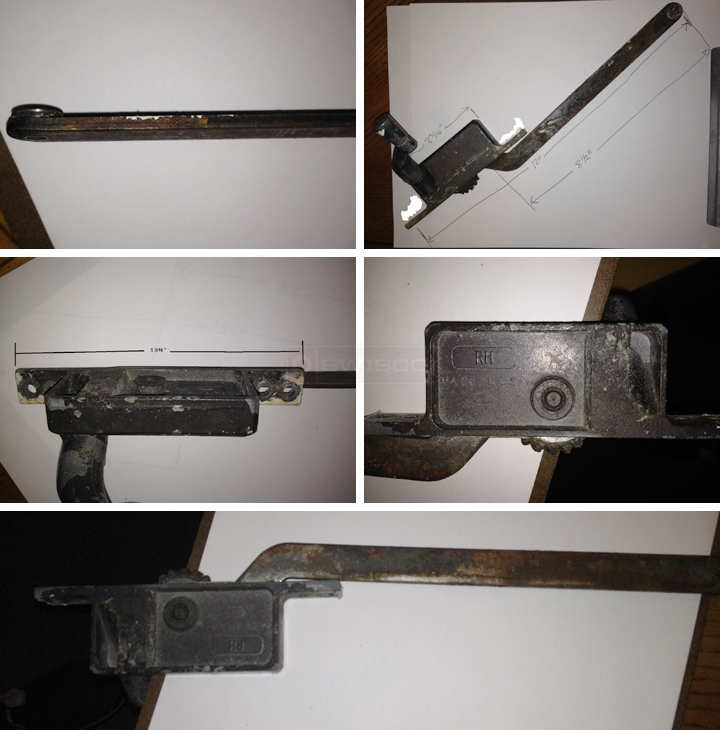

User submitted photos of a window operator.
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
December 1, 2014
Looking at your photos I believe our 39-001 and 39-002 could possibly match. Check them out and match up the dimensions to your sample.
%alt%
Window Crank Operator, 9"
39-001
$17.05
%alt%
Window Crank Operator, 9"
39-002
$17.05
Anatomy of a casement window
Anatomy of a casement window
