Quick Learner from Deer Isle Maine

Jul 3, 2023 7:59 pm

From what I can tell, the measurements you give for the 39-012 are essentially the same as my operator that died.

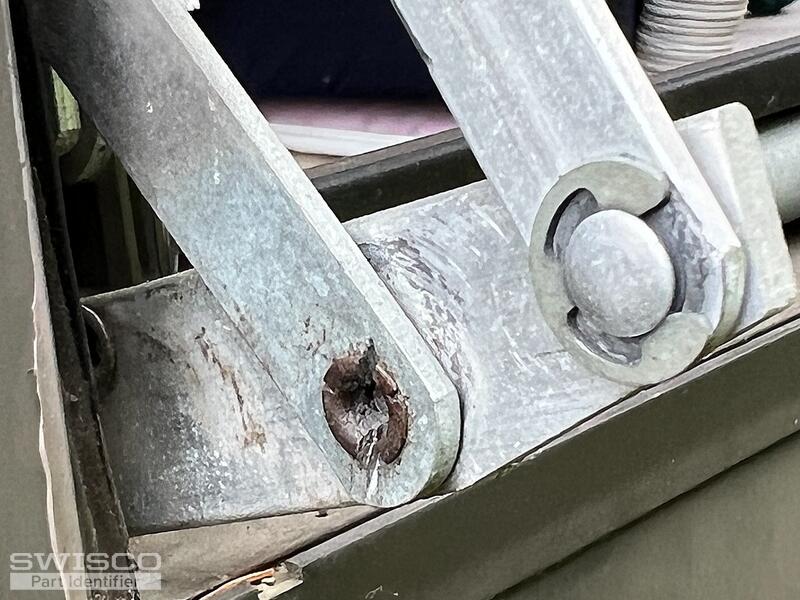

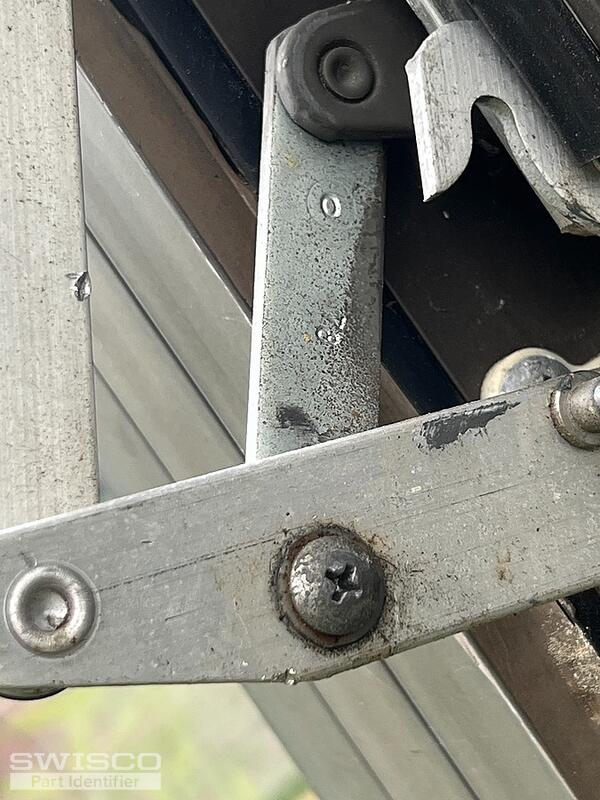

My concern is the connection of the operator arm to the awning window movement system: In my case there was a screw assembly shown in pictures which had a female internal threads (and smooth OD tube to fit thru the holes in the two arms and 'wings' that had been bent to hold the tube in place and not be pulled through the holes when a screw was tightened.

2 user uploaded images

5 Replies

Quick Learner from Deer Isle Maine

Jul 4, 2023 7:31 am

Just to be clearer, I hope, I am mainly interested in what I can use for connecting the crank arm to the window movement actuator.
Thanks

Casey from SWISCO

Jul 5, 2023 2:20 pm

Hello,

I can't be sure but the hole in your link arm that connects to the internal window linkage looks smaller than the 3/8" hole in the 39-012 arm. I would recommend taking a look at the 39-025 operator below, which includes a 10-24 thread bushing. Review the specifications below and see if this might be a better replacement option for your window. Thank you!

Dimensions for 39-025

View of the offset of 39-025

Quick Learner from Deer Isle Maine

Jul 5, 2023 3:17 pm

Hi Casey,
Thanks very much for the suggestion which sounds very good ('the 39-025 operator below, which includes a 10-24 thread bushing'). I am not sure I follow the geometry and function of the bushing? Is the bushing a cylinder which attaches to one arm and and slides in to the other arm hole? Is the bushing internally threaded to 10-24? Is there a plastic piece needed to make sure all parts slide? Basically it is unclear to me how the actuator and the window movement arms are connected.....
Thanks again,

Bruce

ps - is it ok totalk directly at some point or are there other drawings?
pps - If the 39-012 has a more proper length arm is there a way to couple it to the window arm

Dave Sr. from SWISCO

Jul 6, 2023 10:16 am

I agree that the 39-025 operator that Casey mentioned should work for your window. As for attaching the arm to the window linkage, the 39-025 has a threaded sector that protrudes from the end of the link arm. It also comes with an attachment screw. However, you will need to purchase the 33-206 nylon bushing to fill the gap in the window linkage. So there is no need for a "shoulder" screw. Take a look at the related video below that will show you how it is attached.
