replacement back support bracket

Home Owner from Fort Worth TX

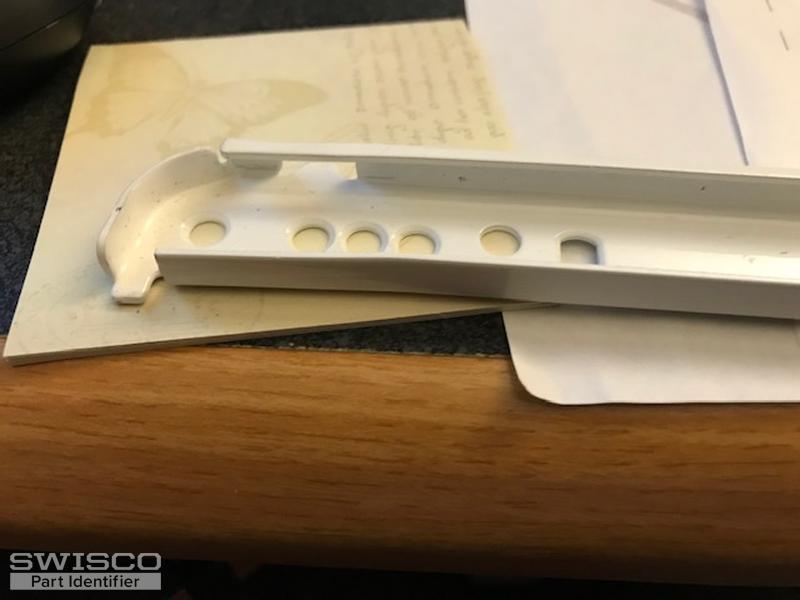

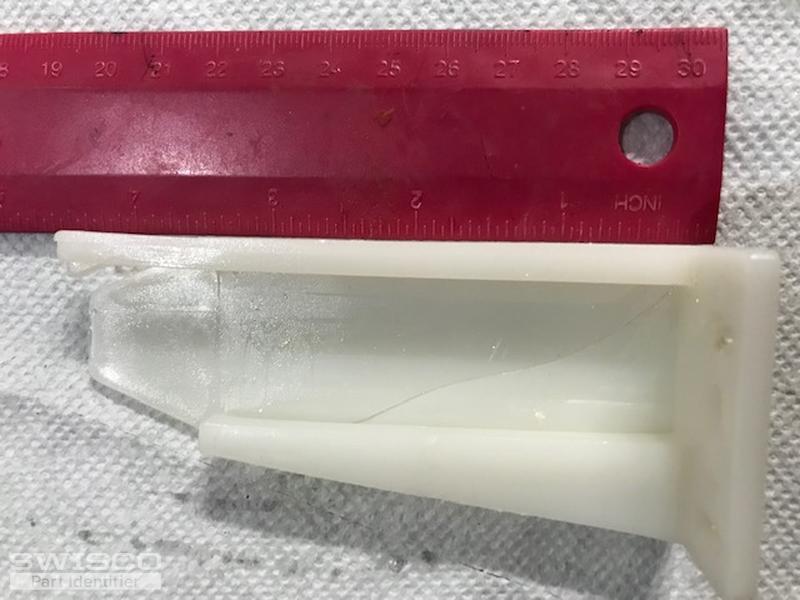

I am trying to find a replacment plastic back end support bracket (if sold individually it is the rigsays it is manufactured by Hettich and on that metal bracket has stamped on it Hettich 602 CR. I am providing pictures of the bracket and the metal slide. The unit has been installed for awhile (20+ years) The bracket is ~4 1/4 in long and the opening is 1 1/4 wide for the slot (Bottom)and then comes in and is about 1 in wide (above the slot). The back end where the bolt holes are is a larger rectangle and is 1 7/8 in wide and 1 1/2 deep (3/16 thick). The remainder of the piece is ~ 1/2 deep. I have also include a picture of the side mount metal slide as well and a photo of the sister support in the installed condition.

I am hoping you have a replacment part or something that can be used as a generic replacement.

Thank you
5 user uploaded images
5 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for writing in. Take a look at our 32-018. Look it over and see if you think this could work for you.

Quick Learner from WI
did your part 32-018 work for the 32-018
Quick Learner from Texas
Same issue here and trying to find a solution. Were you able to find a replacement part compatible with the Hettich 602? Did the 32-018 work?
Quick Learner from Sugar Land
I have a similar bracket which are now broken. I am desperately looking for those but not able to find it. Could you let me know if you were able to find an exact replacement ?
