replacement balance with 7/8" shoe depth

A home owner from Florida says:

March 27, 2021

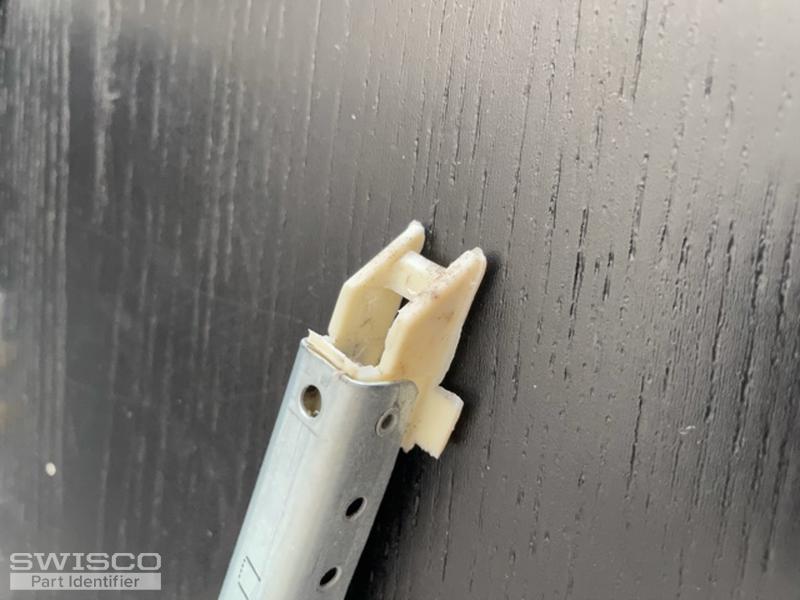

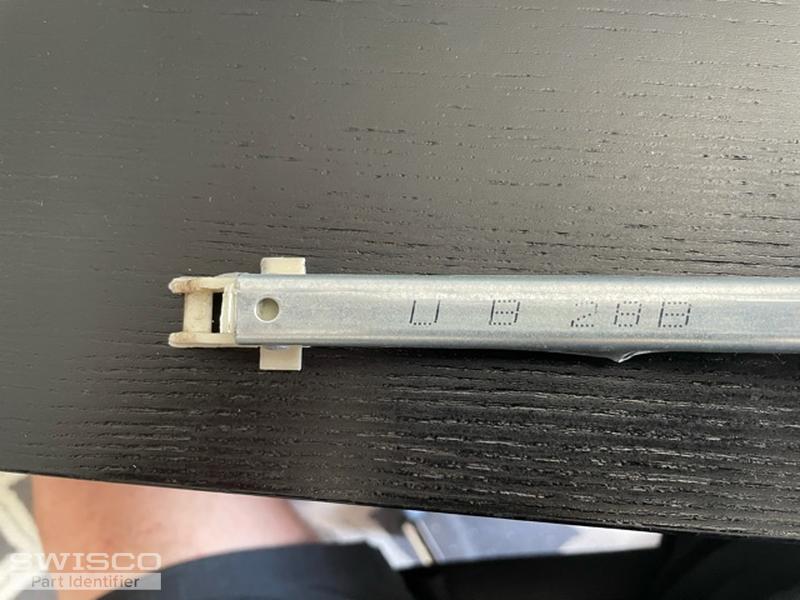

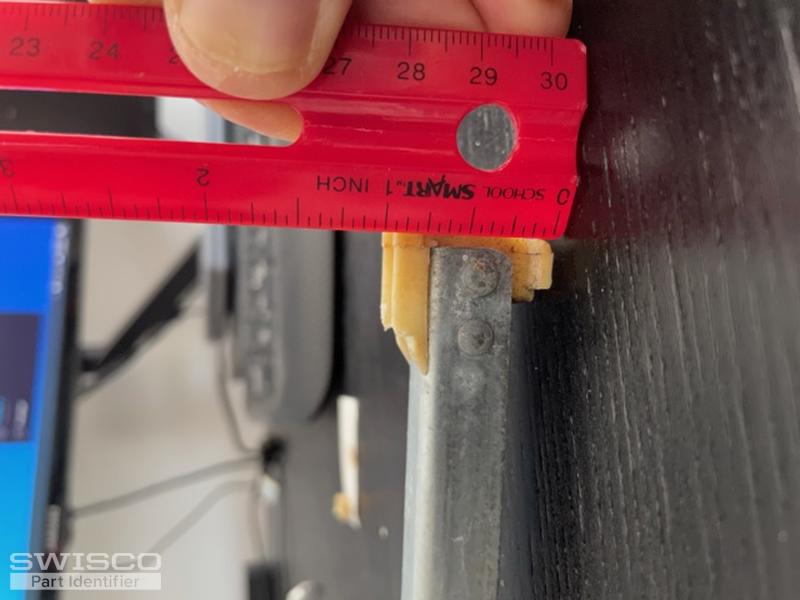

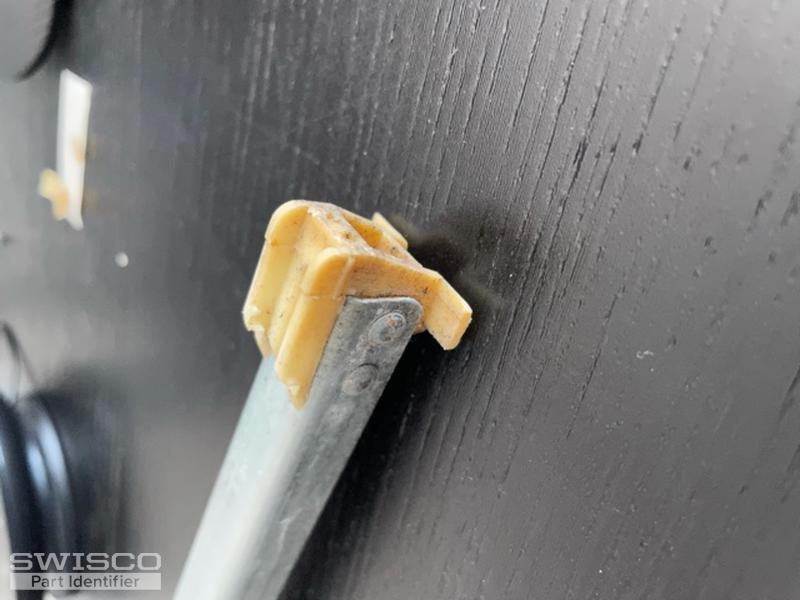

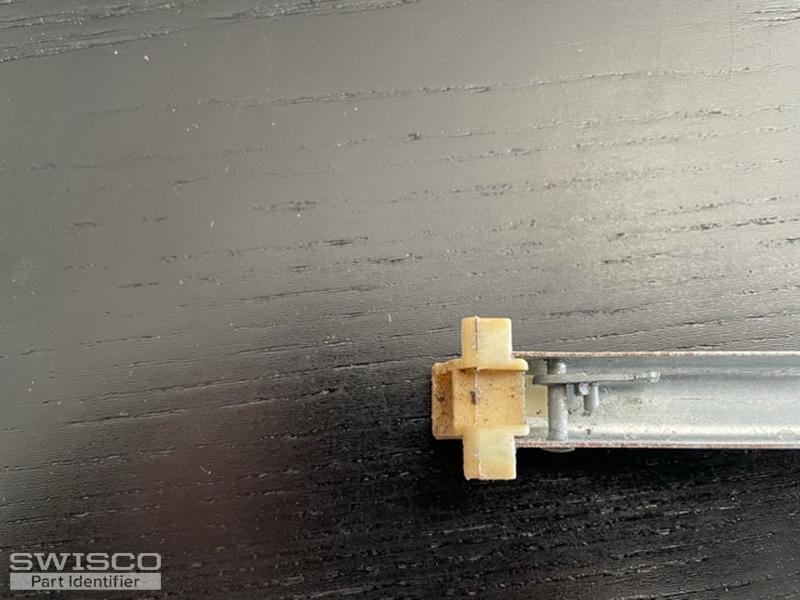

Hello, Im trying to identify my balance and the top and bottom that are correct. The balance is 29"L 9/16"wide and 1/2' deep. The shoe depth is 7/8" Pictures of the ends are attached. Thanks for your help.

Thumbnail of the uploaded file named image0 (1).jpeg

Thumbnail of the uploaded file named image0 (2).jpeg

Thumbnail of the uploaded file named image0.jpeg

Thumbnail of the uploaded file named image1 (1).jpeg

Thumbnail of the uploaded file named image1.jpeg

Bob from SWISCO responded:

March 30, 2021

Hello there. For your channel balance, you would need a 29" balance, stamped 2820, with a 19-005 balance top and 15-029 7/8" deep bottom shoe attached. We can provide this for you via custom order. I just sent you an email to order a pair. If you need a different amount, or have any questions. Let me know here in the discussion. Many thanks.

Channel Balance Top, Winged

19-005

$0.74

29" Series 380 Channel Balance

S380-29

$11.10

Winged Channel Balance Shoe, 7/8" Depth

15-029

$0.82
