replacement balances

Quick Learner from Rogers, TX

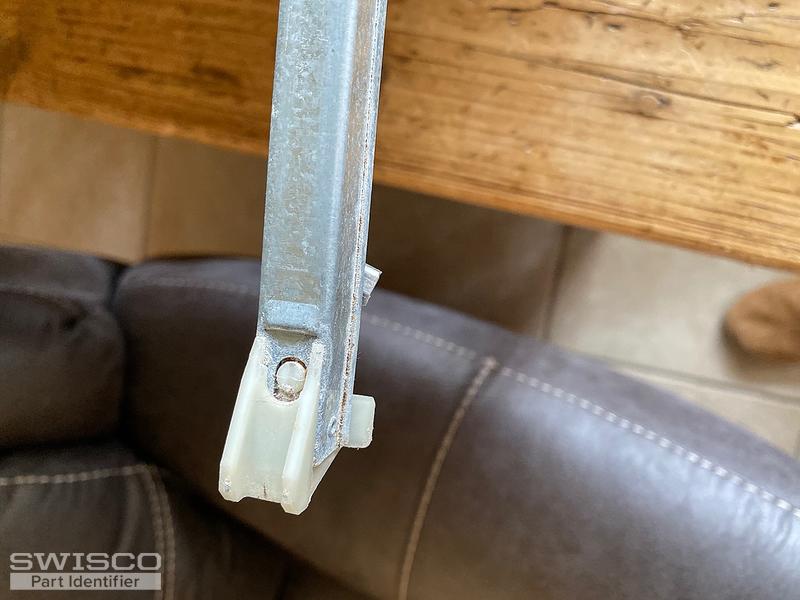

I am looking for a replacement balance. 26 5 CX CMC 7 is stamped on the part. The sash weighs 24 pounds. Thx
4 user uploaded images
2 Replies
Paul
Paul from SWISCO
SWISCO
Expert

Both our S380-27 and S385-27 balances look like good candidates for a replacement. The difference between these two parts is the depth measurement of the bottom balance shoe. The depth of the bottom shoe for the Series 380 is 1" and for the Series 385 is 1-3/32". You will need to measure the depth of your shoe, like in the diagram below, to determine which of the two would make a better match. Whichever one chosen will go with a 2650 option.

Alternate view of 15-004
Alternate view of 15-004
