replacement balances

Quick Learner from Gainesville, FL

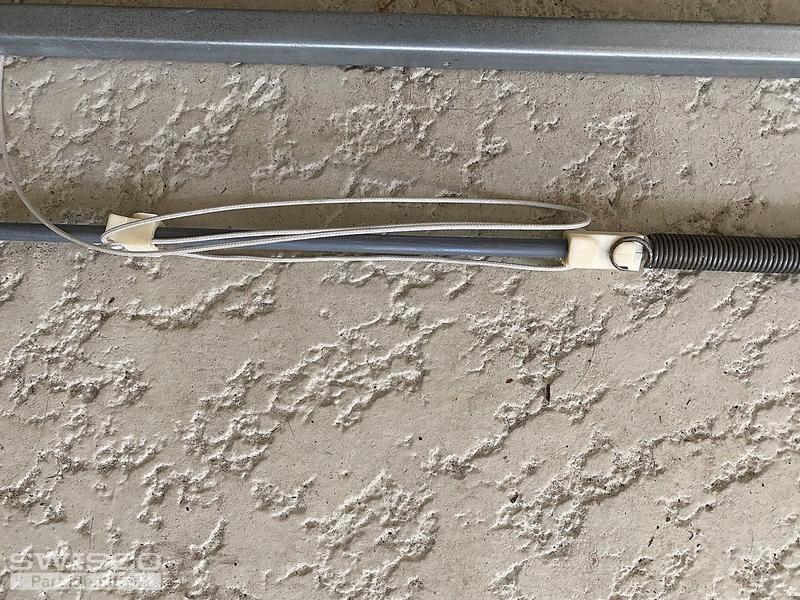

I really just need the white tab on the top of upper channel balance. May replace all of the upper and lowers. Please provide numbers for both upper and lowers.
4 user uploaded images
2 Replies
Paul
Paul from SWISCO
SWISCO
Expert

For your lower sash, you will need S795-28, but before you proceed to order, you will need the stamp code from the metal channel to know what stamp option to select. Show us a picture of the stamp if you're uncertain.

 For the top sash, the crossbow balance you show is no longer available, but you can replace it with the S795-26. In this case, we suggest a stamp option of 26C for a sash weighing between 17 through 22 lbs. You will need to replace the top sash pivot bar with the same type as for the lower sash. Watch the tutorial below.
