replacement balances for a window 27in long

Start a new Discussion

Quick Learner from Gardena ca

Jul 7, 2025 3:19 pm

If i need more pictures i can go back and take more. Thank you

5 user uploaded images

4 Replies

Casey from SWISCO

Jul 8, 2025 12:06 pm

Hello,

With this combination of attachments, you could have either the S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need 2630 spring strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from Gardena ca

Jul 8, 2025 7:41 pm

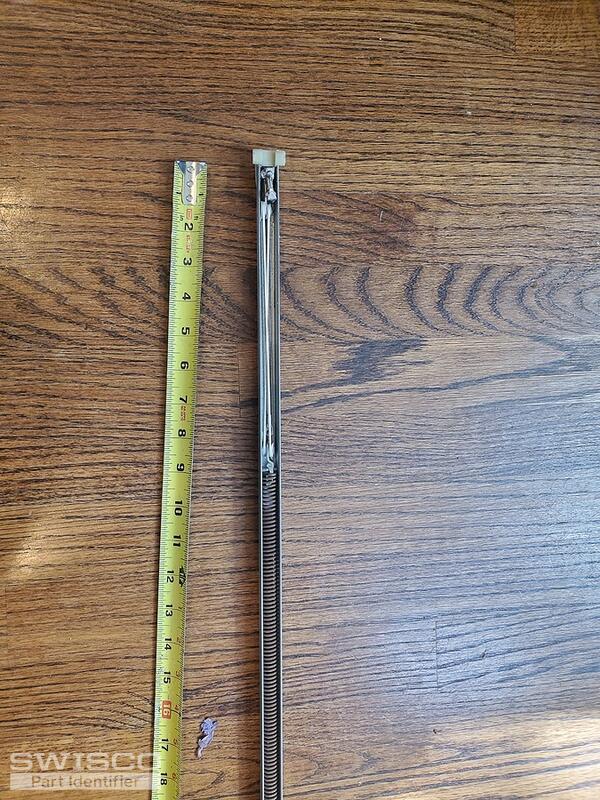

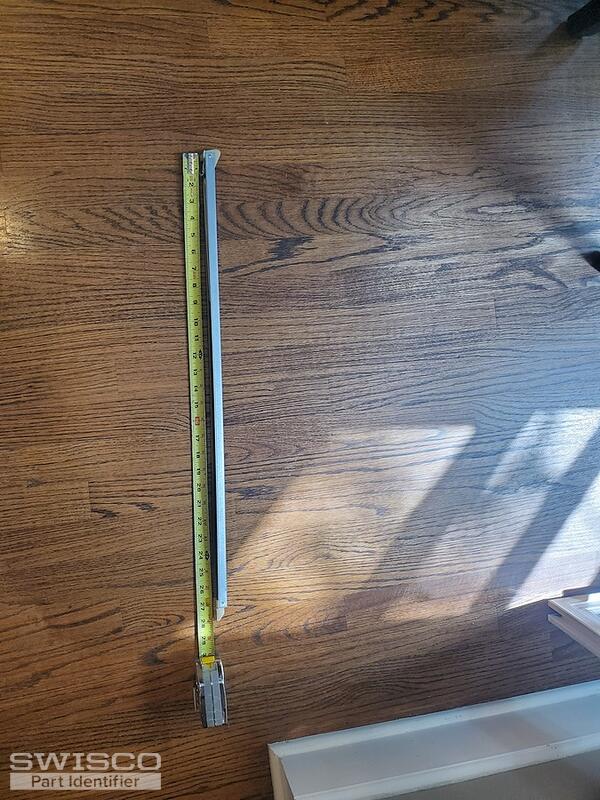

It looks to be the s380 it is 15/16 or 1 in. The spring measures 16in in the retracted position. I also need the ballance guide for the top of the window. It is 5/8wide x 1.5in.tall X 9/16. Thank you.

Casey from SWISCO

Jul 9, 2025 8:16 am

Great. Note that the balance length is based on the metal channel, not the spring.

If you need new top sash guides, we may be able to help but we would need to see photos of an intact guide removed from the window to compare to our inventory.
