replacement balances for side load vinyl window

Start a new Discussion

Professional from Fort Worth, TX

Sep 4, 2014 12:38 pm

Can you help me locate these? They originally came from a Maritech window manufactured in Carrollton TX.

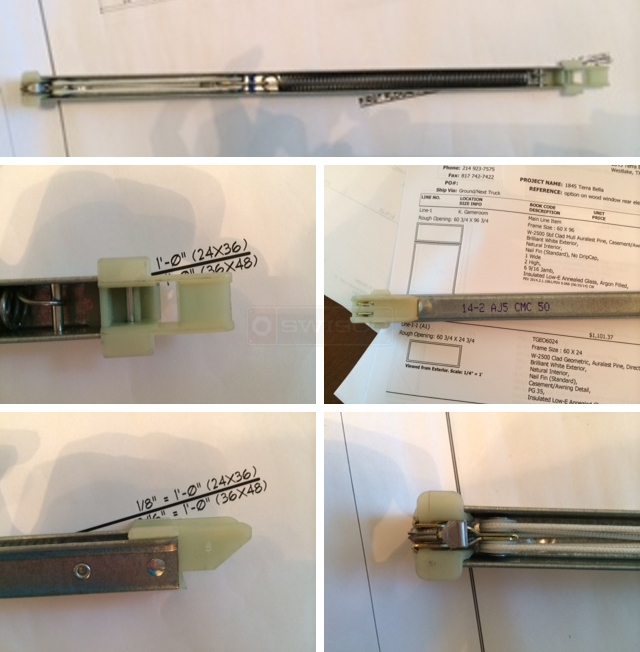

User submitted photos of a window balance.

4 Replies

Tom from SWISCO

Sep 5, 2014 2:32 pm

That is an odd shoe! Could I see it from a few more angles? I'd like to see it from the side. Can you also confirm if there is a wheel inside the shoe? I can't quite make out if there is or not. Thanks!

Professional from Ft. Worth

Sep 5, 2014 4:10 pm

Here are additional pictures. Yes - there a 2 sets of dual plastic wheels.

Paul from SWISCO

Sep 9, 2014 9:22 am

Ah, I recognize this balance. Unfortunately, that shoe has been discontinued and is no longer made. I believe the depth is 1-3/32". Can you confirm? If so, I recommend our S385-15 channel balance with a 1420 stamp option. This may be able to work as a substitute.
