replacement bifold hardware

A quick learner from Florida says:

Ihave the exact same doors. Here are some images of the guides and doors. The metal pins are 3/16" I am missing the glides and white caps and a couple of spring stops. I don't have a clue what they originally came with and how they should work, but would appreciate any input and suggestions for making them work! Thanks! Lynn

Thumbnail of the uploaded file named 20200113_191418.jpg
Thumbnail of the uploaded file named 20200113_192911_2 (1).jpg
Thumbnail of the uploaded file named 20200113_191504_2.jpg

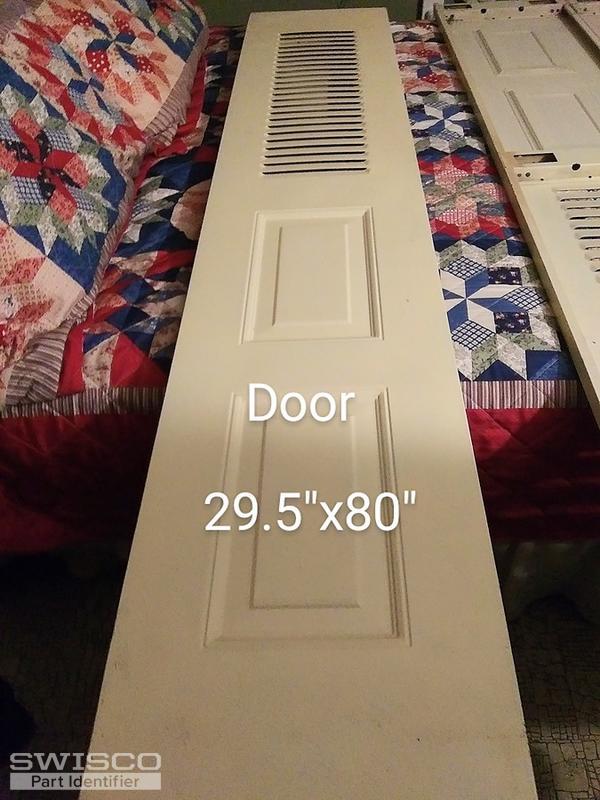

Thumbnail of the uploaded file named 20200113_191610_2.jpg
Profile picture of Paul
Paul from SWISCO responded:

Hi there, Lyn. Looking at your photo, it seems you have a Benchmark bi-fold door. You can use one of the 21-002 bifold door pivot pin and three of the 21-044 bifold door top pivot and guide pin. If you decide you just want to replace the caps and spring retainers on your current pieces, then you can go with the 21-100 and 21-157. There is also a possibility you will need a nylon grommet like our 21-163 to help the pins slide smoothly through your door holes. Review your options and our suggestions and let us know what you think.

21-002 : Bifold Door Pivot Pin, Benchmark
Bifold Door Pivot Pin, Benchmark
21-002
$4.20
VIEW >
21-044 : Bifold Door Top Pivot and Guide Pin, Benchmark
Bifold Door Top Pivot and Guide Pin, Benchmark
21-044
$3.66
VIEW >
21-100 : Bifold Door Pin Cap, Benchmark
Bifold Door Pin Cap, Benchmark
21-100
$0.78
VIEW >
21-157 : Spring Retainer
Spring Retainer
21-157
$0.57
VIEW >
21-163 : Grommet, Benchmark
Grommet, Benchmark
21-163
$0.91
VIEW >
21-209 : Pivot Bracket, Benchmark
Pivot Bracket, Benchmark
21-209
$2.87
VIEW >
21-250 : Spring
Spring
21-250
$0.67
VIEW >
21-276 : Bumper
Bumper
21-276
$1.36
VIEW >
