replacement block and tackle balances and maybe mounts

Question

Hello!

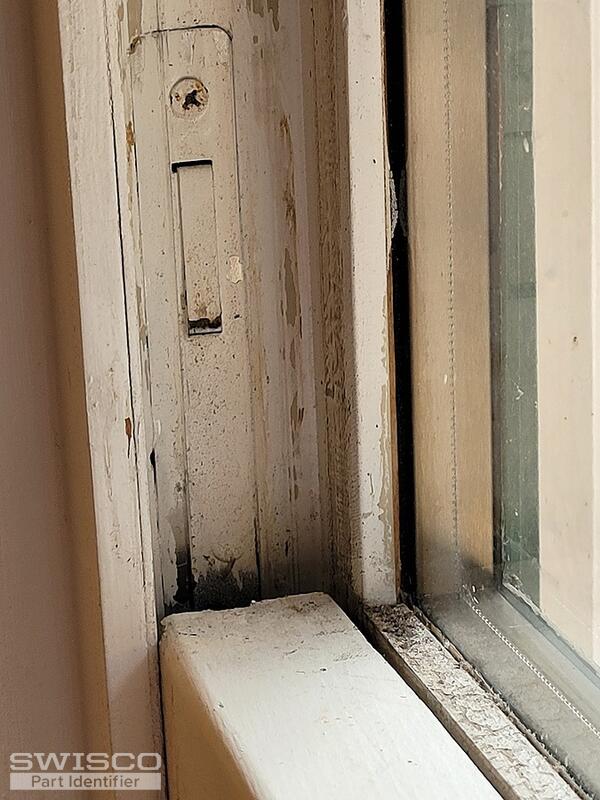

I am hoping to replace the block and tackle hardware for a sash window that looks like it hasn't worked right in a long time. One of the block and tackle balances is missing in fact. and the mounts in the window frame look painted over.

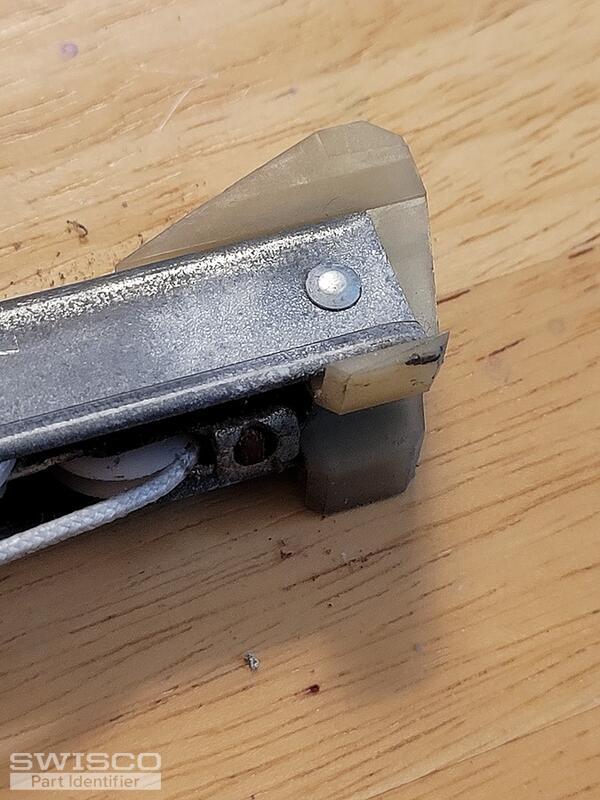

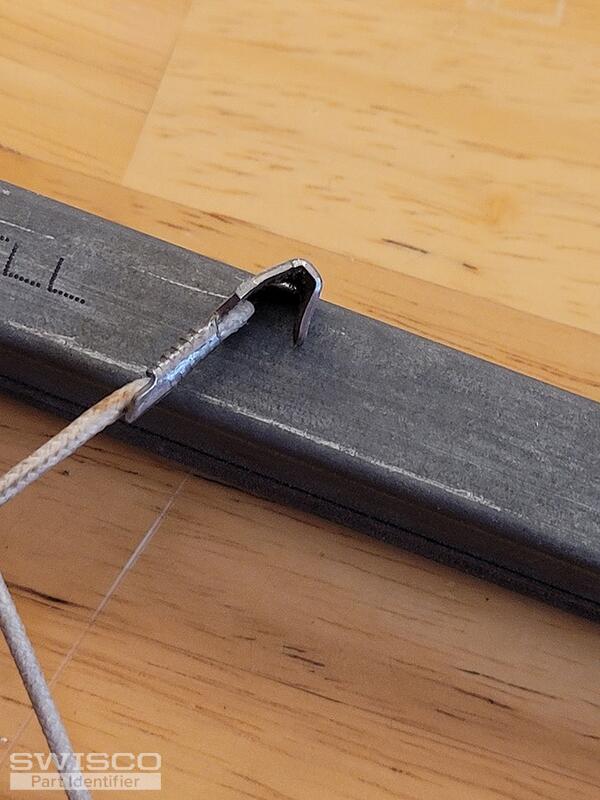

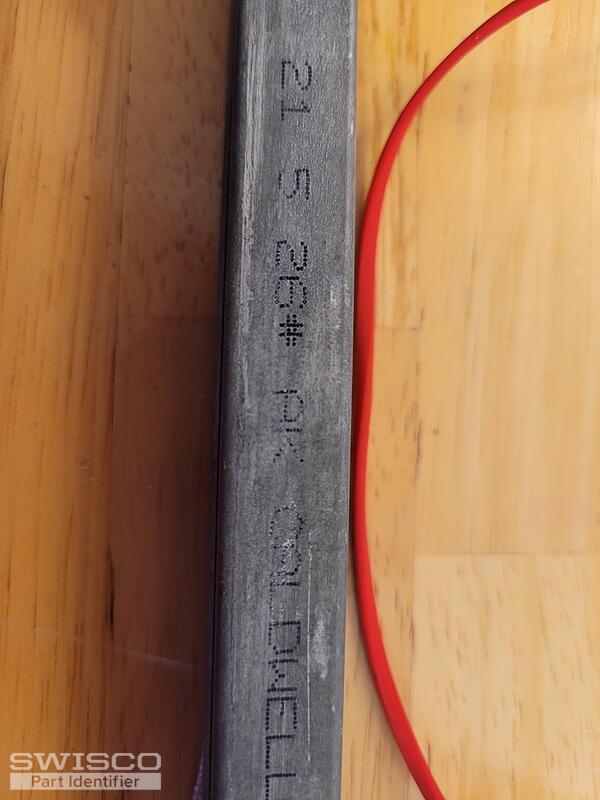

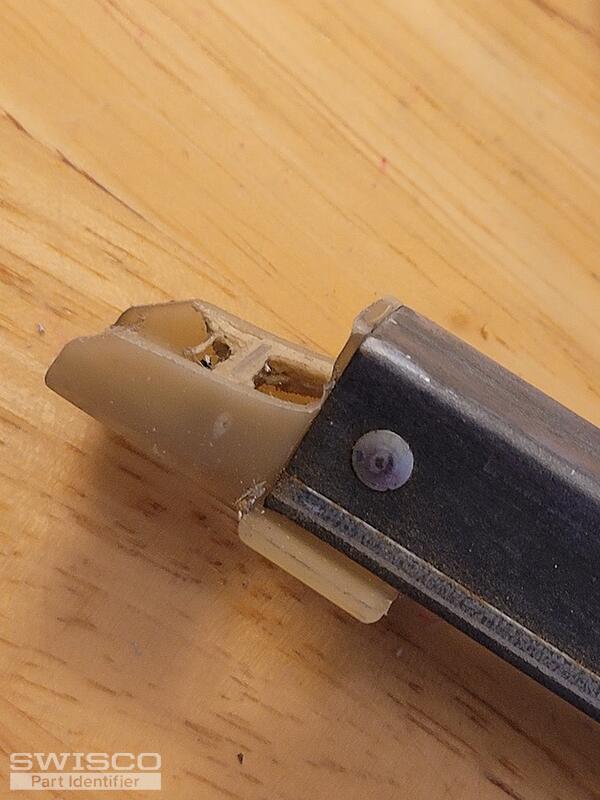

The one balance I do have measures 22 inches for the channel. the markings are included in the photos, "21 5 26# AK CALDWELL"

I have more photos than this form will allow me to upload. If you have a place I can put them, I'm happy to send them along.

Please let me know if you require anything further.

Thank you for your help!

-Marcos

Emily · Accepted Answer

Hi, Marcos.

Your balance looks like either our S380-22 or S385-22, depending on the depth of the bottom fitting. The Series 380 has a 1" deep fitting and the Series 385 has a 1-3/32" deep fitting. Measure as shown in the image below to determine the best match. You will also need the 2150 strength option, based on your 21 5 stamp.

Comparison of the S380 and S385 balance shoes.
