replacement channel balance

Home Owner from valley center california

hello

26-4 HM5 CMC 61

27 inches channel

kinro window

pulley string broke

thank you

celeste

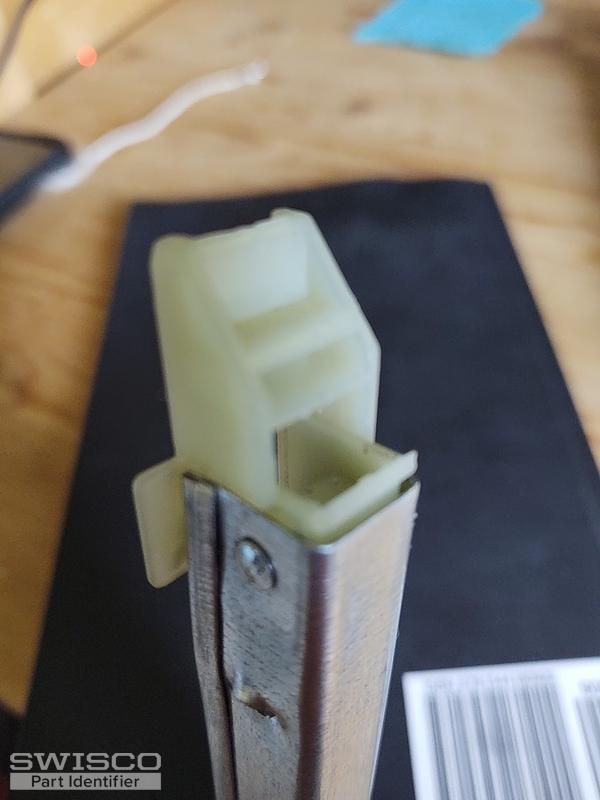

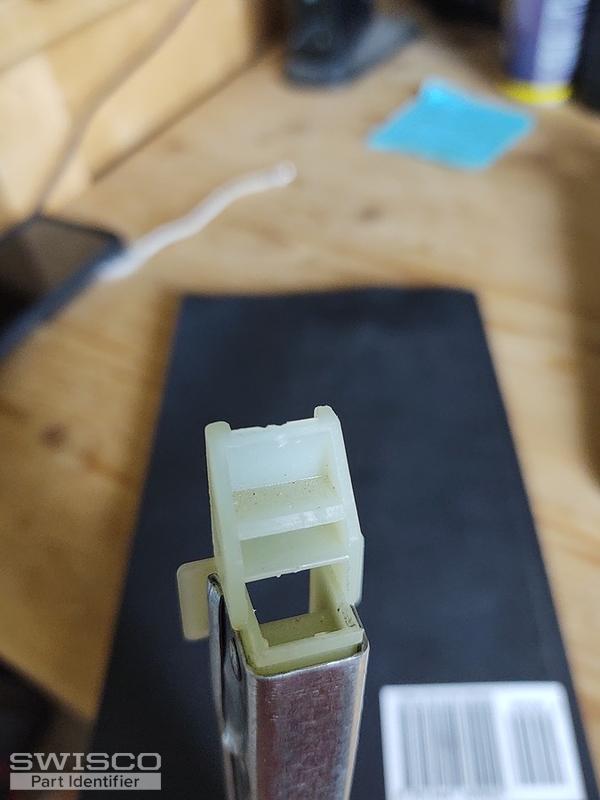

5 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2640 spring strength options for your replacement balances. .

Thank you and let us know if you have any other questions or concerns.



Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
