replacement channel balance

A quick learner from Utah says:
May 31, 2022

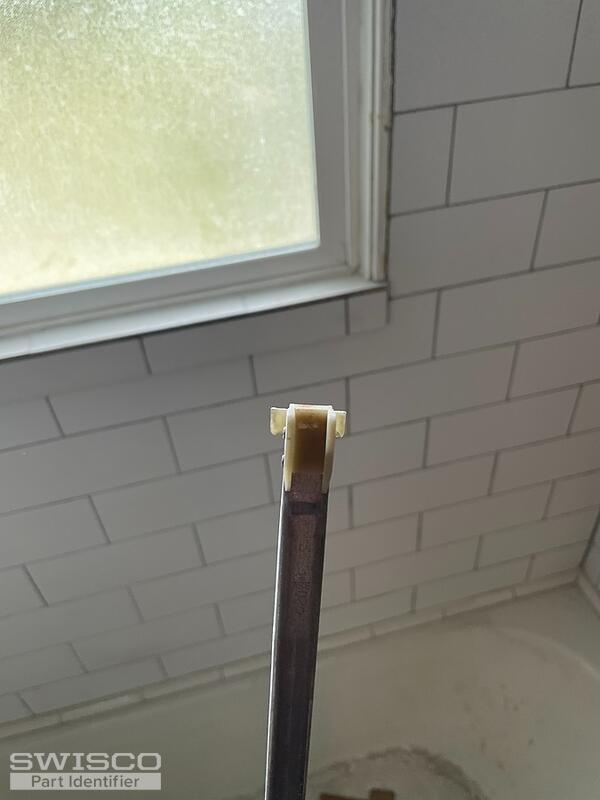

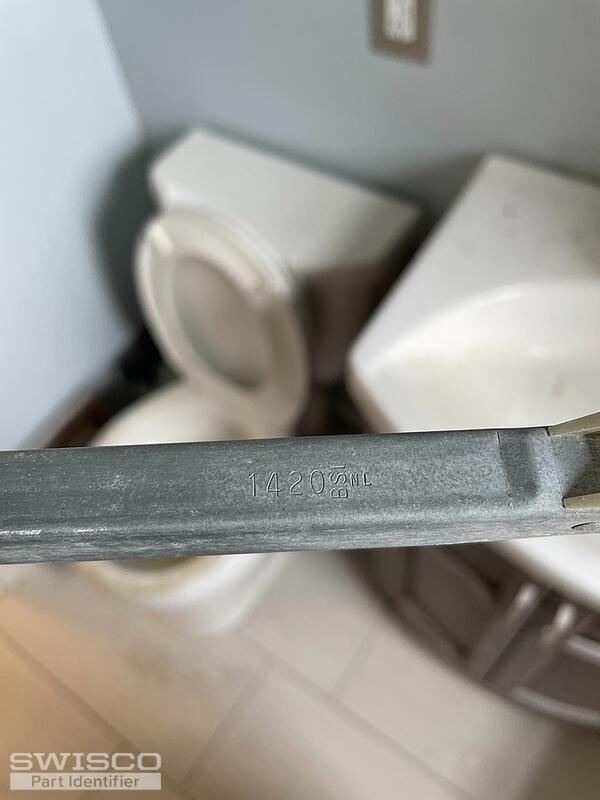

Hi I have attached some pictures, including the stamps.
Thank you!
Thumbnail of the uploaded file named IMG_3857.jpeg
Thumbnail of the uploaded file named IMG_3856.jpeg
Thumbnail of the uploaded file named IMG_3855.jpeg
Thumbnail of the uploaded file named IMG_3854.jpeg
Thumbnail of the uploaded file named IMG_3844.jpeg
Profile picture of Emily
Emily from SWISCO responded:
June 3, 2022

Hi there!

It appears you could have either our S380-15 or S385-15 channel balance depending on the depth of your bottom shoe. The Series 380 has a 1" deep shoe and the Series 385 has a 1-3/32" deep shoe. Measure as shown below to see which one matches up. You will also need the 1420 strength option.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
15" Series 380 Channel Balance
15" Series 380 Channel Balance
S380-15
$9.34
15" Series 385 Channel Balance
15" Series 385 Channel Balance
S385-15
$9.34
