replacement channel balance

Home Owner from NV

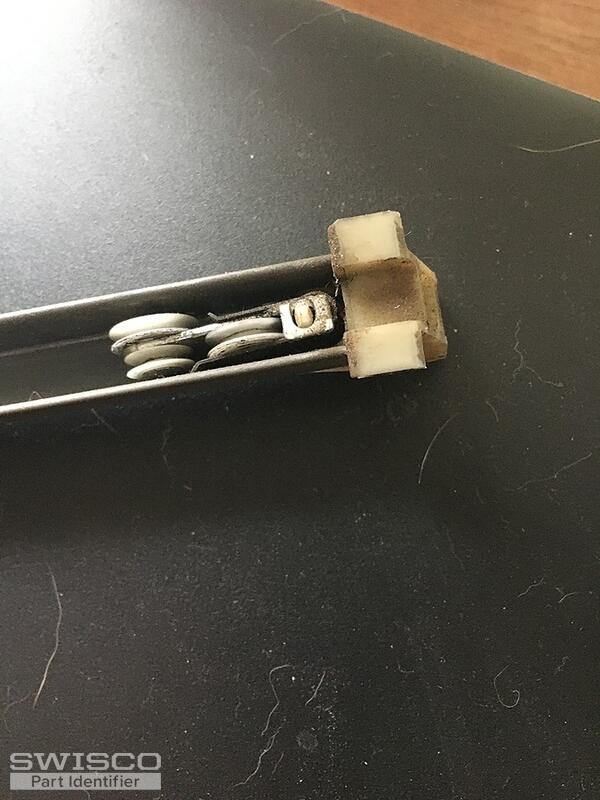

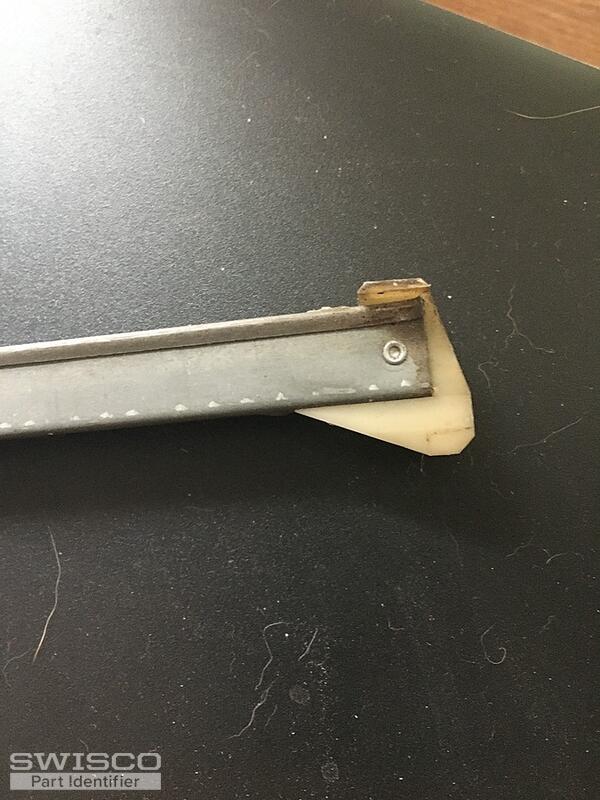

need to replace balance in non tilt window, tried going through different company but found balances the had were not correct, were tied to retaining hook instead of crimped, causing retaining hook to catch and then snapped

widest part of channel is 5/8 in

metal length is 27 in

marking on metal is 26 4 fn caldwell

Thank you for your time

Nick

5 user uploaded images
2 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Thank you for reaching out to us, Nick. Our Series 380 or Series 385 are my recommendations based on what I see here. Measure as shown below to determine the best match. I also recommend the 2640 strength option.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
