replacement channel balance

Home Owner from Reno, NV

Oct 5, 2016 1:22 am

Hi,

I have three broken channel balances. The mark says "33.4 CN Caldwell". The metal bar length is 33" and the width is 1/2". I have attached pictures of both ends. Can you please tell me the replacement part numbers?

Thanks in advance.

Xiaoliang

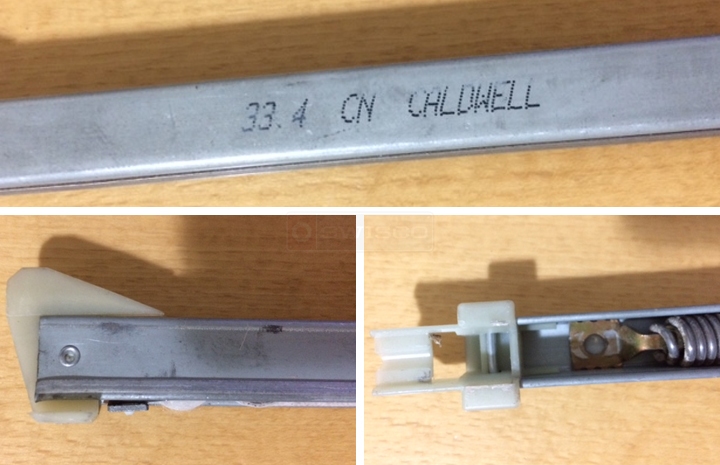

User submitted photos of a window balance.

5 Replies

Home Owner from Reno, NV

Oct 5, 2016 1:49 am

The metal bar measures 33".

Tom from SWISCO

Oct 7, 2016 12:33 pm

Thanks for posting. Can you confirm the length of the metal channel? Based on your stamp, it should be 34". If so, I recommend our S385-34.

Home Owner from Reno, NV 89519

Oct 7, 2016 1:13 pm

Hi Tom,
Thanks for the response. I measured the metal piece (not including the plastic pieces) and the length is 33".
Xiaoliang

Tom from SWISCO

Oct 11, 2016 11:34 am

That's very odd. I wonder why your balance is stamped "33 4." If your metal channel is 33" long, then you can go with our S385-33, but you will need to weigh your sash to determine the proper option. I would also confirm the plastic pieces on either end match the Series 385 just in case.
