replacement channel balances

A quick learner from Indianapolis says:

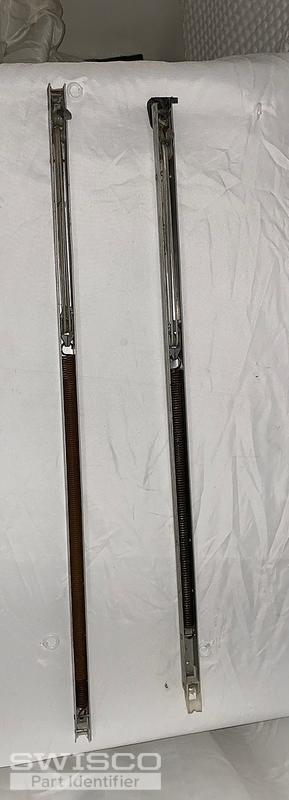

They are 1/2 channel
The metal channel is 22" and 24"



Thumbnail of the uploaded file named Photo Oct 29, 1 02 35 PM (1).jpg
Thumbnail of the uploaded file named Photo Oct 29, 1 02 40 PM.jpg
Thumbnail of the uploaded file named Photo Oct 29, 1 02 44 PM.jpg
Thumbnail of the uploaded file named Photo Oct 29, 1 02 51 PM.jpg
Thumbnail of the uploaded file named Photo Oct 29, 1 04 27 PM.jpg
Profile picture of Paul
Paul from SWISCO responded:

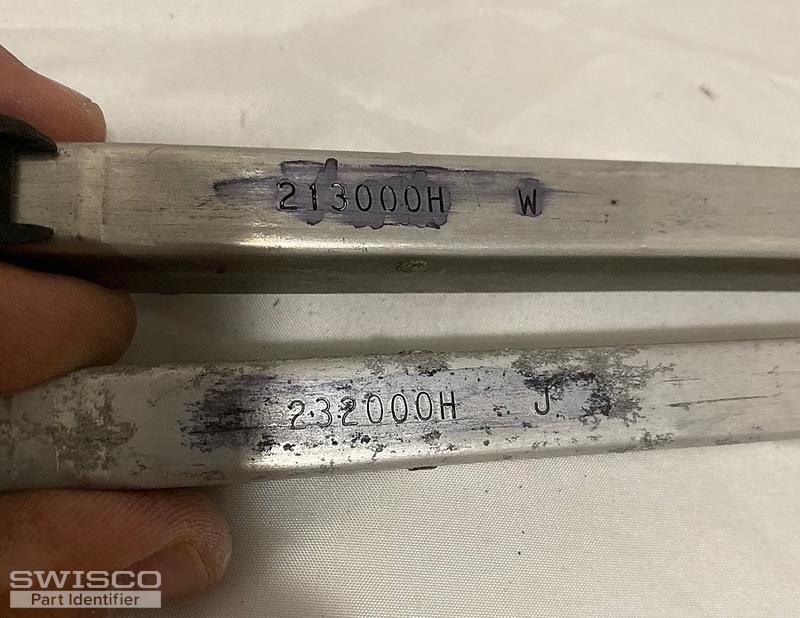

Thanks for posting. Please take a look at our S350-24 and S350-22 channel balances. This comes assembled with a 19-002 balance top and 15-004 bottom balance shoe. Compare your nylon fittings to ours to confirm this is correct. If this is correct, then for the 22", go with the 2130 option, and for the 24", go with the 2320 option.
