replacement channel balances

Quick Learner from Flemington NJ
Hi

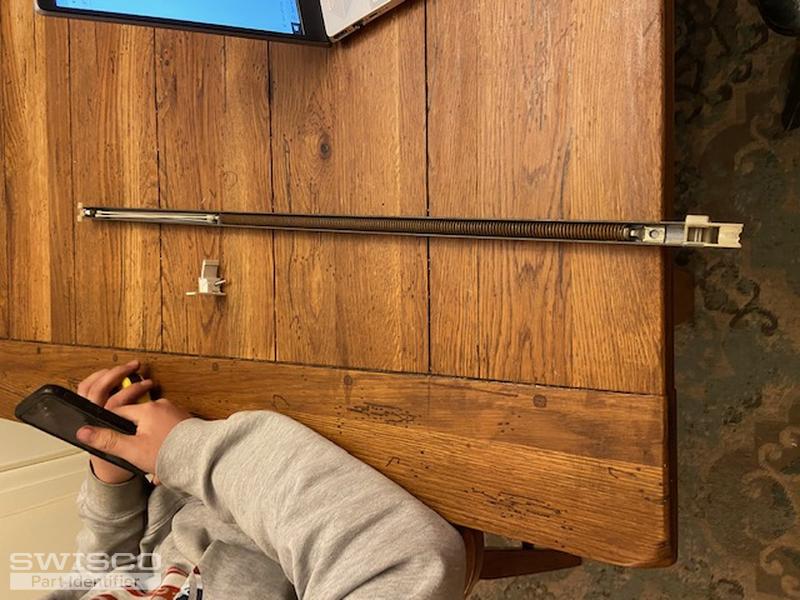

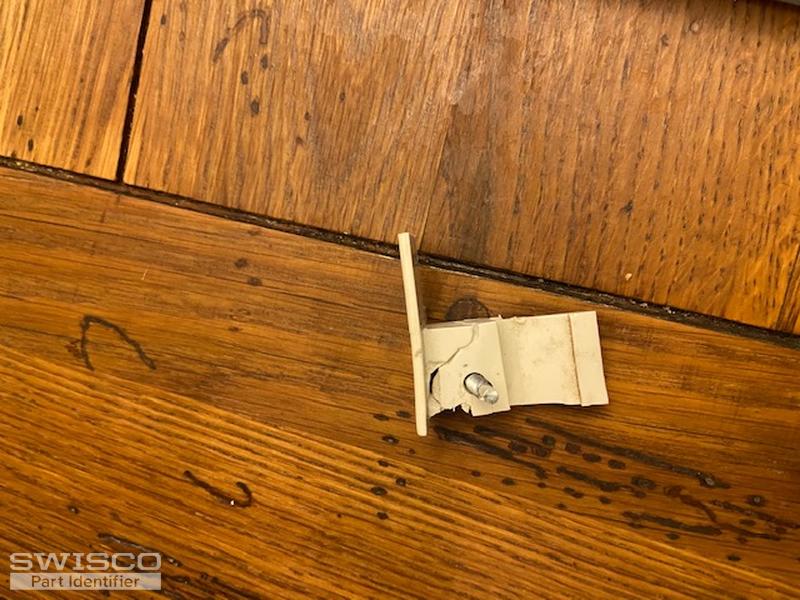

I am in need of two channel balances and the top and bottom caps that they attach to. I am forwarding photos. It looks like the number reads 27 1/2 3 F J caldwell
thank you for your help!
Darla
5 user uploaded images
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Thanks for posting, Daria. Your top sash guide looks like a match for our 18-124P, but your balance is a little special. That stamp indicates a metal channel length of 27-1/2". Can you confirm that that's right?

If it is, then your balance will need to be a custom order, since that's not a stock size. Before we go any further, please look at the diagram below and tell me which Series is closer to your original. Please also tell me how many balances altogether you wanted to purchase. We will then work from there.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
Quick Learner from Flemington NJ
Thanks for your reply
It is stamped 27 1/2 but actually measures 28"
It is the S 380 because it measures 1".
I need two of them.
Can you tell me the price and how long it will take to get them? I want to order.
Tom
Tom from SWISCO
SWISCO
Expert

Thanks for confirming. Just to be sure, you're only measuring the metal channel, correct? You don't want to include the nylon fittings in your length measurement.

If the length of the metal channel is precisely 28" then you can use our S380-28. You can see a detailed price breakdown on that store page. Shipping time will depend on what delivery option you select during checkout, since we offer multiple methods.
