replacement crank

Home Owner from long beach, CA
I'm trying to find a replacement crank. The internal parts are stripped. Would you have a replacement for this crank?

Thanks,
Shawn

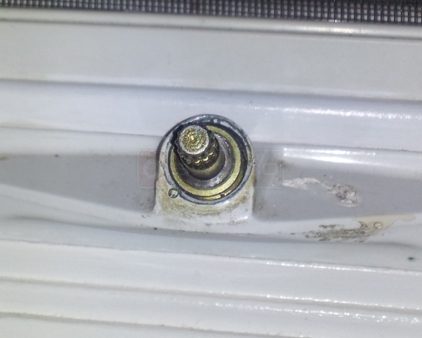

User submitted photo of their window operator gear.
9 Replies
Tom
Tom from SWISCO
SWISCO
Expert
Shawn, can you send us a photo of the original crank?
Home Owner from long beach, CA
Yes, I'll take some photos tonight and upload them.

Thanks,
Shawn
Home Owner from long beach, CA
here's a couple more images hope that helps. also it has two arms that open the window. Let me know if there is anything else I can do.

Thanks,
Shawn

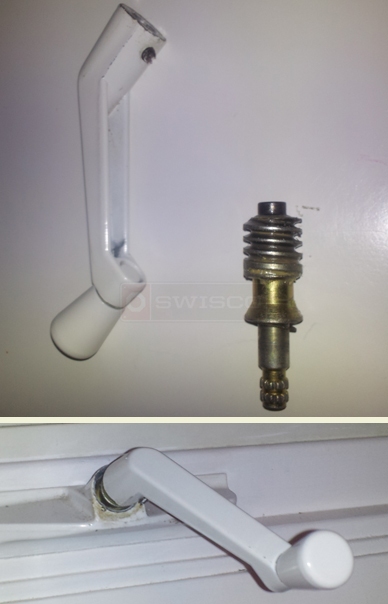

User submitted photo of operator handle.
Tom
Tom from SWISCO
SWISCO
Expert
Shawn, take a look at the 39-104 Crank Handle and compare it to your original, particularly the gear bore diameter (3/8").
Home Owner from long beach, CA
Mike,
It's been broken for so long I forgot what the problem was. There is a nut that goes between the handle and the spindle to keep the spindle in the case. It's stripped. So I don't know if I can get a new nut or I need a whole new unit. Here's a picture of the nut.

Thanks,
Shawn
User submitted photo of crank operator gasket.
Tom
Tom from SWISCO
SWISCO
Expert
Shawn, we actually recommend you replace the entire handle unit. These pieces are often unavailable for sale separate from their respected handle or operator.
Home Owner from long beach, CA
Mike,
Do you have a replacement that I can purchase? I'm not sure which one I need.

Thanks,
Shawn
Tom
Tom from SWISCO
SWISCO
Expert
Take a look at the 39-104, see if it matches your original.
