replacement hinge

Quick Learner from Pittsburgh, PA

Apr 15, 2021 10:49 am

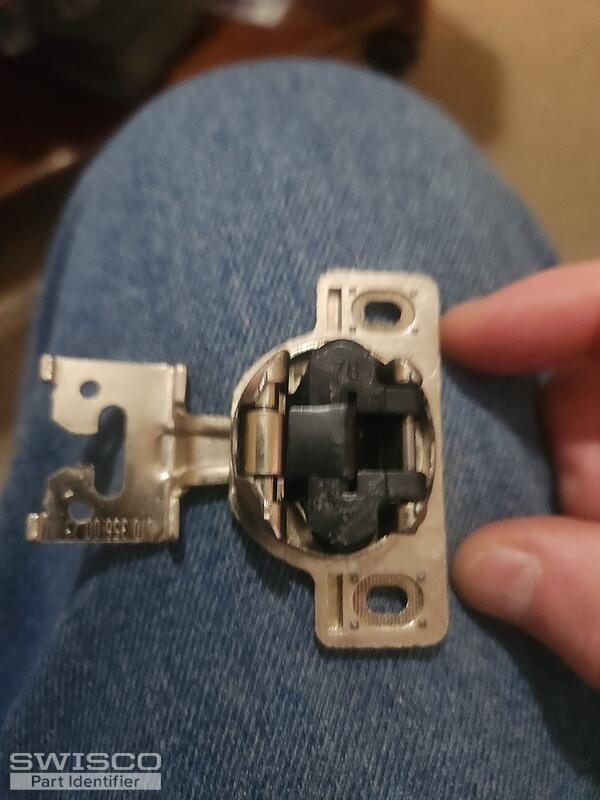

Looking for a replacement hinge for 25 year old kitchen cabinet door there was a number on the rear of the hinge 510 356 0025

2 user uploaded images

4 Replies

Casey from SWISCO

Apr 20, 2021 8:13 am

Hello,

I don't believe Mepla hinges like yours are still available, or at least we haven't been able to find a source for them in the past.

With that being said, take a look at the 32-345 wrap-around hinge that is mounted to the side cabinet support. See if a pair of these hinges could work for you. Thanks for posting!

Handy Person from Farmingdale ny

Dec 6, 2022 12:22 pm

Your reply to april 15 2021 from Pittsburgh PA. I have the same 510 356 00 25. You suggested 32-345 but not the 32-343. If buy them, what is you return policy? One the 32-343 what is the messurement from the two screw holes? Mine is 1 7/8 on hole center.

Thx
Jeff#

2 user uploaded images

Dave Sr. from SWISCO

Dec 7, 2022 9:19 am

The cup that goes on the door of the 32-343 has hole center spacing of 1-3/4", while the part that is attached to the cabinet, with the centers of the elongated holes, comes up as 1-1/2".

Although the mounting holes are not exact you might still be able to adapt them to your cabinet. I've had to replace the hinges on my own kitchen cabinets at home at least two or three times and I had to make new holes each time. You are also welcome to look through our return policy here. Thank you.
