Quick Learner from Westerville, OH

Oct 10, 2016 8:14 am

I have an Acorn window that needs new spiral tilt window balance, it is a 3/8-inch shaft, 28

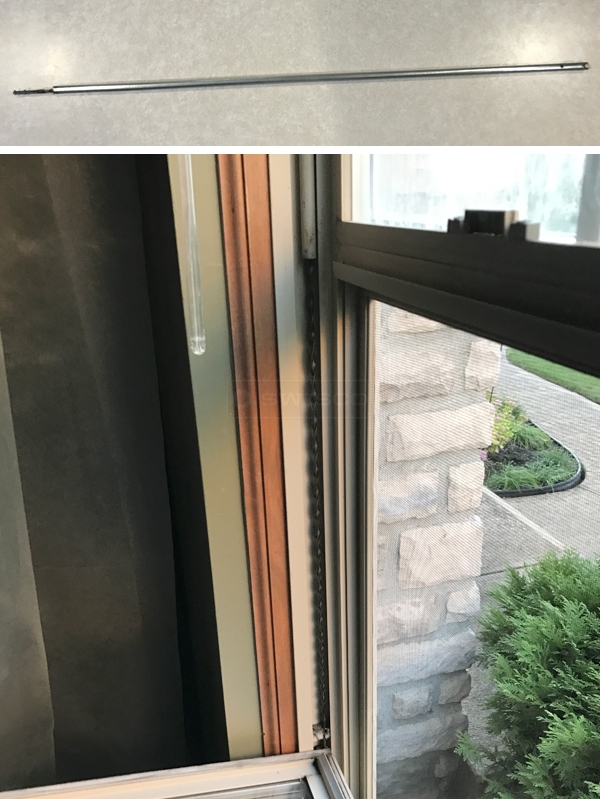

User submitted photos of a window balance.

4 Replies

Paul from SWISCO

Oct 13, 2016 1:08 pm

Thanks for posting. I recommend looking at our S900-28 spiral balance, this appears to match your specifications.

Quick Learner from Westerville, OH

Oct 13, 2016 2:28 pm

Some of my original message got cut off: I have an Acorn window that needs new spiral tilt window balance, it is a 3/8-inch shaft, 28 1/2" in length. Will i be able to use a 28" or 29" or have custom length made?
Thanks

Tom from SWISCO

Oct 14, 2016 12:56 pm

Thanks for clarifying! In that case, I think you'll be okay bumping it up to S900-29. Some older window manufacturers used to design their spiral balances on the 1/2", but that style has been phased out. Modern balances are all made on the inch. When encountering the old 1/2" balances, we find that rounding up to the next inch is the best way to go.
