replacement part for sliding (non-tilting) window channel balance

Home Owner from san jose, CA

Nov 14, 2019 11:45 am

I need to replace 6 of the pictured sliding (non-tilting) window channel balances.
The uploaded photos should show the shape of the end cap plastic parts.

The measurements are as follows.
Length: 24 inch

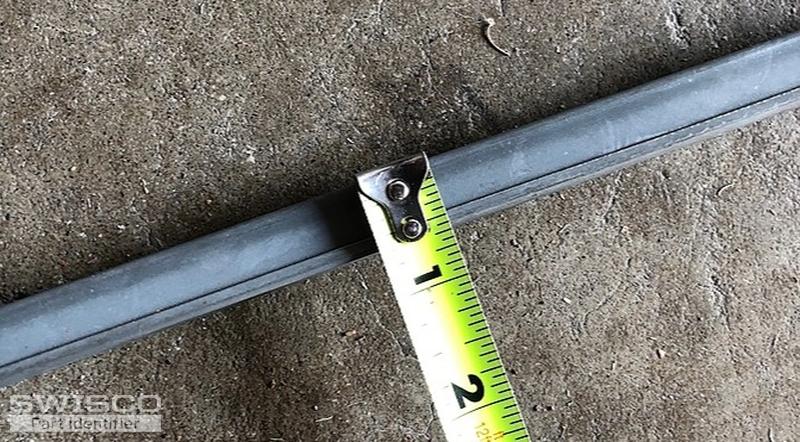

Channel width: 1/2 inch

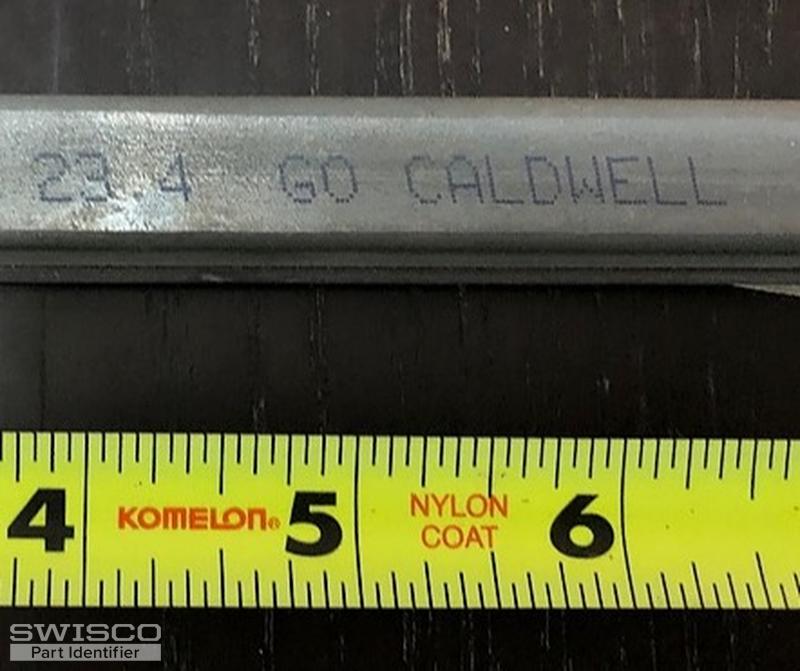

Printed name: 23.4 GO CALDWELL

5 user uploaded images

4 Replies

Bob from SWISCO

Nov 18, 2019 1:42 pm

Thanks for writing in. See our S380-24 or S385-24. The only difference between these two balances is the 'depth' of the bottom nylon shoe, so compare both with your old hardware to see what matches best. You will need a stamp option of 2340.

Home Owner from san jose, CA

Nov 20, 2019 2:45 am

Thank you Bob for your kind reply!

Bob from SWISCO

Nov 20, 2019 8:15 am

You are very welcome. Glad we could help.
