replacement parts

A quick learner from Dublin, OH says:
February 3, 2019
I need a spiral balance (red tip) and the pivot lock shoe. The window is a Vinyltech 2000 SH. The spiral balance is 28" long (no red tip) and 5/8" diameter. I think that's the S600. The pivot lock shoe I'm unsure of. Also, do I need a tool to wind the spiral balance?
Profile picture of Bob
Bob from SWISCO responded:
February 4, 2019

Thanks for posting. Yes, if the diameter of the outer tube is 5/8" and length (not including the colored tip) is 28", then it looks like you have a S600-28 Spiral Balance. It also looks like it has a red tip; sometimes these tips fade from age to a rusted color or an off-orange.

Yes, to wind or charge your spiral balance, see our 75-006.

As far as your pivot shoe goes, I'm afraid I need more information to be able to help. Could you take pictures of the pivot shoe removed from your window? Could you also provides its width and thickness? This would help us narrow down the right replacement for you. Thanks!
A quick learner from Dublin, OH says:
February 4, 2019

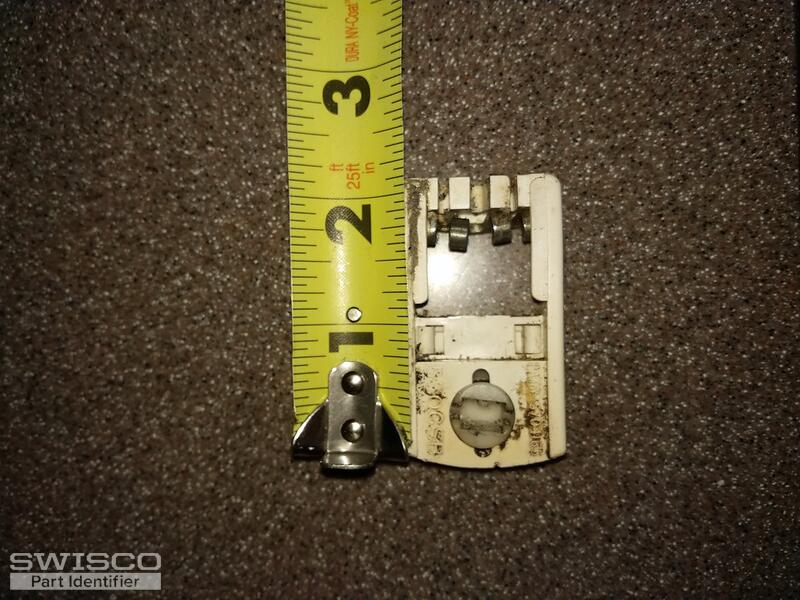

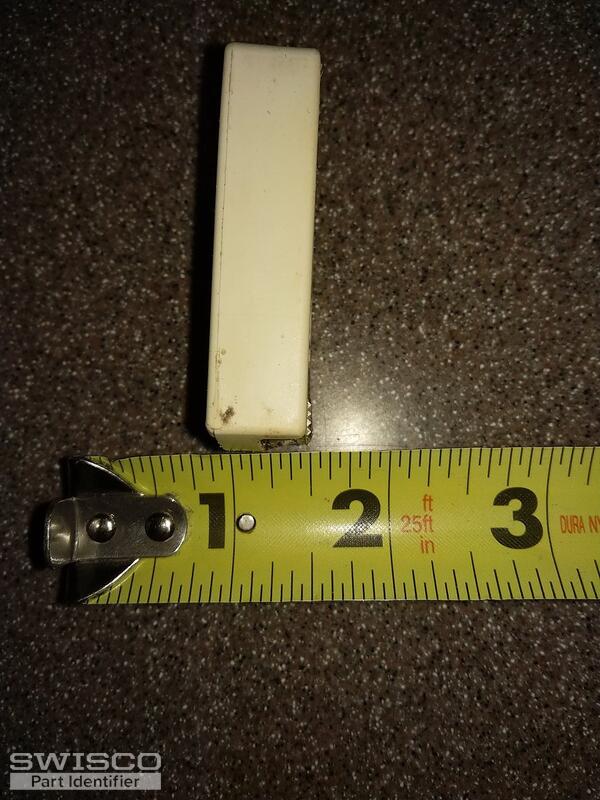

Here you go
Profile picture of Bob
Bob from SWISCO responded:
February 5, 2019

Many thanks for these new photos. See our 15-219 Pivot Shoe. Look over the product specifications and see what you think.
28" Series 600 Spiral Tilt Window Balance
28" Series 600 Spiral Tilt Window Balance
S600-28
$9.28
Spiral Balance Charging Tool for Tilt Windows
Spiral Balance Charging Tool for Tilt Windows
75-006
$9.97
Pivot Shoe
Pivot Shoe
15-219
$3.47
