Allen Stevens Corp 6049 and 6047

Quick Learner

Jul 20, 2010 8:37 pm

I need 2 replacement rollers for a patio sliding door. I have taken pictures of the current rollers to help you identify the rollers.

Thank you!
Chris H.

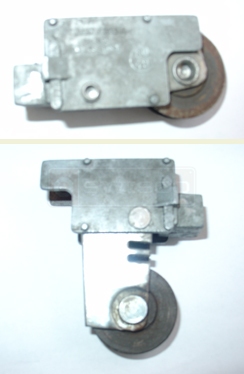

Customer image of their patio glass door roller.

Description on the housing:

Allen Stevens Corp
Woodside NY
60 49

9 Replies

Dave Sr. from SWISCO

Jul 22, 2010 7:01 am

Allen Stevens is no longer in business. However, we do have a replacement roller to use in place of it . Look up SWISCO product code 81-005.

Handy Person from Pembroke, NH

Mar 24, 2011 4:51 pm

I would like to replace the roller assembly in my old patio door. The old part is marked Allen Stevens Corp and part #6047. Can you possibly cross reference this?

Handy Person from Nederland (Holland)

May 18, 2011 10:07 am

Mr. Mike from SWISCO

I want to order:
Allen Stevens Corp Roller part 6047

In this mail I send you pictures of the rollers that I need.

I hope to get a answer back.

Yours sincerely,
N.Rajaram

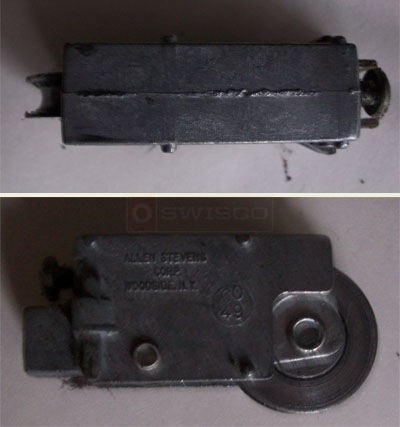

User submitted photo of allen stevnes rollers.

Tom from SWISCO

Jun 27, 2011 9:42 am

Thanks for posting.

Take a look at the 81-005 Sliding Door Roller.

Contractor from Jeffersonville Pa.

Jul 28, 2011 10:22 am

The adjusting screw of the 81-005 is shielded,
by the housing, the 6047 adjustment is outside
the housing. So will the 81-005 bolt up as an exact replacement without any modification?
Thank You
Joe

Dave Sr. from SWISCO

Jul 28, 2011 12:45 pm

Joe, the 81-005 is the newer replacement for the roller. I have used it as a replacement in Air Master and Moss doors without any problem.

Contractor from Burlington, Ma.

Feb 19, 2012 11:41 am

It looks to that your product #81-005 may be a match for the door I'm trying to repair, Ill sent a photo let me know what you think.
Thank you Lee

Description on the housing:

Allen Stevens Corp
Woodside NY
60 49

Tom from SWISCO

Feb 20, 2012 1:26 pm

Thanks for posting, Lee. I have placed you in an existing discussion regarding this roller. As suggested above, please take a look at our 81-005 Sliding Door Roller and see what you think. Please make sure to match our dimensions to your hardware.
