replacement sliding patio door lock

Question

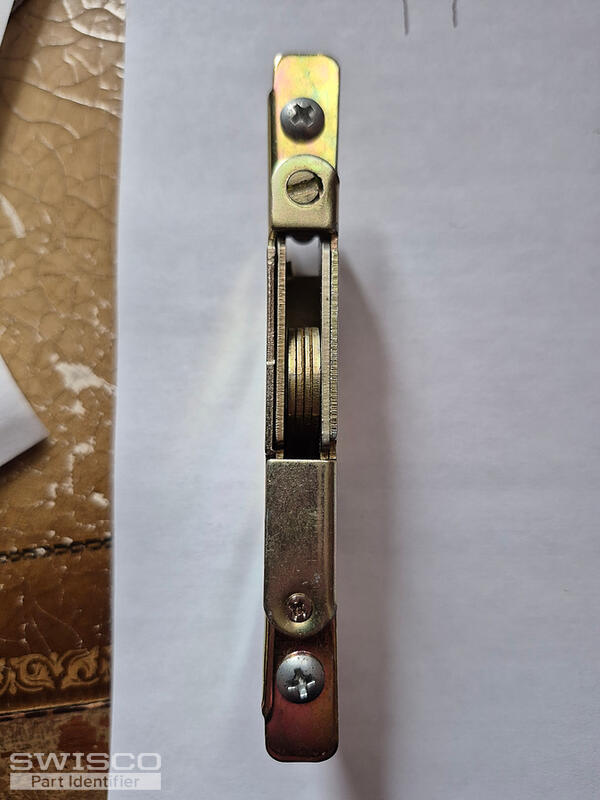

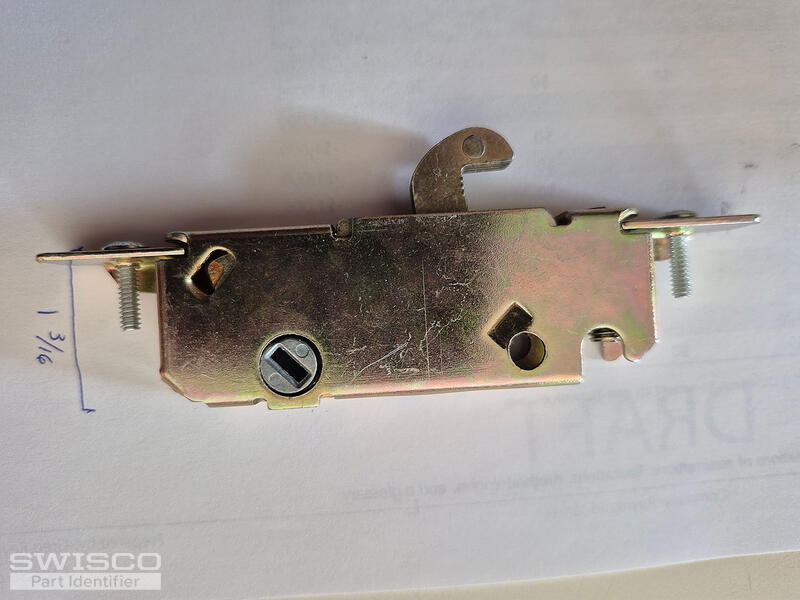

the door is a guardian sliding patio door but I could not find any markings to indicate a model.  from center to center of the lock attachment screws appears to be about 3 11/16 inches and the total height appears to be about 4 11/16 inches.  the depth appears to be 1 3/16 inches.  when the lock is engaged the hole in the lock appears to be at about the 1 or 2 o'clock position.  I have included the measurements in the attached photos.

Casey · Accepted Answer

Hello,

Your mortise lock looks like a match to the 82-218 with a 45-degree keyway slot. We'll include the specifications from our product page below. Take a look and let us know if you need anything else. Thanks for posting!

Profile view of 82-218

Opposite side view 82-218
