replacement tilt latches

Landlord from Colorado Springs

Jan 22, 2022 1:10 am

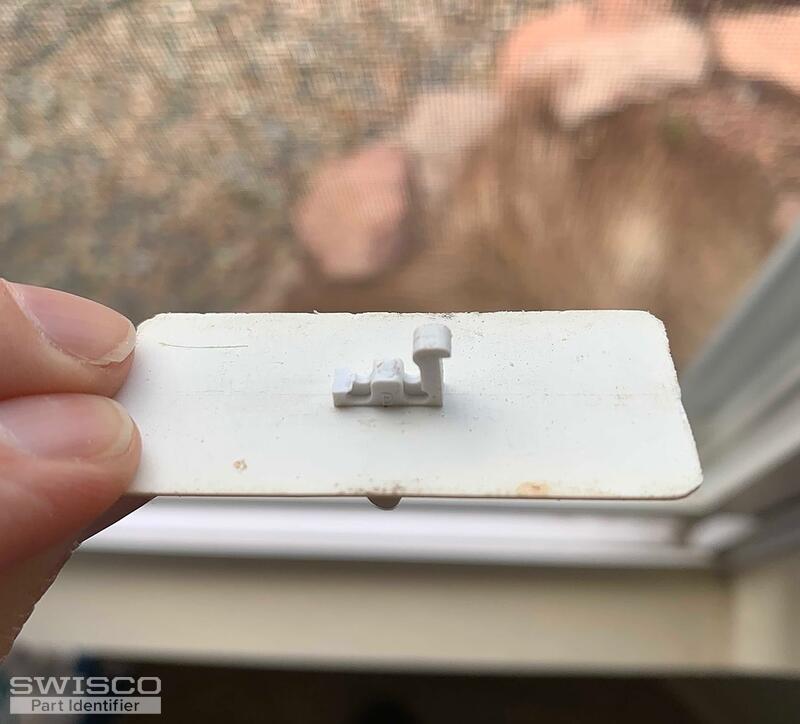

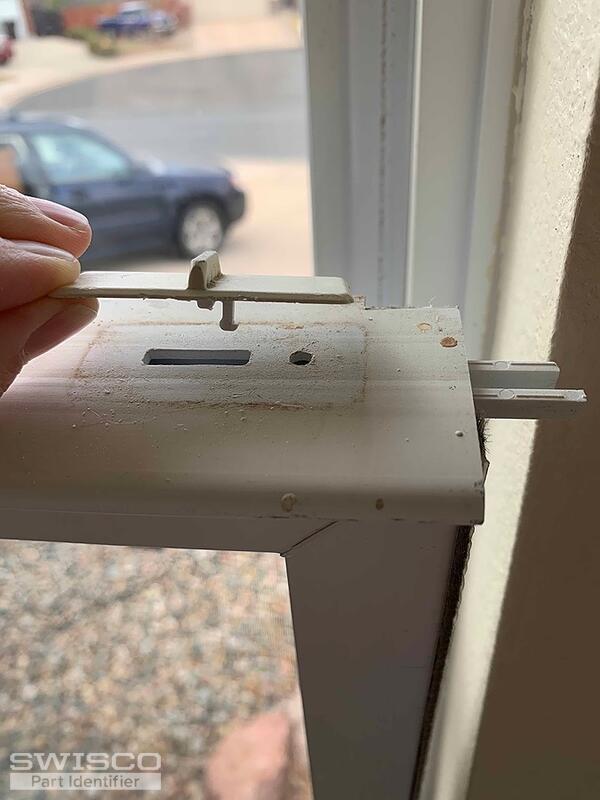

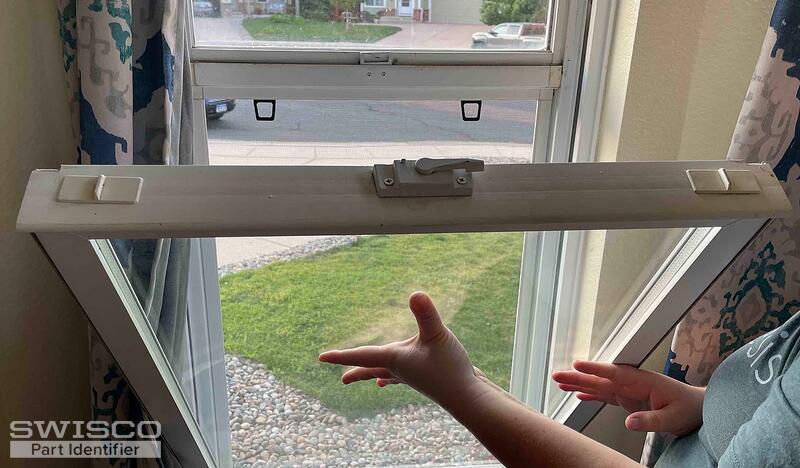

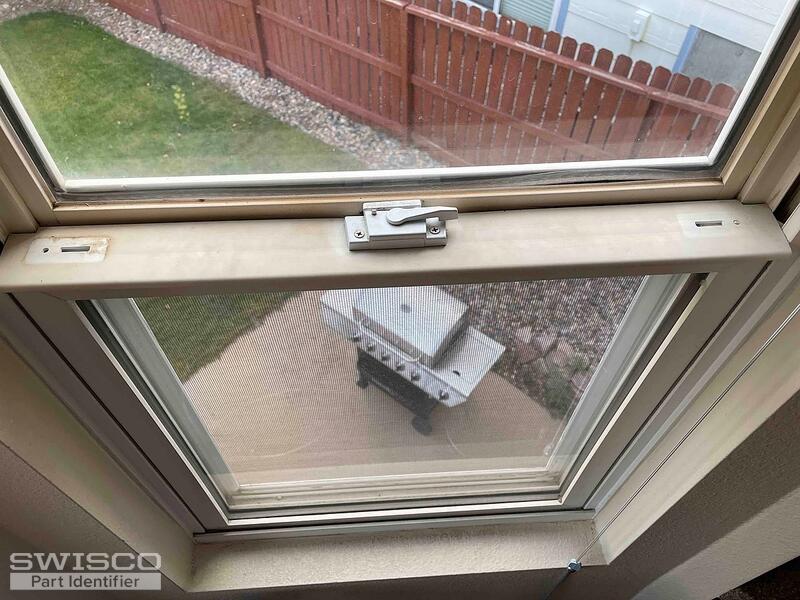

Need replacement tilt latches for the window(s) pictures. No identifiable markings on the window. Thanks for any ideas. I really appreciate it.

5 user uploaded images

4 Replies

Tom from SWISCO

Jan 25, 2022 1:21 pm

We may be able to supply this latch, but before I recommend anything I would like you to tell me the distance between the two prongs on the underside, as well as the overall width of both prongs. One of your prongs seems to have broken off so you may need to get an undamaged sample for an accurate size.

Landlord from Colorado Springs

Jan 29, 2022 8:35 pm

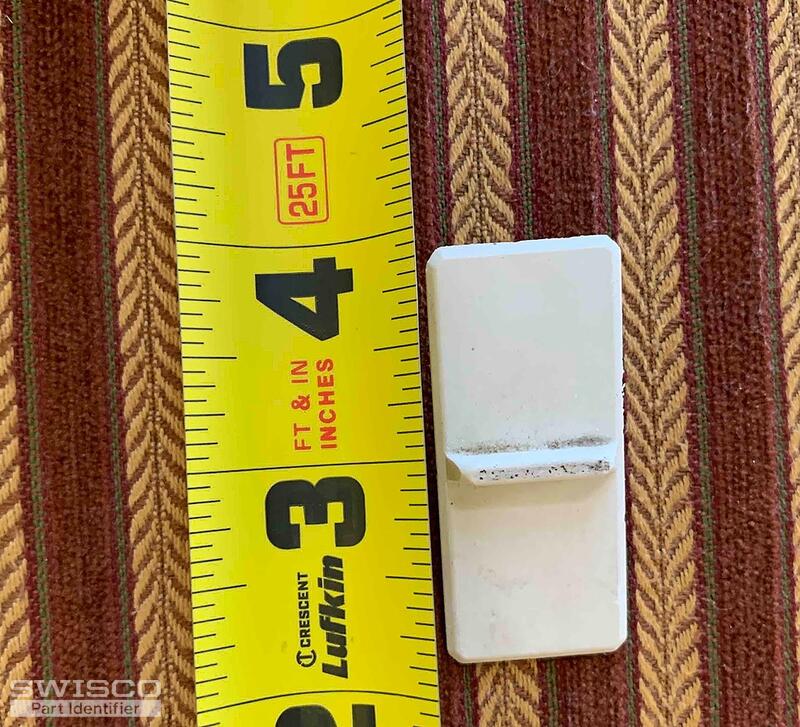

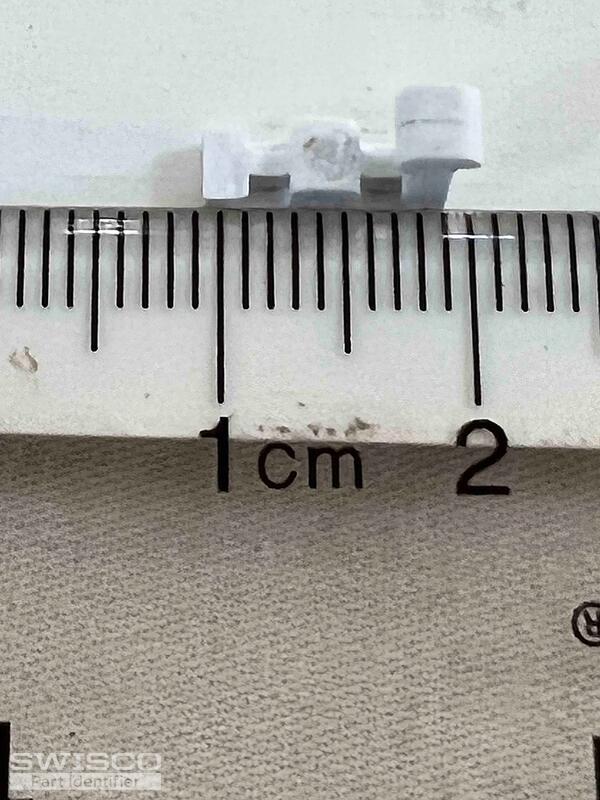

Hi Tom, thanks for taking a look at these latches for us. From the new photo I uploaded, it looks like the distance between the prongs is around 8mm (center to center). If you need inner edge to inner edge, that looks more like 6mm. Width of the prongs is around 2.5-3mm. Thanks again, Chad

1 user uploaded image

Bob from SWISCO

Jan 31, 2022 9:20 am

Welcome back. I am afraid we don't have an exact match for these prongs. I think you might be better off seeing if you could convert to surface-mount tilt latches like our 26-228 and 26-229. The video below shows how to do this. Take a look and let me know if you think this could work for you.
