replacement window coil springs id needed

Handy Person from Burlingame CA
Hi I have a vinyl Viking double hung window that needs two balance coil springs for the upper sash. The window size is 30 X 41 with double glazed frosted glass. I removed the parts and on the coil I could see it is etched with a large 7 then a smaller 37w at the end of the spring. Could you please tell me what spring I need for replacement. I also included pictures of the window sliders and the hinge mechanism. If you could Identify what type of hinge replacement I might need and if you have them incase they break in the future. Thank you for your assistance.


Brian C

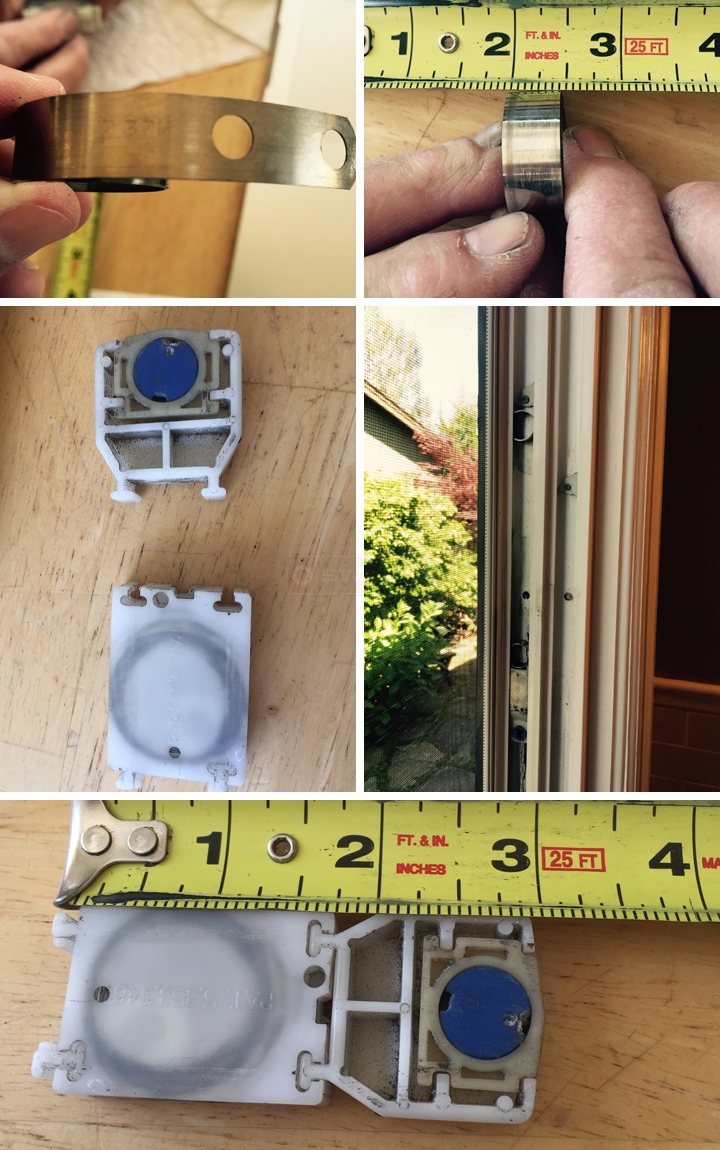

User submitted photos of a coil window balance.
4 Replies
Paul
Paul from SWISCO
SWISCO
Expert
You have the older model of our Series 180 coil balance system. Check it out and let me know what you think.
Handy Person from Burlingame
That looks like it. Only question is what weight do I get?

Thanks
Paul
Paul from SWISCO
SWISCO
Expert
Based on the stamp printed on your coil spring, I would recommend the S180-7.
