replacements needed

A quick learner from Crystal Lake, IL says:
Balances on vinyl windows in our shamrock mobile home are breaking need replacement hardware
Thumbnail of the uploaded file named P1010001.JPG
Thumbnail of the uploaded file named P1010002.JPG
Thumbnail of the uploaded file named P1010003.JPG.png

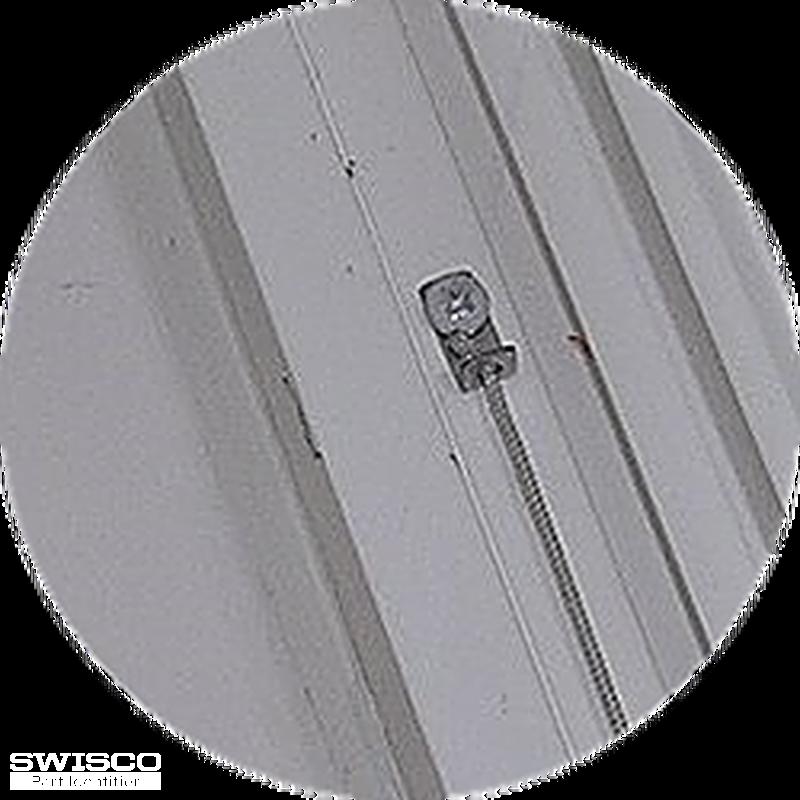

Thumbnail of the uploaded file named top cord clip.JPG.png
Profile picture of Bob
Bob from SWISCO responded:

Thanks for writing in. We can replace this old rod balance with a more modern channel balance; but to know which one, we need to see whatever attachment, fitting, shoe, or hook is at the bottom of the balance. From there, we should be able to ID a proper replacement.

A home owner from Frankfort Il. says:

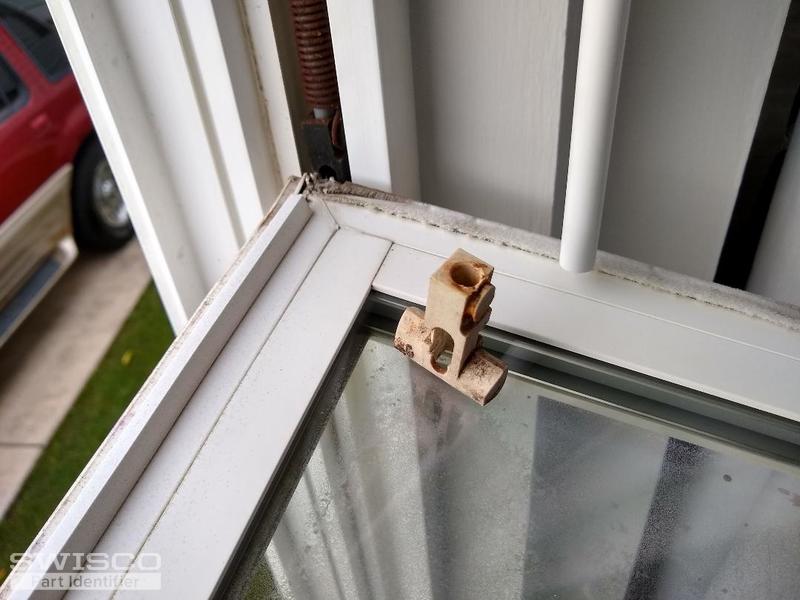

Have Shamrock Mobile home windows. Block& tackle window balancers 0n rod. Ends break off. Can you replace end fittings ? or new balancers, 32 inch long, I can send pictures by text to your phone.
Thumbnail of the uploaded file named thumbnail[1].jpg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for the reply. This old crossbow balance is no longer available, but you should be able to use the S795-32 Channel Balance as a replacement. See the video below for details. For the windows that have the black t-Shoe, use spring weight 32B for a sash weighing 14 through 20 lbs. For the white T-Shoe, use a stamp option of 32C for a sash weighing 20 through 25 lbs. You will also need to replace the pivot bar with our 26-021. Let me know if you have any other questions.

How to Convert a Crossbow Balance to a Channel Balance
How to Convert a Crossbow Balance to a Channel Balance
VIDEO
WATCH >
How to Replace Damaged Pivot bars
How to Replace Damaged Pivot bars
VIDEO
WATCH >
Removing Rusted Pivot Bars
Removing Rusted Pivot Bars
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
How to Install a T-Lock Shoe on a Channel Balance
How to Install a T-Lock Shoe on a Channel Balance
VIDEO
WATCH >
How to install the 26-200 Screw Plug
How to install the 26-200 Screw Plug
VIDEO
WATCH >
Modifying the Series 795 Balance
Modifying the Series 795 Balance
GUIDE
READ >
