replacing four (4) 31in channel balances (9/16in)

Question

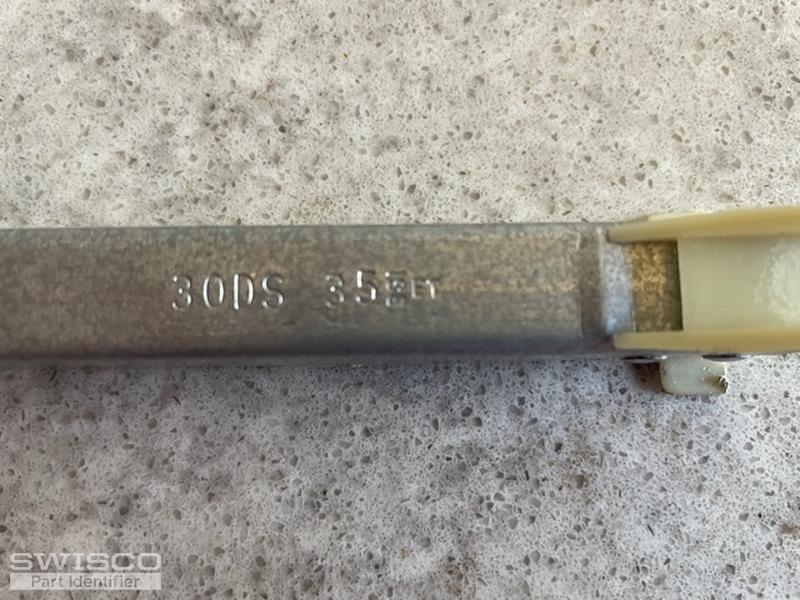

I need to replace four (4) 31in. channel balances (9/16in) for my non-tilt sash windows. The stamped code reads as 30DS 35. I am assuming the 35 represents the sash weight which seems about right.

Please could you verify which of 3030 or 3040 would be best to select when ordering. I do not have scales to check.

The sashes are double-glazed hurricane resistant.

Thanks for your attention.

Casey · Accepted Answer

Hello,

It looks like both the top and bottom attachments on your balance have wings. If so, you could have either an S380-31 or S385-31 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. For a 35-pound window sash, you would need 3060 spring strength options for your replacement balances.

That being said, I would recommend weighing your sash to confirm the correct option. There is a chart on the balance product page that explains how to choose your option based on the sash weight.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
