replacing two window channel balances and base

A home owner from NH says:
May 3, 2018

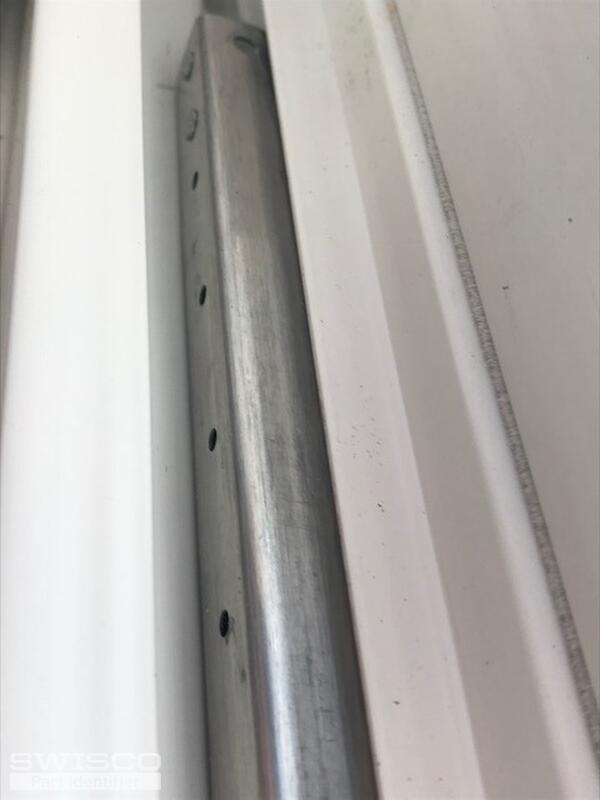

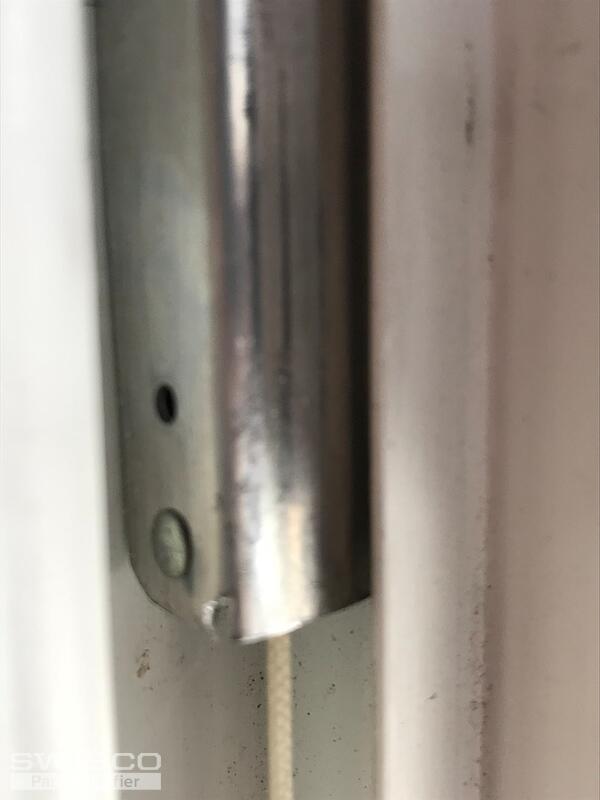

The numbers on the channel are 2520 . BS! GL
Thumbnail of the uploaded file named IMG_0626.JPG
Thumbnail of the uploaded file named IMG_0625.JPG
Thumbnail of the uploaded file named IMG_0624.JPG
Thumbnail of the uploaded file named IMG_0623.jpg
Thumbnail of the uploaded file named IMG_0622.JPG
Profile picture of Tom
Tom from SWISCO responded:
May 8, 2018

We can replace the channel balance for you, but I'm afraid we cannot replace the white vinyl cover. The balances will also have to be specially made. I will email you an order link and price quote for 2 right now. If you'd like more, please let me know here and I'd be happy to change it.
A home owner from New Hampshire says:
May 11, 2018

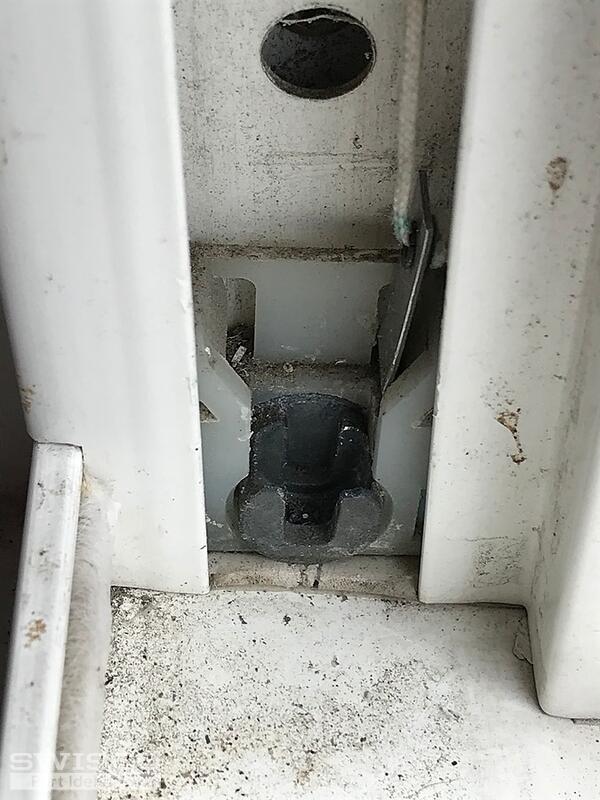

These two balances will be fine but I will need two pivot shoes as well. Can you add that to the other items and I will order these.

Thanks,

Chris

Thumbnail of the uploaded file named IMG_0621 (1).jpg
Profile picture of Tom
Tom from SWISCO responded:
May 14, 2018

Sure, that looks like our 15-208. Look it over and see what you think.
A quick learner from New Hampshire says:
May 19, 2018
I received the two new window channel balances and pivot shoes and replaced them. My problem is that the window is still not balanced by the new balances. The sash , although attached to the new channels and the pivot shoes drops quickly with a dangerous thud to the bottom when I try to keep it open. Am I missing something?

Chris George
Profile picture of Tom
Tom from SWISCO responded:
May 21, 2018

Can you tell me the weight of your sash? We based the spring strength on the stamp you gave us, 2520, which carries a sash weight of 9 through 15 pounds.
