replacing window balance

Question

Hello. I'm trying to replace window balance and think this is a 380 series. Last time I tried to narrow it down, I thought there were two options with bottom shoes which were almost the same size. The bottom shoe wings seem to be 8-9/16th of an inch.

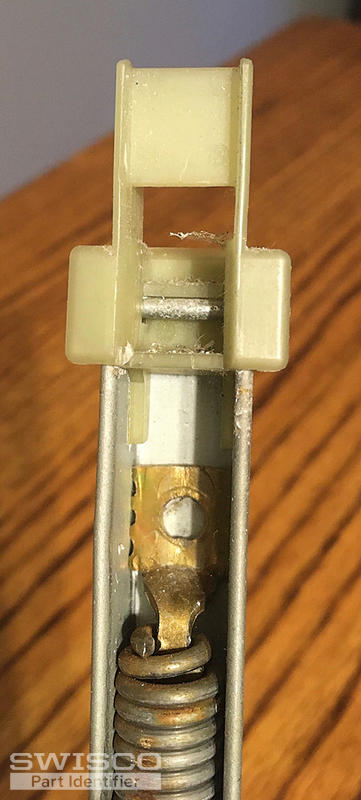

The channel is 15" long. Both the top and bottom shoes have wings. There is an ink stamp which says "4 9 26# LO CALDWELL". Thanks for your help.

Casey · Accepted Answer

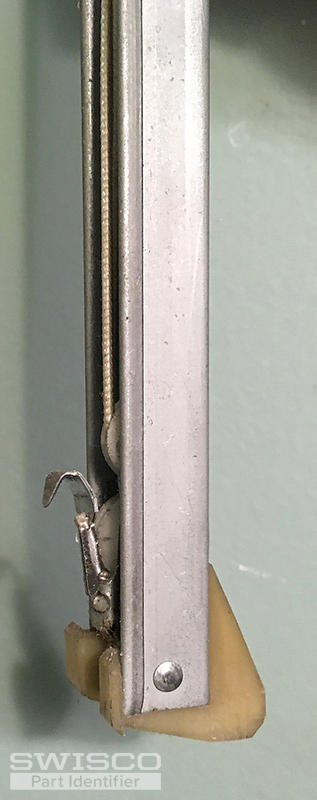

With this combination of attachments, you could have either an S380-15 or S385-15 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need to weigh your sash to determine which option you'll need. There is a chart on the product page that explains how to choose your option based on the sash weight.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
