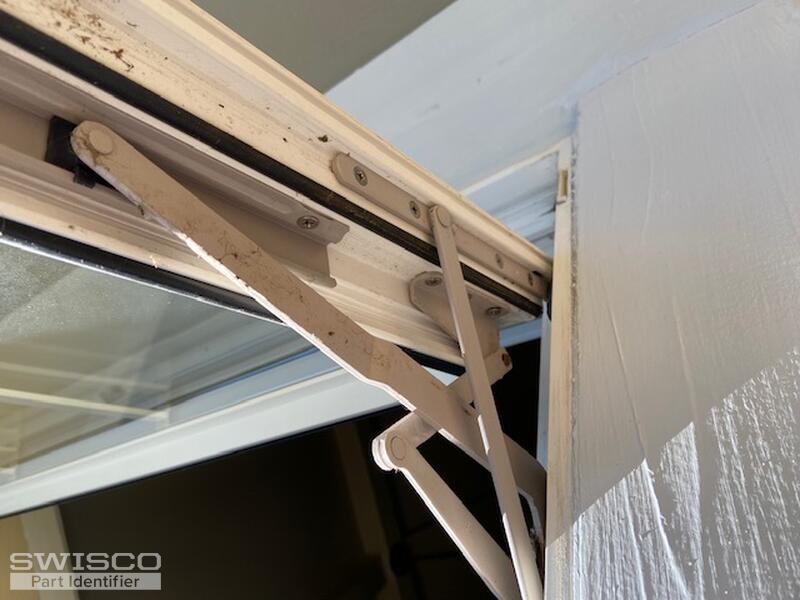

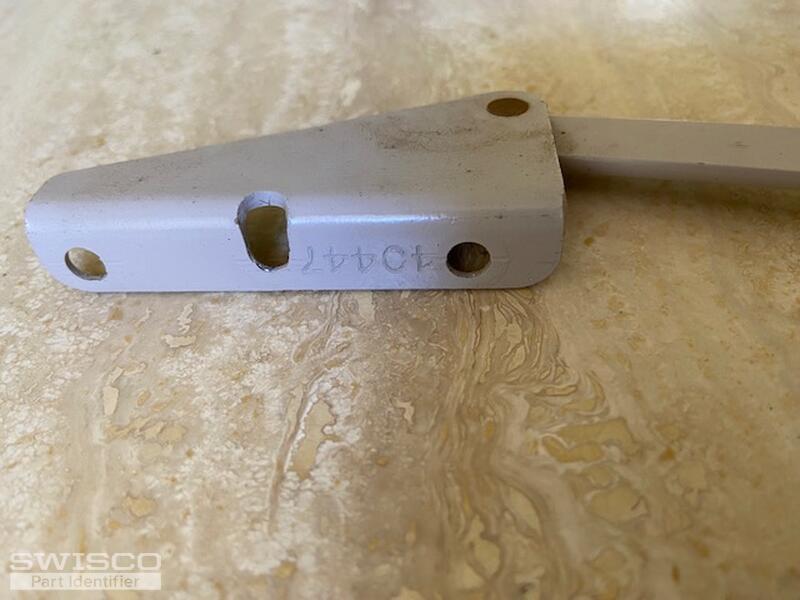

I am trying to replace the cranks in my windows. You guys were very helpful trying to identify the parts. I did not compleate the job as I have so many projects on this new/old house I moved into. I think the parts I bought are not the right ones. I was able to pull the whole thing out and see there is an extra arm part 40447
I also do not see all my history in my account?
Any help would be great!
replacment
Quick Learner from Boonville, CA
Apr 15, 2023 5:28 pm
3 user uploaded images
4 Replies
Jasmine from SWISCO
Apr 18, 2023 11:21 am
Your casement operator looks a lot like our 39-253RB. Take a look at the dimensions and compare them your existing operator to confirm that this is the right replacement.
Dimensions for 39-253RB
The compatible cover and handle set is part 39-376. The bracket connected to the end of the operator resembles our 39-545. I've attached the other pieces of compatible hardware to this thread as well. Let me know if the measurements above are not a match.
Quick Learner from Boonville, CA
Apr 19, 2023 9:20 am
Yes, that is the one I have. I have 3 right and 3 left. Do I need to buy the covers and Snap-Stud Brackets or can those parts be removed and reinstalled?
Jasmine from SWISCO
Apr 19, 2023 11:56 am

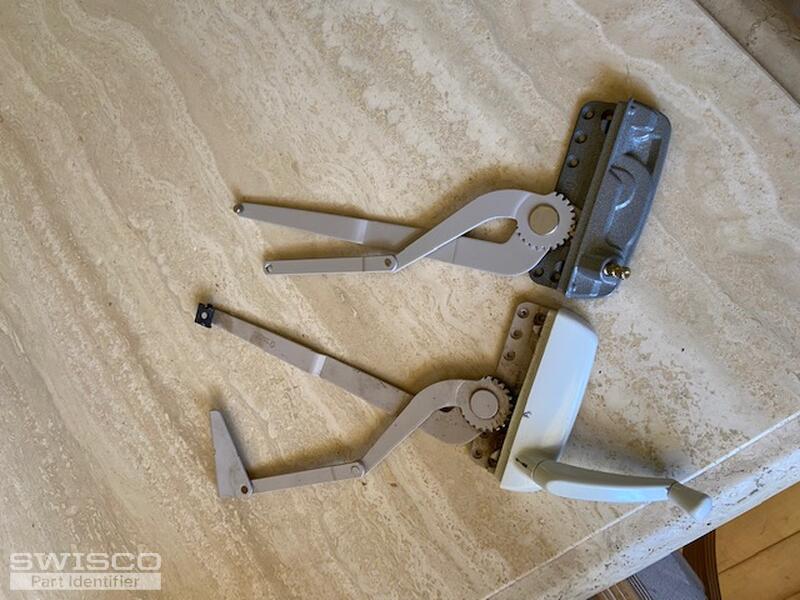

That will depend on the operator you are looking to replace. For example, the casement operator you have pictured on the left, it appears that the cover is not removable, only the handle is. However, the one on the right, it appears can use the removable cover and handle set.
You'll need to confirm which covers are removable before making your purchase.
