retainers needed for storm door

Home Owner from north
HI there...Unfortunately, there is no indication of the door manufacturer.

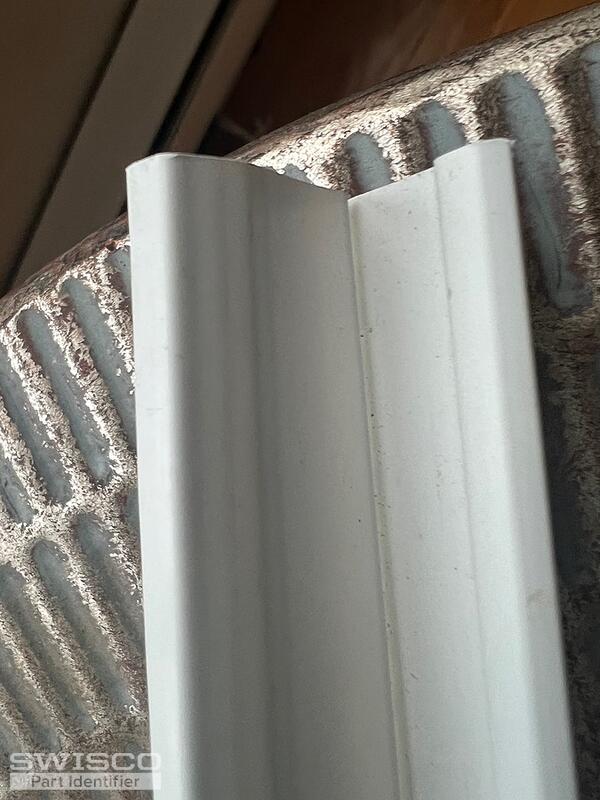

The first image is an example of the retainers in the door. It's the opposite side that is broken. image two and three are different angles of the strip I need.

Please advise if yoyu have them or if you have additional questions.

Thanks in advance!
3 user uploaded images
6 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hello there!

Thank you for reaching out to us. We're happy to look into this. Can you show us a clear shot of the end profile? I can't promise we'll have a suitable replacement but that should help us confirm.

Home Owner from north
Im not sure what you are asking as the photo is very clear. What exactly are you looking for?
Emily
Emily from SWISCO
SWISCO
Expert

You can use the photos on this page here as a reference. They show what would be the end profile angle which isn't shown in your initial batch of photos.

Home Owner from north
this piece snaps o\into the window. If I measure the back of each side they are 1"
1 user uploaded image
Dave Sr.
Dave Sr. from SWISCO
SWISCO
Expert

I'm afraid this photo doesn't show the end profile. You could consider something like our 70-180 storm door clip and drilling a hole for a 33-020 screw. However, we can't make any guarantees without seeing the end profile of the retainer. The 70-180 would need to be secured on the face of the door with a 33-020 screw. The end leg of the clip has a 1/2" reach and should press up against the screen or glass panel in the door holding it in place. I would suggest installing four or five on each side and maybe two at the top.
