right hand awning window crank

Start a new Discussion

Contractor from Toledo, Ohio

Dec 21, 2019 2:11 pm

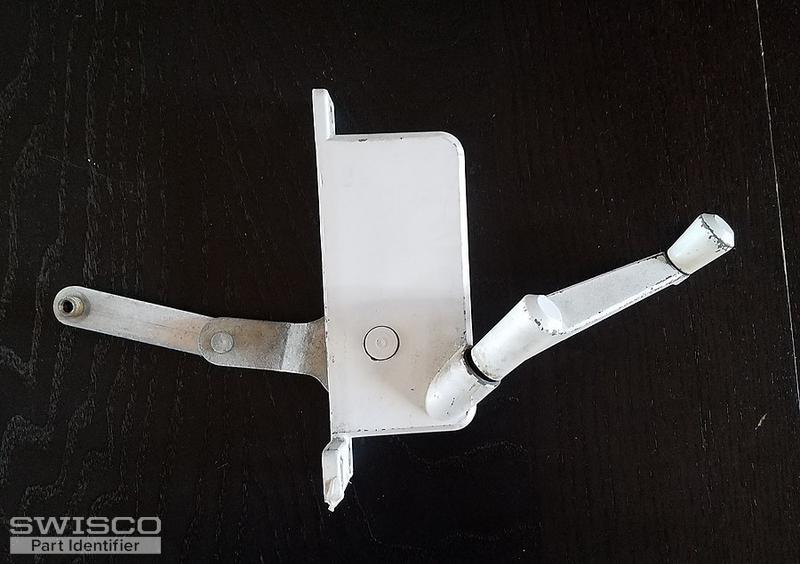

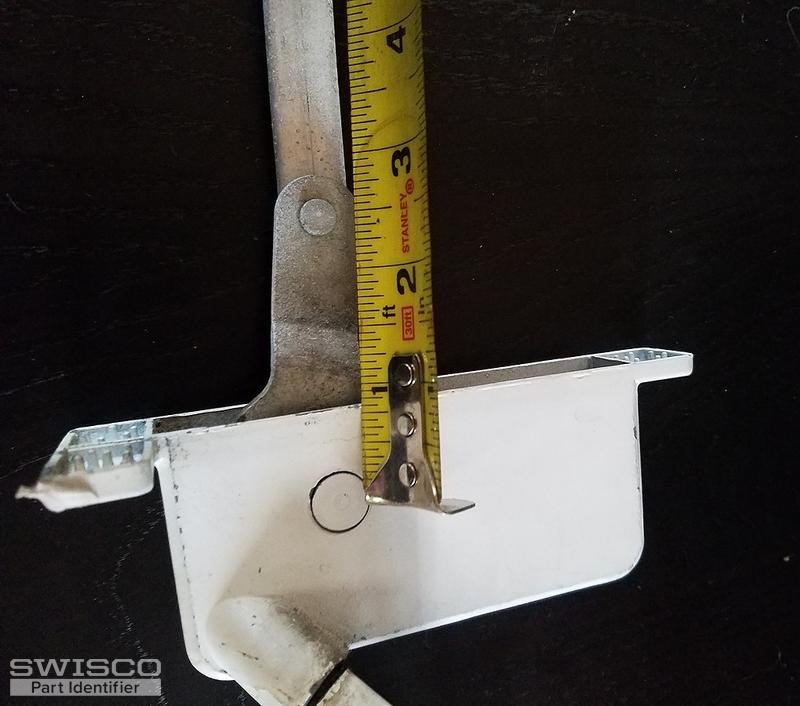

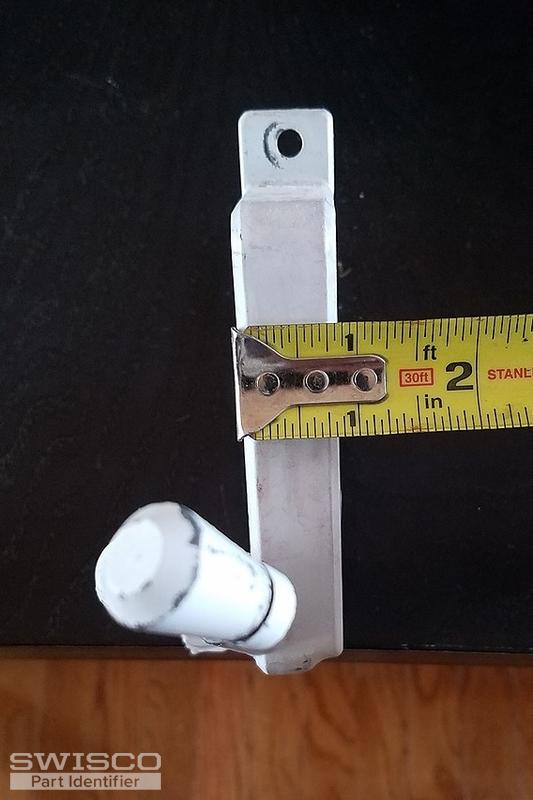

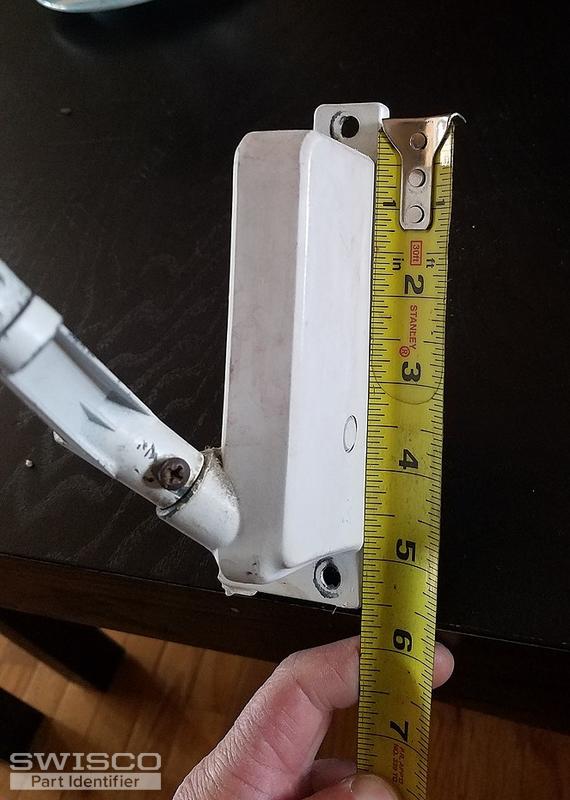

There are no names or numbers on the crank.

5 user uploaded images

6 Replies

Bob from SWISCO

Dec 26, 2019 10:07 am

Thanks for posting. Start by looking at our 39-025 and 39-026 Awning Operators. Carefully go over the dimensions and let me know if they match what you need. If not, let us know how the dimensions differ in any way.

Contractor from Toledo, Ohio

Dec 27, 2019 10:53 am

Thanks for the quick response. The link you sent me looks good except the arm length of my operator is 1/8th inch longer. Will that effect the operation of the opener.

Bob from SWISCO

Dec 27, 2019 11:55 am

Nope, I think you'll be okay. These are designed with a bit of play. The most important detail regarding the link arm is that ours uses a 10-24 bushing. As long as that matches up then you should be good to go.

Contractor from Toledo, Ohio

Dec 27, 2019 12:22 pm

Perfect. How do I know if I have the 10-24 bushing?

Paul from SWISCO

Dec 30, 2019 10:38 am

Good question. Like both our 39-025 and 39-026 operators, your current operator has a 10-24 threaded bushing and attaching screw for the window link. Does that help answer your question? Let us know.
