roller assyembly

Home Owner from port ludlow wa
Aug 14, 2024 3:42 pm
roller diameter 15.65mm
roller width 4.8mm
flat roller
base length 24.5mm
assembled roller height 20mm

not markings on windows over 20 YO
PXL_20240814_193021029
1 user uploaded images
1 Replies
+ Add a Comment
Jasmine
Jasmine from SWISCO
Aug 15, 2024 3:26 pm
SWISCO
EXPERT

Hello,

Thanks for your inquiry! Your sliding roller assembly looks very close in style to the 87-106 window roller we have. with one huge difference. This roller is assembled using the 87-089 wheel, which does have dimensions very close to yours. That said, there is a possibility the 87-106 will work fine for your repairs.

Carefully double check the dimensions and see what you think! Ours are provided in inches.

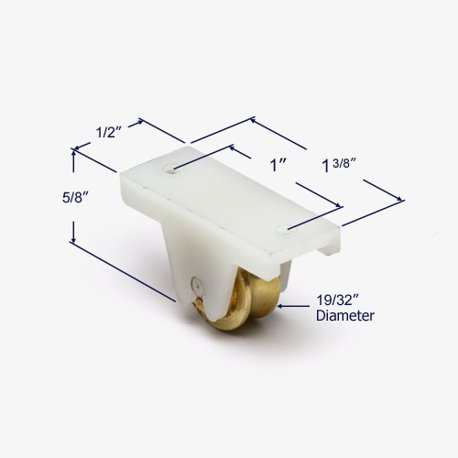

Alternate image for 87-106
Alternate image for 87-106

Profile view of 87-089
Profile view of 87-089

Side view of 87-089
Side view of 87-089

+ Add a Comment
Products and resources found in this discussion
Replacement Brass Wheel & SS Axle
Replacement Brass Wheel & SS Axle
87-089
$4.56
Sliding Window Roller, Concave Wheel
Sliding Window Roller, Concave Wheel
87-106
$6.51
