roller door part with 2 steel wheels
Home Owner from Clearwater fl
Jul 5, 2024 9:56 am

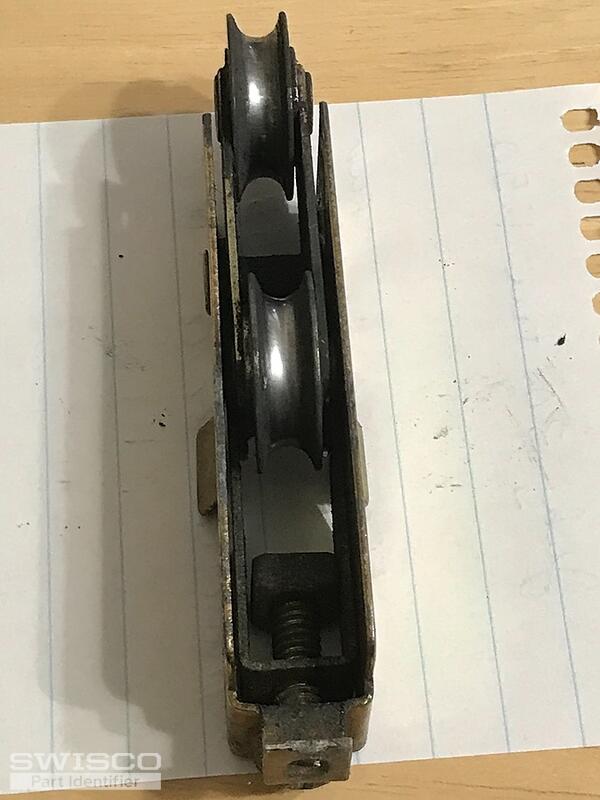

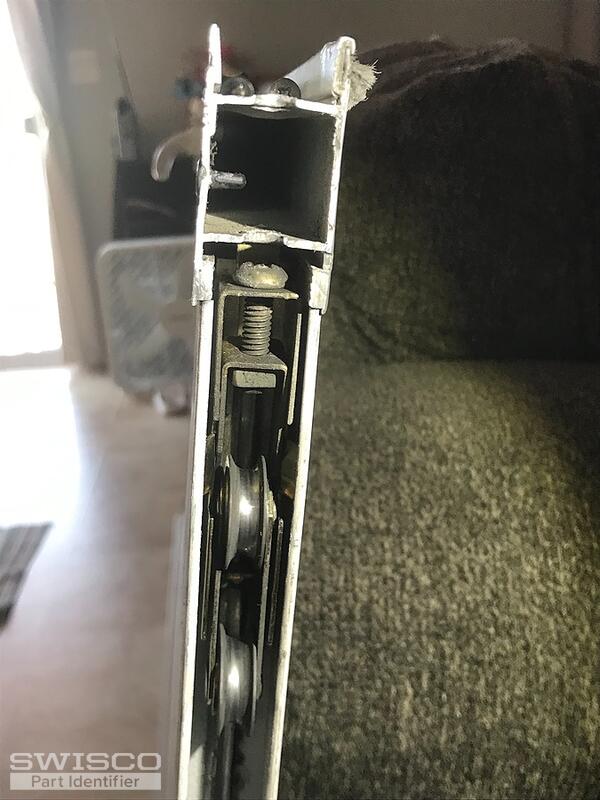

On each part 02 is found on wheel assembly.Frame width 1 inch,Length 3-1/8 wheel 1 inch
5 user uploaded images
3 Replies
Home Owner from Clearwater fl
Jul 5, 2024 10:00 am
The home is 9 years old these are the original parts. When I removed them there was a lot of gunk on parts and I have had to adjust the door in the past. Do you think the original wheel was 1-14 inch and has worn down over time?
Emily from SWISCO
Jul 8, 2024 1:48 pm
Hi there!
The 81-176 roller assembly resembles what you have here. The screw tab is in a different orientation but we don't see why you couldn't bend it into the needed position with pliers. However, the roller wheel for this is 1-1/4" and we have doubts your old roller wheel worn down to 1" over time.
The 81-176 might be able to be adjusted to make up the wheel difference but you're cutting it close so we can't make any promises. With that said, you could see if you can reuse your old wheels with our roller and the 81-310 axle repair kit.
Alternate image for 81-176
