roto operador

Quick Learner from Araucania
Hola necesito unos roto operador para remplazo, son antiguos de ano 2000 te envio numero de partes:

AB Izq. 4.241.541 Marca Verdad hijo 8

AB Der. hijo 4

AB Proyeccion N? Part. 4505601 son 8

Entry Gard serie 15

espero que me puedan ayudar gracias saludos
4 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

The awning operator shown in your first two photos resembles the 39-348, which uses the 36-078 shoe stud. Take a look and compare the specifications below to confirm it's a match.

detail of 39-348
detail of 39-348

Dimensions for 36-078
Dimensions for 36-078

Dimensions for 36-078
Dimensions for 36-078

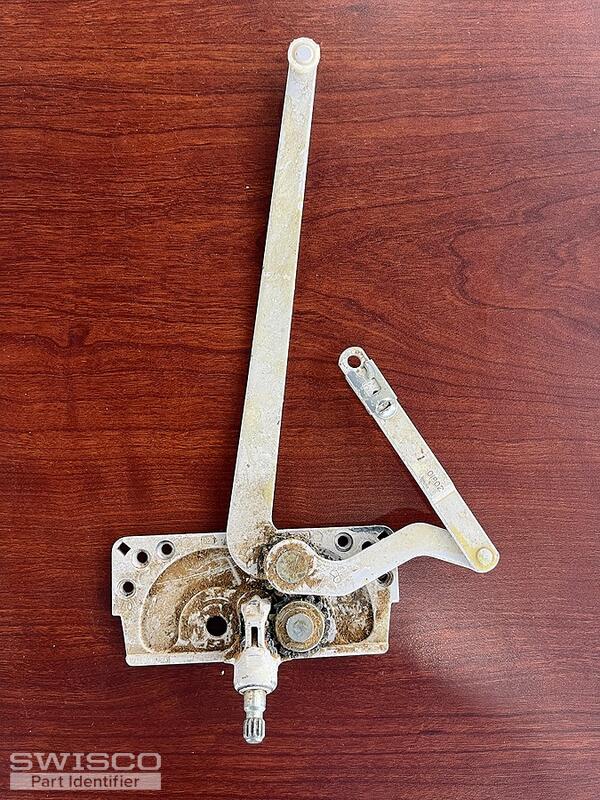

Your last photo reminds me of the 39-031 and 39-032 Entrygard operators. Note that the shorter link arm measures 4-7/16" as shown below, which is not visible in your photos. We also offer the 39-107FK handle and cover kit for these casement operators. Thanks for posting!

Dimensions for 39-032
Dimensions for 39-032
