sash guide referall

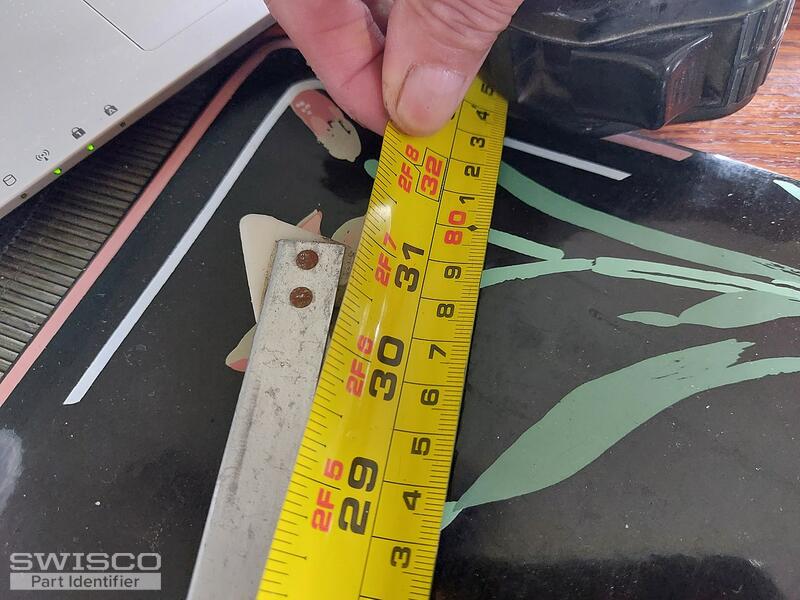

Thanks for your post! The window balance you have here can be replaced with either the S351-31 or the S390-31. To determine the correct balance, you'll need to measurement depth of the shoe.

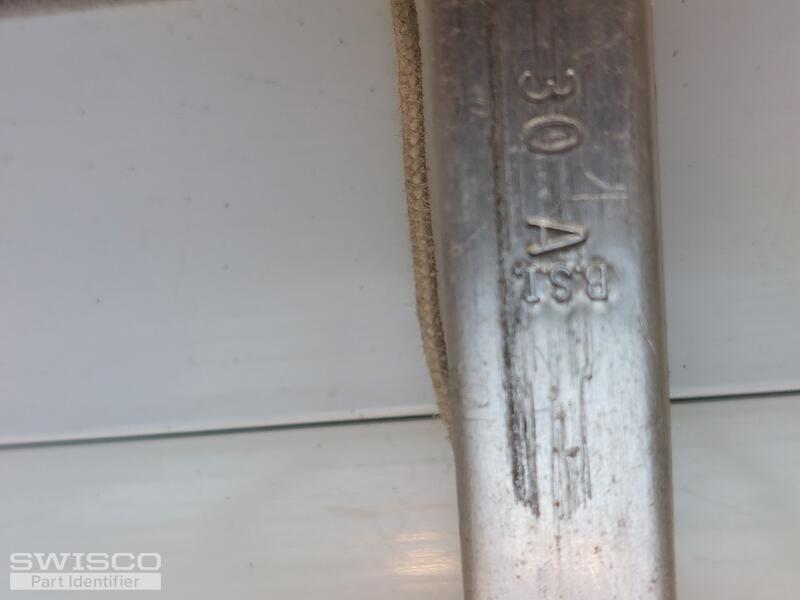

For your 30A stamp, I suggest the 3010 option (supports 7 to 12lbs) and for the 30B stamp, the 3020 option (supports 12 to 16lbs). Although, you may want to double check that your sashes fall between those weight ranges.

Comparison of the S351 and S390 balance shoes.
