screen corner inquiry

A quick learner says:
March 13, 2023

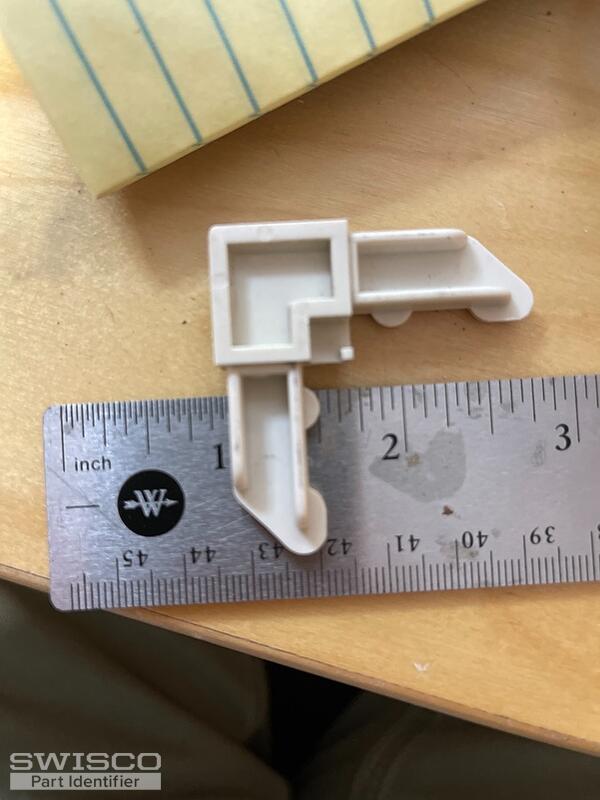

I need a screen corner replacement as shown on the images in the attachment.
Thumbnail of the uploaded file named image_123927839 (3).JPG
Thumbnail of the uploaded file named image_123927839 (2).JPG
Thumbnail of the uploaded file named image_123927839 (1).JPG
Thumbnail of the uploaded file named image_123927839.JPG
Profile picture of Casey
Casey from SWISCO responded:
March 14, 2023

Hello,

We'd be happy to look into this for you but we'll need you to write out the exact thickness of the opening in the screen frame where the corner installs to narrow down your replacement options. Thank you!
A quick learner from Wisconsin says:
March 15, 2023
This should give you all the info you need. Please let me know

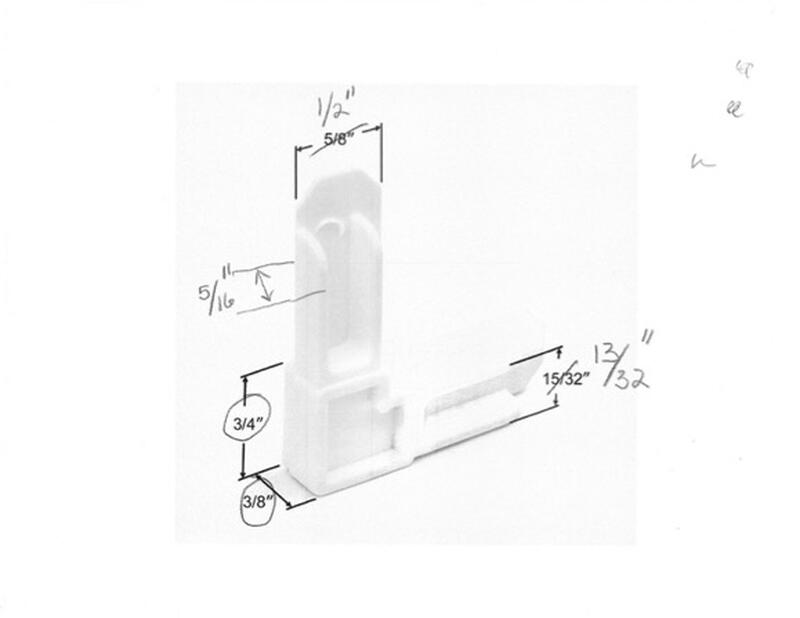

Thumbnail of the uploaded file named 85574AE6-49DF-4E6B-8C65-08EDD189EC53.jpeg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
March 16, 2023

Thanks for getting back to us. We have recommended the 95-034 corner as a possible replacement to past customers with similar parts to yours. Review the specifications below and let us know if you have any other questions.

Alternate image for 95-034
Alternate image for 95-034

Alternate view of 95-034
Alternate view of 95-034
A quick learner from Wisconsin says:
March 21, 2023

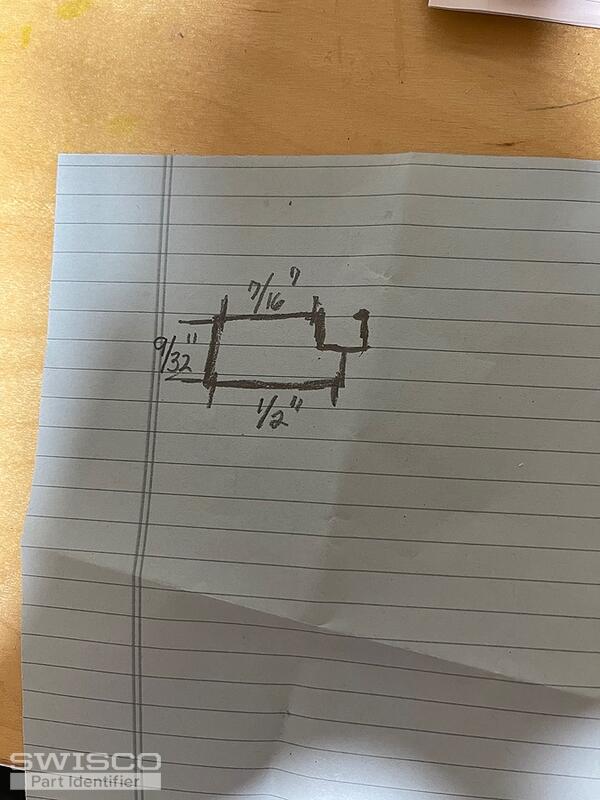

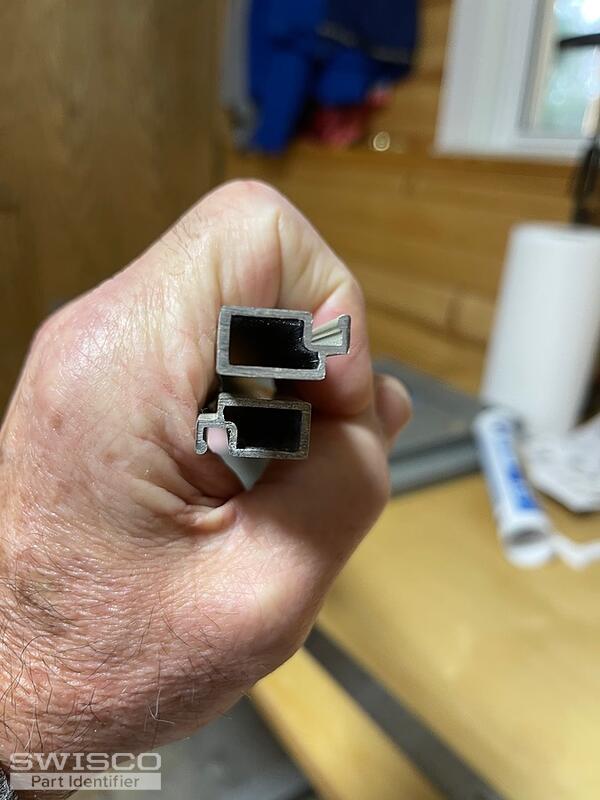

The 9/16 measurement will not work. My frame is 1/16 smaller. I have add some measurements and pics. Thanks for your help.
Thumbnail of the uploaded file named 45D4210E-4588-48B7-8D63-38D4B45490C5.jpeg
Thumbnail of the uploaded file named 7CA227DD-7CE0-4101-9D3F-042B79F9C5AE.jpeg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
March 21, 2023

Take a look at the 95-275 corner key to see if this would be a better match. Please note that these are the only two options that we carry that are similar to your part.

Dimensions for 95-275
Dimensions for 95-275
3/4" x 3/8" Outside Screen Frame Corner, White
3/4" x 3/8" Outside Screen Frame Corner, White
95-034
$0.47
3/8" Square Cut Corner
3/8" Square Cut Corner
95-275
$0.70
